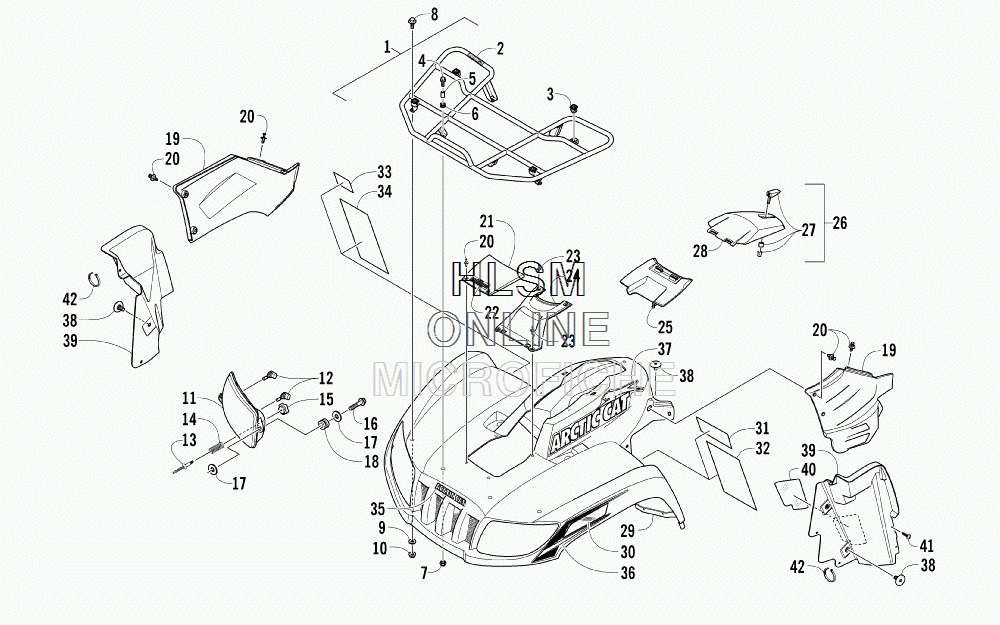

FRONT RACK- BODY PANEL- AND HEADLIGHT ASSEMBLIES для Arctic Cat Super Duty Diesel 700 4x4 [A2013TBT4DOSG] (INTERNATIONAL) - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    2506-106 RACK, FRONT - ASSEMBLY (INC. 2-3)
    RACK, FRONT - ASSEMBLY (INC. 2-3)
  • 2
    0411-576 ...DECAL, WARNING - LOAD
    ...DECAL, WARNING - LOAD
  • 3
    0441-592 ...BUSHING
    ...BUSHING
  • 4
    8410-830 SCREW, CAP
    SCREW, CAP
  • 5
    0423-669 SPACER
    SPACER
  • 6
    0423-465 GROMMET
    GROMMET
  • 7
    8432-802 NUT, LOCK
    NUT, LOCK
  • 8
    0423-654 SCREW, SHOULDER
    SCREW, SHOULDER
  • 9
    8050-222 WASHER
    WASHER
  • 10
    8427-602 NUT, LOCK
    NUT, LOCK
  • 11
    0509-044 HEADLIGHT ASSEMBLY - RIGHT (INC. 12)
    HEADLIGHT ASSEMBLY - RIGHT (INC. 12)
  • 11
    0509-035 HEADLIGHT ASSEMBLY - LEFT (INC. 12)
    HEADLIGHT ASSEMBLY - LEFT (INC. 12)
  • 12
    0409-055 ...BULB, HEADLIGHT
    ...BULB, HEADLIGHT
  • 13
    0423-514 STUD, ADJUSTER - HEADLIGHT
    STUD, ADJUSTER - HEADLIGHT
  • 14
    0423-522 SPRING, ADJUSTER
    SPRING, ADJUSTER
  • 15
    0423-513 KNOB, ADJUSTER
    KNOB, ADJUSTER
  • 16
    0623-785 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 17
    8050-217 WASHER
    WASHER
  • 18
    0423-447 GROMMET
    GROMMET
  • 19
    2406-404 PANEL, SIDE - LOWER - RIGHT
    PANEL, SIDE - LOWER - RIGHT
  • 19
    2406-405 PANEL, SIDE - LOWER - LEFT
    PANEL, SIDE - LOWER - LEFT
  • 20
    0423-535 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 21
    1406-358 COVER, ACCESS
    COVER, ACCESS
  • 22
    2411-520 DECAL, CAUTION - COOLANT
    DECAL, CAUTION - COOLANT
  • 23
    0623-362 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 24
    1406-484 COVER, STEERING POST
    COVER, STEERING POST
  • 25
    0470-513 COVER, FILTER ACCESS
    COVER, FILTER ACCESS
  • 26
    2506-234 LID, ACCESS W/LATCH (INC. 27-28)
    LID, ACCESS W/LATCH (INC. 27-28)
  • 27
    1406-599 ...LATCH, ACCESS LID
    ...LATCH, ACCESS LID
  • 28
    0470-514 ...LID, ACCESS
    ...LID, ACCESS
  • 29
    0518-074 PANEL, FENDER - ASSEMBLY - FRONT - GREEN (INC. 30-34)
    PANEL, FENDER - ASSEMBLY - FRONT - GREEN (INC. 30-34)
  • 30
    0411-818 ...DECAL, REFLECTOR - RIGHT - AMBER
    ...DECAL, REFLECTOR - RIGHT - AMBER
  • 30
    0411-819 ...DECAL, REFLECTOR - LEFT - AMBER
    ...DECAL, REFLECTOR - LEFT - AMBER
  • 31
    1411-574 ...DECAL, WARNING - OFF-ROAD ONLY
    ...DECAL, WARNING - OFF-ROAD ONLY
  • 32
    2411-259 ...DECAL, WARNING - GENERAL/AGE
    ...DECAL, WARNING - GENERAL/AGE
  • 33
    0411-894 ...DECAL, WARNING - TURN/HILL
    ...DECAL, WARNING - TURN/HILL
  • 34
    1411-490 ...DECAL, WARNING - REVERSE/PRE-RIDE
    ...DECAL, WARNING - REVERSE/PRE-RIDE
  • 35
    1411-725 DECAL, "ARCTIC CAT"
    DECAL, "ARCTIC CAT"
  • 36
    3411-046 DECAL, SIDE - FRONT RIGHT
    DECAL, SIDE - FRONT RIGHT
  • 36
    3411-047 DECAL, SIDE - FRONT LEFT
    DECAL, SIDE - FRONT LEFT
  • 37
    3411-034 DECAL, SIDE - UPPER RIGHT
    DECAL, SIDE - UPPER RIGHT
  • 37
    3411-035 DECAL, SIDE - UPPER LEFT
    DECAL, SIDE - UPPER LEFT
  • 38
    0423-101 SCREW, SHOULDER
    SCREW, SHOULDER
  • 39
    2506-434 PANEL, SPLASH - RIGHT
    PANEL, SPLASH - RIGHT
  • 39
    2506-383 PANEL, SPLASH - LEFT (INC. 40)
    PANEL, SPLASH - LEFT (INC. 40)
  • 40
    0412-404 ...FOIL, PROTECTIVE
    ...FOIL, PROTECTIVE
  • 41
    0423-719 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 42
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
