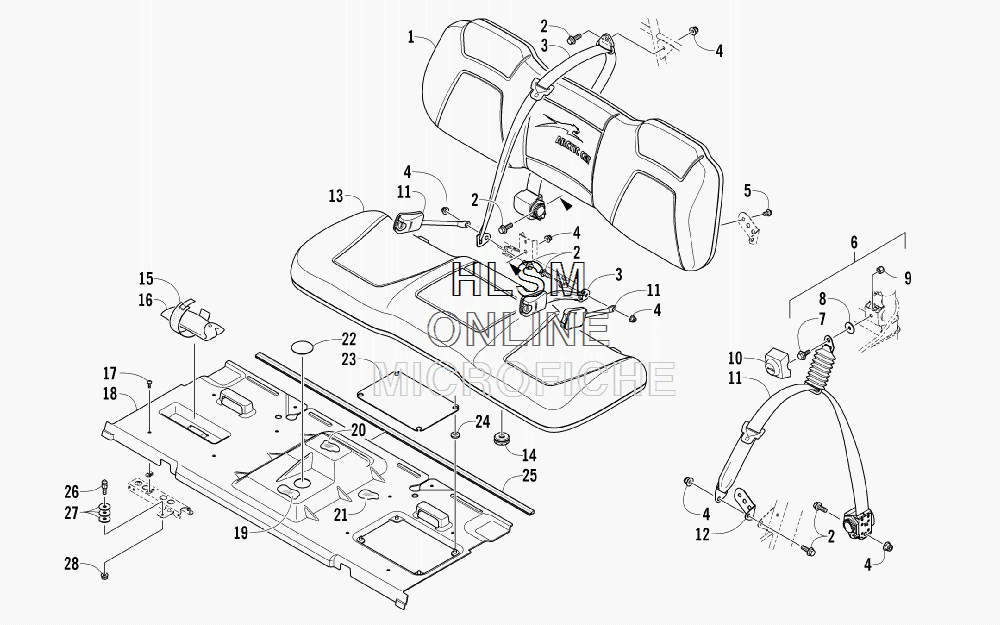

SEAT ASSEMBLY для Arctic Cat Prowler 700 HDX 4x4 - METALLIC GREEN [U2013P5T1PUSN] - 2013 года выпуска

  • №
    Артикул
    Название
  • 1
    2516-897 BACKREST ASSEMBLY
    BACKREST ASSEMBLY
  • 2
    1423-182 SCREW, CAP
    SCREW, CAP
  • 3
    5506-195 BELT, SEAT - 3 POINT
    BELT, SEAT - 3 POINT
  • 4
    1423-184 NUT, LOCK
    NUT, LOCK
  • 5
    8408-820 SCREW, CAP
    SCREW, CAP
  • 6
    0423-915 SHOULDER SCREW ASSEMBLY (INC. 7-9)
    SHOULDER SCREW ASSEMBLY (INC. 7-9)
  • 10
    2416-638 COVER, SEAT BELT
    COVER, SEAT BELT
  • 11
    5506-159 BELT, SEAT
    BELT, SEAT
  • 12
    2516-868 BRACKET, BACKREST SUPPORT - RIGHT (BLACK)
    BRACKET, BACKREST SUPPORT - RIGHT (BLACK)
  • 12
    2516-869 BRACKET, BACKREST SUPPORT - LEFT (BLACK)
    BRACKET, BACKREST SUPPORT - LEFT (BLACK)
  • 13
    2516-898 SEAT ASSEMBLY (INC. 14)
    SEAT ASSEMBLY (INC. 14)
  • 14
    1423-066 ...GROMMET
    ...GROMMET
  • 15
    0707-582 RETAINER, TOOLKIT
    RETAINER, TOOLKIT
  • 16
    2516-863 KIT, TOOL
    KIT, TOOL
  • 17
    8477-620 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    2416-457 BASE, SEAT
    BASE, SEAT
  • 19
    0412-583 FOIL, PROTECTIVE-SEATBASE (A)
    FOIL, PROTECTIVE-SEATBASE (A)
  • 20
    0412-584 FOIL, PROTECTIVE-SEATBASE (B)
    FOIL, PROTECTIVE-SEATBASE (B)
  • 21
    0412-585 FOIL, PROTECTIVE-SEATBASE (C)
    FOIL, PROTECTIVE-SEATBASE (C)
  • 22
    0623-600 PLUG
    PLUG
  • 23
    2416-491 COVER, ACCESS
    COVER, ACCESS
  • 24
    1623-156 GROMMET
    GROMMET
  • 25
    2406-915 SEAL, CARGO BOX
    SEAL, CARGO BOX
  • 26
    0423-559 STUD, LATCH - SEAT
    STUD, LATCH - SEAT
  • 27
    0423-073 WASHER
    WASHER
  • 28
    8424-002 NUT
    NUT
