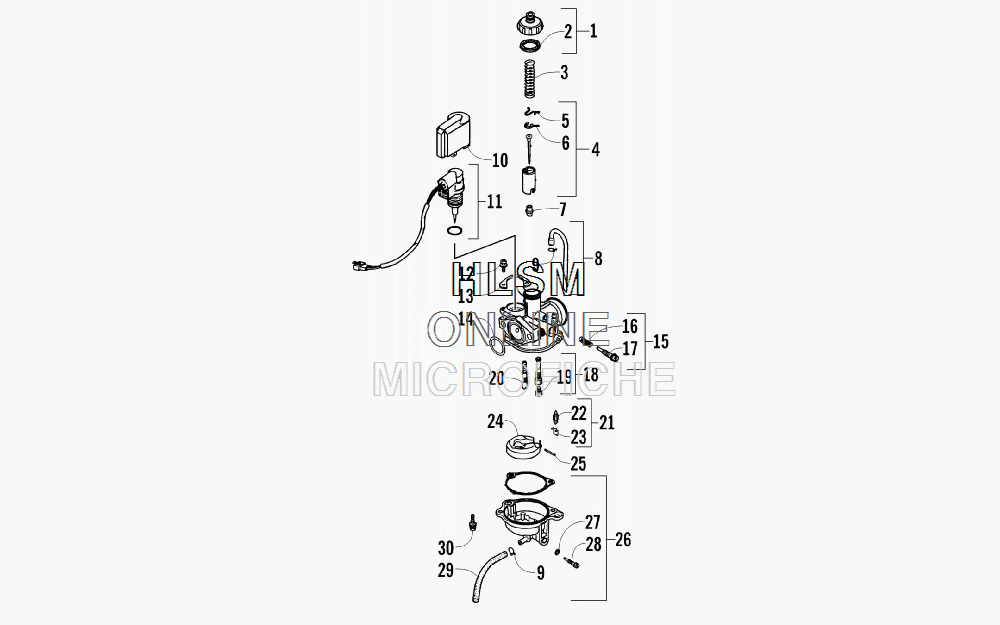

CARBURETOR ASSEMBLY для Arctic Cat 90 2x4 [A2013KUB2BUSZ] - 2013 года выпуска

  • №
    Артикул
    Название
  • -
    3306-433 COMPLETE CARBURETOR ASSEMBLY
    COMPLETE CARBURETOR ASSEMBLY
  • 1
    3304-462 SET, TOP (INC. 2)
    SET, TOP (INC. 2)
  • 2
    3304-463 ...TOP GASKET
    ...TOP GASKET
  • 3
    3304-464 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 4
    3304-467 VALVE, THROTTLE - ASSEMBLY (INC. 5-6)
    VALVE, THROTTLE - ASSEMBLY (INC. 5-6)
  • 5
    3304-465 ...CLIP, SPRING
    ...CLIP, SPRING
  • 6
    3304-466 ...E-RING
    ...E-RING
  • 7
    3304-468 NEEDLE JET
    NEEDLE JET
  • 8
    3304-472 HOSE ASSEMBLY (INC. ONE NO. 9)
    HOSE ASSEMBLY (INC. ONE NO. 9)
  • 9
    5507-161 ...CLAMP, HOSE
    ...CLAMP, HOSE
  • 10
    3304-469 COVER
    COVER
  • 11
    3304-470 AUTOMATIC BYPASS/STARTER ASSEMBLY
    AUTOMATIC BYPASS/STARTER ASSEMBLY
  • 12
    5507-117 SCREW, MACHINE
    SCREW, MACHINE
  • 13
    3304-471 PLATE, RETAINING
    PLATE, RETAINING
  • 14
    3304-488 O-RING
    O-RING
  • 15
    3304-477 SCREW, STOP - ASSEMBLY (INC. 16-17)
    SCREW, STOP - ASSEMBLY (INC. 16-17)
  • 16
    3304-232 ...SPRING
    ...SPRING
  • 17
    3304-478 ...SCREW, STOP
    ...SCREW, STOP
  • 18
    3304-479 HOLDER, NEEDLE JET - ASSEMBLY (INC. 19)
    HOLDER, NEEDLE JET - ASSEMBLY (INC. 19)
  • 19
    3304-482 ...JET, MAIN - 80 (STD)
    ...JET, MAIN - 80 (STD)
  • 19
    5507-170 ...JET, MAIN - 75 (OPT)
    ...JET, MAIN - 75 (OPT)
  • 19
    5507-220 ...JET, MAIN - 78 (OPT)
    ...JET, MAIN - 78 (OPT)
  • 20
    3304-489 JET, SLOW
    JET, SLOW
  • 21
    3304-490 VALVE, FLOAT - ASSEMBLY (INC. 22-23)
    VALVE, FLOAT - ASSEMBLY (INC. 22-23)
  • 22
    3306-752 ...VALVE, FLOAT
    ...VALVE, FLOAT
  • 23
    3304-484 ...CLIP
    ...CLIP
  • 24
    3304-491 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 25
    3304-485 PIN, FLOAT
    PIN, FLOAT
  • 26
    3304-486 CHAMBER, FLOAT W/GASKET (INC. ONE NO. 9 AND 27-29)
    CHAMBER, FLOAT W/GASKET (INC. ONE NO. 9 AND 27-29)
  • 27
    3304-239 ...O-RING
    ...O-RING
  • 28
    3304-243 ...SCREW, DRAIN
    ...SCREW, DRAIN
  • 29
    3305-248 ...HOSE
    ...HOSE
  • 30
    3303-320 SCREW, MACHINE
    SCREW, MACHINE
