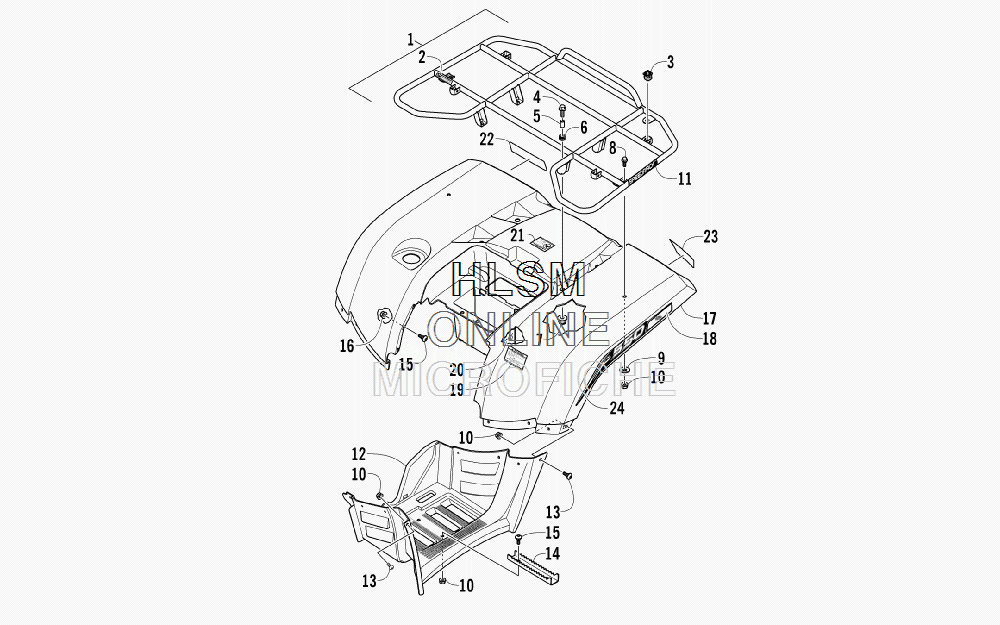

REAR RACK- BODY PANEL- AND FOOTWELL ASSEMBLIES для Arctic Cat 500 XT 4x4 - GREEN [A2013BGO1PUSN] - 2013 года выпуска`
-
№АртикулНазвание
-
12506-124 RACK, REAR - ASSEMBLY (INC. 2-3)RACK, REAR - ASSEMBLY (INC. 2-3)
-
20411-648 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
30441-592 ...BUSHING...BUSHING
-
48410-830 SCREW, CAPSCREW, CAP
-
50423-669 SPACERSPACER
-
60423-465 GROMMETGROMMET
-
78432-802 NUT, LOCKNUT, LOCK
-
80423-654 SCREW, SHOULDERSCREW, SHOULDER
-
98050-222 WASHERWASHER
-
100423-540 NUT, LOCKNUT, LOCK
-
110411-965 DECAL, "SPEEDRACK"DECAL, "SPEEDRACK"
-
122406-280 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
122406-281 FOOTWELL - LEFTFOOTWELL - LEFT
-
130423-419 SCREW, MACHINESCREW, MACHINE
-
141506-125 FOOTPEGFOOTPEG
-
150423-355 SCREW, SHOULDERSCREW, SHOULDER
-
168424-602 NUTNUT
-
172516-688 PANEL, FENDER - ASSEMBLY - BLACK (INC. 18-21)PANEL, FENDER - ASSEMBLY - BLACK (INC. 18-21)
-
181411-598 ...DECAL, REFLECTOR - RIGHT - RED...DECAL, REFLECTOR - RIGHT - RED
-
181411-599 ...DECAL, REFLECTOR - LEFT - RED...DECAL, REFLECTOR - LEFT - RED
-
192411-143 ...DECAL, WARNING - TIRE PRESSURE...DECAL, WARNING - TIRE PRESSURE
-
200412-351 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
211411-809 ...DECAL, PASSENGER...DECAL, PASSENGER
-
221411-725 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
233411-239 DECAL, "XT"DECAL, "XT"
-
243411-040 DECAL, SIDE - LOWER RIGHTDECAL, SIDE - LOWER RIGHT
-
243411-041 DECAL, SIDE - LOWER LEFTDECAL, SIDE - LOWER LEFT
