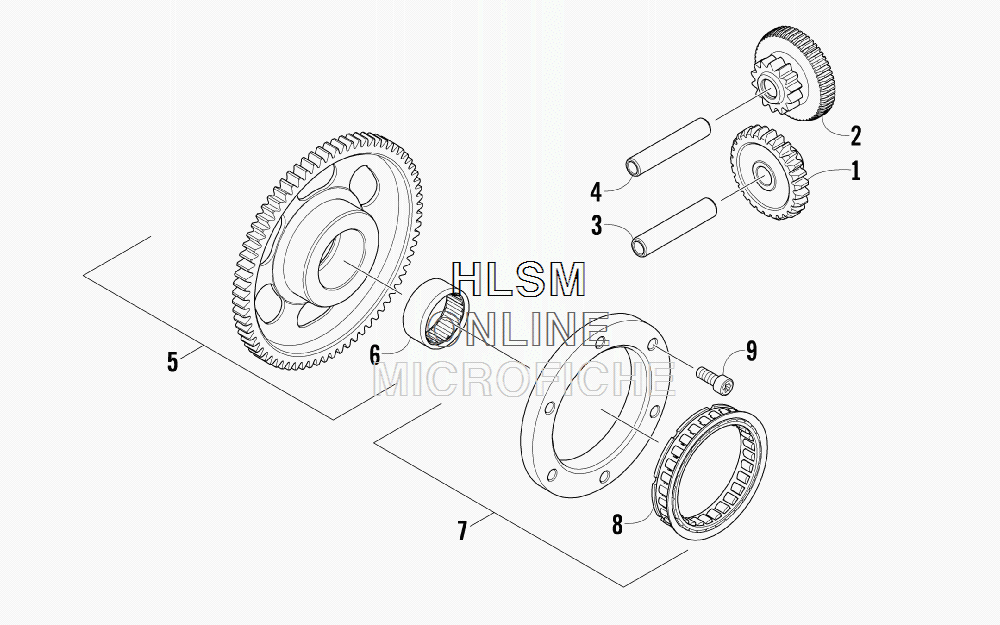

STARTER CLUTCH ASSEMBLY для Arctic Cat 400 Core 4x4 - RED [A2013IRG4BUSR] - 2013 года выпуска
-
№АртикулНазвание
-
10815-022 GEAR,STARTER IDLER-27T-NO.2GEAR,STARTER IDLER-27T-NO.2
-
20815-031 GEAR,STARTER IDLER-56/14T-NO.1GEAR,STARTER IDLER-56/14T-NO.1
-
30815-015 PIN, STARTER IDLER GEAR NO. 2PIN, STARTER IDLER GEAR NO. 2
-
40815-007 PIN, STARTER IDLER GEAR NO. 1PIN, STARTER IDLER GEAR NO. 1
-
50815-023 GEAR, STARTER CLUTCH (INC. 6)GEAR, STARTER CLUTCH (INC. 6)
-
60832-069 BEARING,NEEDLE ROLLER-31 X 39 X 18BEARING,NEEDLE ROLLER-31 X 39 X 18
-
70802-044 CLUTCH, ONE-WAY (INC. 8)CLUTCH, ONE-WAY (INC. 8)
-
90826-120 SCREW, CAPSCREW, CAP
Все узлы модели:
- AIR INTAKE ASSEMBLY
- BATTERY AND STARTER ASSEMBLY
- CAM CHAIN ASSEMBLY
- CARBURETOR
- CASE/BELT COOLING ASSEMBLY
- CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY
- CRANK BALANCER ASSEMBLY
- CRANKCASE ASSEMBLY
- CRANKSHAFT AND PISTON ASSEMBLY
- CYLINDER ASSEMBLY
- CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY
- DRIVE TRAIN ASSEMBLY
- ENGINE AND EXHAUST
- FRAME AND RELATED PARTS
- FRONT BODY- RACK- AND HEADLIGHT ASSEMBLY
- FRONT DRIVE GEARCASE ASSEMBLY
- FRONT SUSPENSION ASSEMBLY
- GAS TANK ASSEMBLY
- GEAR SHIFTING ASSEMBLY
- HANDLEBAR ASSEMBLY
- HYDRAULIC BRAKE ASSEMBLY
- MAGNETO ASSEMBLY
- OIL COOLER ASSEMBLY
- OIL PUMP AND STRAINER ASSEMBLY
- REAR BODY- RACK- AND TAILLIGHT ASSEMBLY
- REAR DRIVE GEARCASE ASSEMBLY
- REAR SUSPENSION ASSEMBLY
- SEAT ASSEMBLY
- SECONDARY DRIVE ASSEMBLY
- SECONDARY TRANSMISSION ASSEMBLY
- SHIFT LEVER ASSEMBLY
- • STARTER CLUTCH ASSEMBLY
- STEERING ASSEMBLY
- TRANSMISSION ASSEMBLY
- WHEEL AND TIRE ASSEMBLY
- WIRING HARNESS ASSEMBLY
