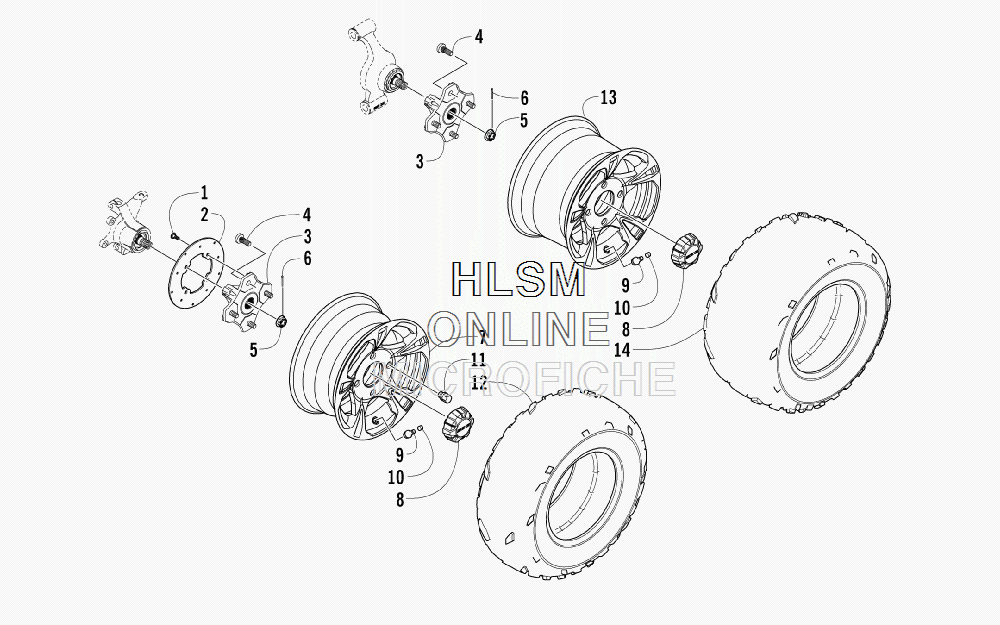

WHEEL AND TIRE ASSEMBLY для Arctic Cat 1000 XT 4x4 [A2013AGW1PUSW] - 2013 года выпуска
-
№АртикулНазвание
-
10423-557 SCREW, SHOULDERSCREW, SHOULDER
-
21436-808 DISC, BRAKEDISC, BRAKE
-
31502-437 HUB, WHEEL (INC. 4)HUB, WHEEL (INC. 4)
-
40402-974 ...STUD...STUD
-
50423-607 NUT, CASTLENUT, CASTLE
-
60423-407 PIN, COTTERPIN, COTTER
-
72402-068 WHEEL - FRONT - ALUMINUM (INC. 8)WHEEL - FRONT - ALUMINUM (INC. 8)
-
82402-084 ...CAP, WHEEL...CAP, WHEEL
-
90402-064 STEM, VALVE (INC. 10)STEM, VALVE (INC. 10)
-
100402-140 ...CAP, VALVE STEM...CAP, VALVE STEM
-
110423-618 NUT, LUG - CHROMENUT, LUG - CHROME
-
121402-935 TIRE - FRONT 26X9R12TIRE - FRONT 26X9R12
-
132402-069 WHEEL - REAR - ALUMINUM (INC. 8)WHEEL - REAR - ALUMINUM (INC. 8)
-
141402-936 TIRE - REAR - 26X11R12TIRE - REAR - 26X11R12
