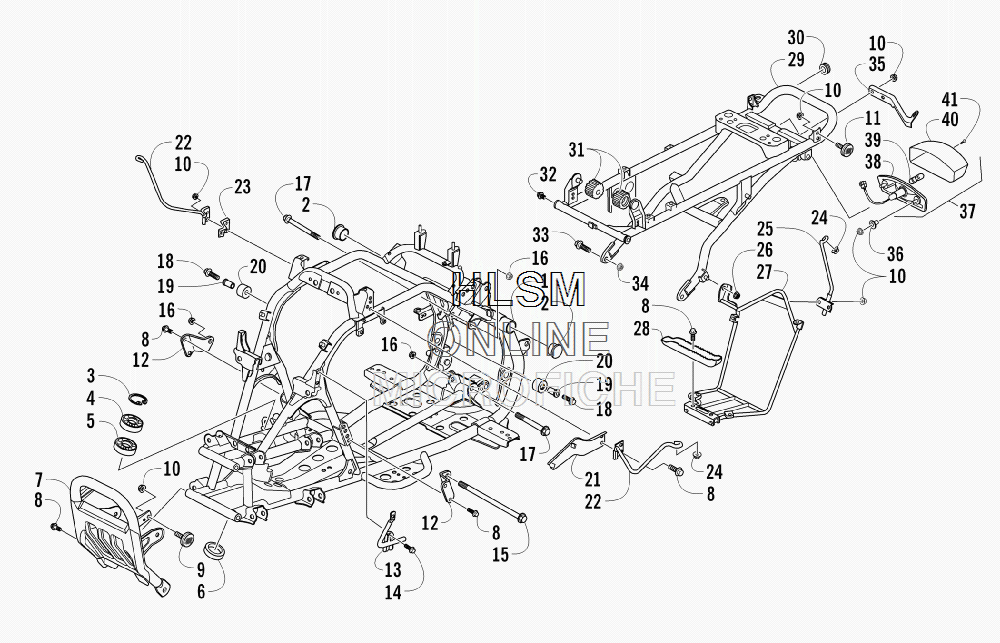

FRAME- TAILLIGHT- AND RELATED PARTS ASSEMBLY для Arctic Cat DVX 300 [A2012KSF2BUSK] - 2012 года выпуска
-
№АртикулНазвание
-
13304-338 FRAME, MAIN - FRONTFRAME, MAIN - FRONT
-
23304-658 END CAP, FRAMEEND CAP, FRAME
-
33304-150 RING, RETAININGRING, RETAINING
-
43304-203 BEARINGBEARING
-
53303-298 SEAL, OILSEAL, OIL
-
63304-064 SEAL, DUSTSEAL, DUST
-
73305-270 BUMPER, FRONTBUMPER, FRONT
-
83304-543 SCREW, CAPSCREW, CAP
-
93305-272 REFLECTOR, FRONT - AMBERREFLECTOR, FRONT - AMBER
-
103304-654 NUT, LOCKNUT, LOCK
-
113305-273 REFLECTOR, REAR - REDREFLECTOR, REAR - RED
-
123303-938 BRACKET, MOUNTING - ENGINEBRACKET, MOUNTING - ENGINE
-
133304-352 BRACKET, SUPPORT - FENDER - FRONT - RIGHTBRACKET, SUPPORT - FENDER - FRONT - RIGHT
-
133304-353 BRACKET, SUPPORT - FENDER - FRONT - LEFTBRACKET, SUPPORT - FENDER - FRONT - LEFT
-
143304-553 SCREW, CAPSCREW, CAP
-
153304-184 SCREW, CAPSCREW, CAP
-
163304-031 NUTNUT
-
173304-183 SCREW, CAPSCREW, CAP
-
183304-408 SCREW, CAPSCREW, CAP
-
193304-701 INSERTINSERT
-
203304-362 GROMMETGROMMET
-
213303-935 BRACKET, SUPPORT - GAS TANKBRACKET, SUPPORT - GAS TANK
-
223304-350 BRACKET, MOUNTING - FENDER SUPPORT - RIGHTBRACKET, MOUNTING - FENDER SUPPORT - RIGHT
-
223304-351 BRACKET, MOUNTING - FENDER SUPPORT - LEFTBRACKET, MOUNTING - FENDER SUPPORT - LEFT
-
233303-740 BRACKET, MOUNTING - RADIATORBRACKET, MOUNTING - RADIATOR
-
243304-417 NUT, STAMPEDNUT, STAMPED
-
253304-348 BRACKET, SUPPORT - FENDER - REAR - RIGHTBRACKET, SUPPORT - FENDER - REAR - RIGHT
-
253304-349 BRACKET, SUPPORT - FENDER - REAR - LEFTBRACKET, SUPPORT - FENDER - REAR - LEFT
-
263303-332 NUTNUT
-
273304-354 BRACKET, MOUNTING - FENDER - RIGHTBRACKET, MOUNTING - FENDER - RIGHT
-
273304-356 BRACKET, MOUNTING - FENDER - LEFTBRACKET, MOUNTING - FENDER - LEFT
-
283304-346 FOOTPEGFOOTPEG
-
293305-271 FRAME, MAIN - REARFRAME, MAIN - REAR
-
303303-239 GROMMETGROMMET
-
313304-245 SUPPORT, GAS TANKSUPPORT, GAS TANK
-
323304-435 SCREW, CAPSCREW, CAP
-
333304-181 SCREW, CAPSCREW, CAP
-
343303-333 NUT, LOCKNUT, LOCK
-
353304-345 BRACKET, MOUNTING - FENDER - REAR - RIGHTBRACKET, MOUNTING - FENDER - REAR - RIGHT
-
353304-344 BRACKET, MOUNTING - FENDER - REAR - LEFTBRACKET, MOUNTING - FENDER - REAR - LEFT
-
363303-226 INSERTINSERT
-
373303-420 TAILLIGHT - ASSEMBLY (INC. 38-41)TAILLIGHT - ASSEMBLY (INC. 38-41)
-
383303-422 ...BASE, TAILLIGHT...BASE, TAILLIGHT
-
393303-849 ...BULB, TAILLIGHT...BULB, TAILLIGHT
-
403304-283 ...LENS, TAILLIGHT...LENS, TAILLIGHT
-
413304-537 ...SCREW, MACHINE...SCREW, MACHINE
