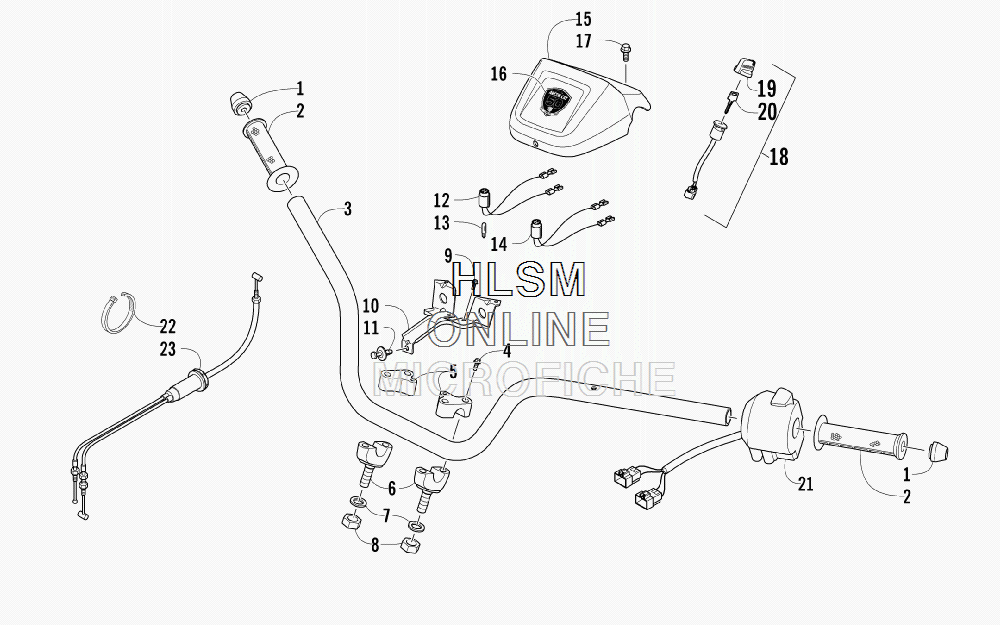

HANDLEBAR AND CONTROL ASSEMBLY для Arctic Cat 90 UTILITY [A2012KUB2BUSZ] - 2012 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-196 END CAP, HANDLEBAR
    END CAP, HANDLEBAR
  • 2
    3305-905 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 3
    3305-348 HANDLEBAR
    HANDLEBAR
  • 4
    3303-398 SCREW, CAP
    SCREW, CAP
  • 5
    3303-197 CLAMP, HANDLEBAR - UPPER RIGHT
    CLAMP, HANDLEBAR - UPPER RIGHT
  • 5
    3303-198 CLAMP, HANDLEBAR - UPPER LEFT
    CLAMP, HANDLEBAR - UPPER LEFT
  • 6
    3303-199 CLAMP, HANDLEBAR - LOWER
    CLAMP, HANDLEBAR - LOWER
  • 7
    3304-136 WASHER
    WASHER
  • 8
    3305-517 NUT
    NUT
  • 9
    3304-553 SCREW, CAP
    SCREW, CAP
  • 10
    3304-506 BRACKET, HANDLEBAR COVER
    BRACKET, HANDLEBAR COVER
  • 11
    3303-592 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 12
    3305-830 LIGHT, INDICATOR - NEUTRAL (INC. ONE NO. 13)
    LIGHT, INDICATOR - NEUTRAL (INC. ONE NO. 13)
  • 13
    3305-867 ...BULB
    ...BULB
  • 14
    3305-831 LIGHT, INDICATOR - REVERSE (INC. ONE NO. 13)
    LIGHT, INDICATOR - REVERSE (INC. ONE NO. 13)
  • 15
    3306-392 COVER, HANDLEBAR - BLACK
    COVER, HANDLEBAR - BLACK
  • 16
    9611-603 DECAL, 50TH ANNIVERSARY
    DECAL, 50TH ANNIVERSARY
  • 17
    3304-029 SCREW, CAP
    SCREW, CAP
  • 18
    3305-998 SWITCH, IGNITION - ASSEMBLY (INC. 19-20)
    SWITCH, IGNITION - ASSEMBLY (INC. 19-20)
  • 19
    3304-522 ...COVER, KEY
    ...COVER, KEY
  • 20
    3305-999 ...KEY, IGNITION - RIGHT-SIDE CUT
    ...KEY, IGNITION - RIGHT-SIDE CUT
  • 20
    3306-001 ...KEY, IGNITION - LEFT-SIDE CUT
    ...KEY, IGNITION - LEFT-SIDE CUT
  • 21
    3303-424 SWITCH, HANDLEBAR - ASSEMBLY
    SWITCH, HANDLEBAR - ASSEMBLY
  • 22
    3303-289 TIE, CABLE
    TIE, CABLE
  • 23
    1502-096 CABLE, THROTTLE
    CABLE, THROTTLE
