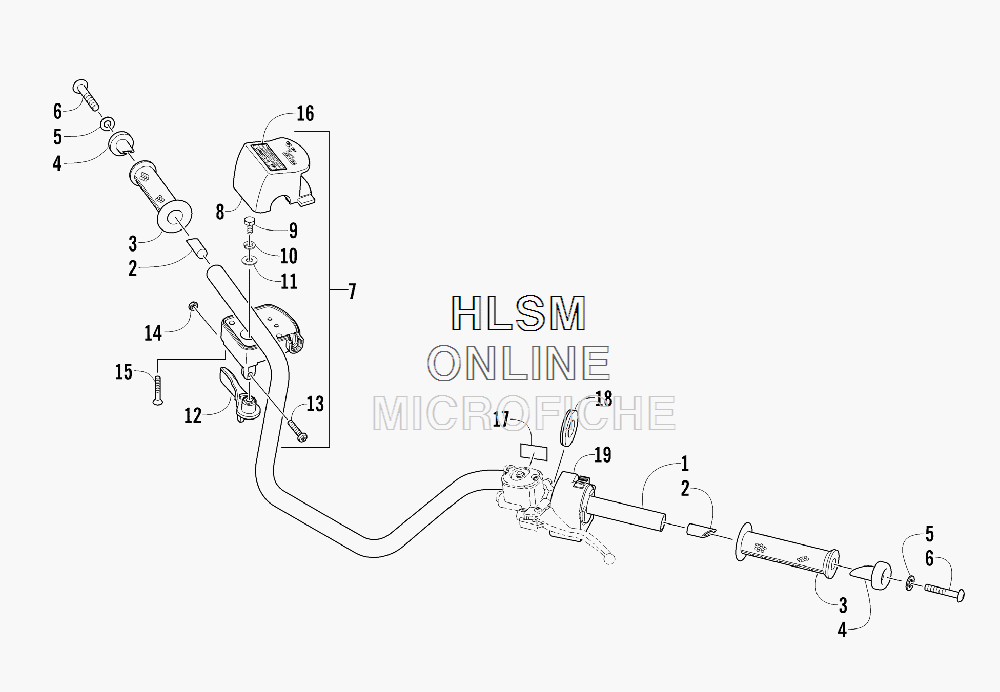

HANDLEBAR ASSEMBLY для Arctic Cat 700 MUD PRO LTD ORANGE [A2012MLT1PUSY] - 2012 года выпуска

  • №
    Артикул
    Название
  • 0505-537 HANDLEBAR
    HANDLEBAR
  • 2
    0405-218 PLUG, HANDLEBAR
    PLUG, HANDLEBAR
  • 3
    0405-147 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 4
    0405-149 END CAP, HANDLEBAR
    END CAP, HANDLEBAR
  • 5
    8050-247 WASHER
    WASHER
  • 6
    8477-845 SCREW, MACHINE
    SCREW, MACHINE
  • 7
    0509-054 CASE, THROTTLE - ASSEMBLY (INC. 8-15)
    CASE, THROTTLE - ASSEMBLY (INC. 8-15)
  • 8
    0409-141 ...COVER, THROTTLE CASE W/SWITCH
    ...COVER, THROTTLE CASE W/SWITCH
  • 9
    3007-392 ...SCREW, CAP
    ...SCREW, CAP
  • 10
    3004-447 ...WASHER, LOCK
    ...WASHER, LOCK
  • 11
    3003-030 ...WASHER
    ...WASHER
  • 12
    0409-133 ...LEVER, THROTTLE
    ...LEVER, THROTTLE
  • 13
    3423-014 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 14
    3423-327 ...NUT
    ...NUT
  • 15
    3423-199 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 16
    0411-966 DECAL, WARNING - DIFFERENTIAL LOCK
    DECAL, WARNING - DIFFERENTIAL LOCK
  • 17
    1411-865 DECAL, WARNING - BRAKE LEVER LOCK
    DECAL, WARNING - BRAKE LEVER LOCK
  • 18
    3409-019 COVER, SWITCH HOUSING
    COVER, SWITCH HOUSING
  • 19
    0509-014 SWITCH, CONTROL - ASSEMBLY
    SWITCH, CONTROL - ASSEMBLY
