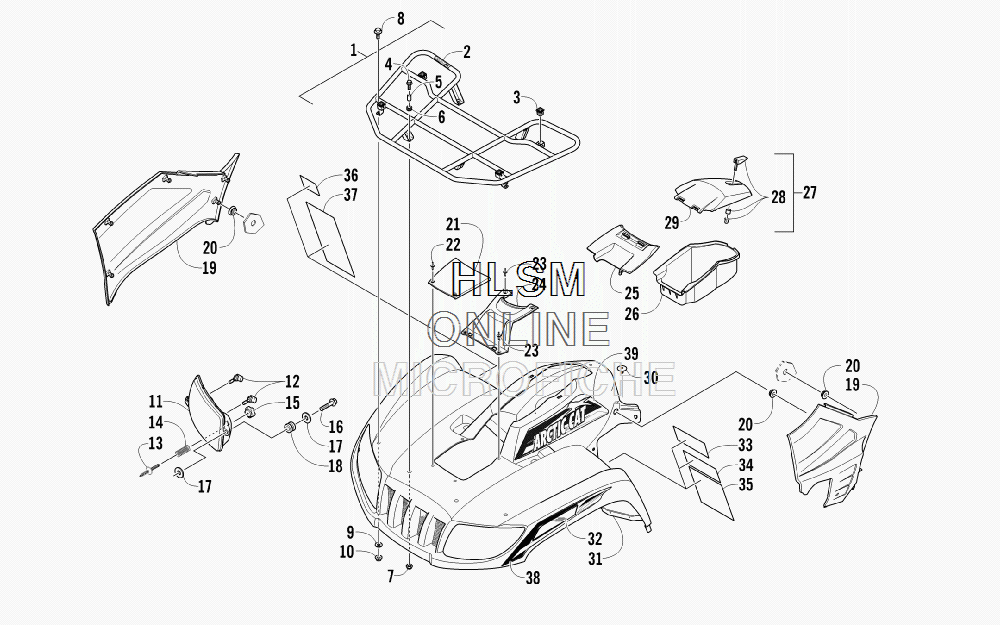

FRONT RACK- BODY PANEL- AND HEADLIGHT ASSEMBLIES для Arctic Cat 700 LTD METALLIC GREEN [A2012ALT1PUSA] - 2012 года выпуска`
-
№АртикулНазвание
-
12506-643 RACK, FRONT - ASSEMBLY (INC. 2-3)RACK, FRONT - ASSEMBLY (INC. 2-3)
-
20411-576 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
30441-592 ...BUSHING...BUSHING
-
48410-830 SCREW, CAPSCREW, CAP
-
50423-669 SPACERSPACER
-
60423-465 GROMMETGROMMET
-
78432-802 NUT, LOCKNUT, LOCK
-
80423-654 SCREW, SHOULDERSCREW, SHOULDER
-
98050-222 WASHERWASHER
-
100423-540 NUT, LOCKNUT, LOCK
-
110509-044 HEADLIGHT ASSEMBLY - RIGHT (INC. 12)HEADLIGHT ASSEMBLY - RIGHT (INC. 12)
-
110509-035 HEADLIGHT ASSEMBLY - LEFT (INC. 12)HEADLIGHT ASSEMBLY - LEFT (INC. 12)
-
120409-055 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
130423-514 STUD, ADJUSTER - HEADLIGHTSTUD, ADJUSTER - HEADLIGHT
-
140423-522 SPRING, ADJUSTERSPRING, ADJUSTER
-
150423-513 KNOB, ADJUSTERKNOB, ADJUSTER
-
160623-785 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
178050-217 WASHERWASHER
-
180423-447 GROMMETGROMMET
-
192406-300 PANEL, SIDE - LOWER - RIGHTPANEL, SIDE - LOWER - RIGHT
-
192406-419 PANEL, SIDE - LOWER - LEFTPANEL, SIDE - LOWER - LEFT
-
200423-678 GROMMETGROMMET
-
211406-358 COVER, ACCESSCOVER, ACCESS
-
220423-535 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
230623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
241406-484 COVER, STEERING POSTCOVER, STEERING POST
-
250470-513 COVER, STORAGE BOXCOVER, STORAGE BOX
-
261406-573 BOX, STORAGEBOX, STORAGE
-
272506-234 LID, STORAGE BOX W/LATCH (INC. 28-29)LID, STORAGE BOX W/LATCH (INC. 28-29)
-
281406-599 ...LATCH, STORAGE BOX...LATCH, STORAGE BOX
-
290470-514 ...LID, STORAGE BOX...LID, STORAGE BOX
-
300423-101 SCREW, SHOULDERSCREW, SHOULDER
-
312516-132 PANEL, FENDER - ASSEMBLY - FRONT - METALLIC GREEN (INC. 32-37)PANEL, FENDER - ASSEMBLY - FRONT - METALLIC GREEN (INC. 32-37)
-
320411-818 ...DECAL, REFLECTOR - RIGHT - AMBER...DECAL, REFLECTOR - RIGHT - AMBER
-
320411-819 ...DECAL, REFLECTOR - LEFT - AMBER...DECAL, REFLECTOR - LEFT - AMBER
-
331411-574 ...DECAL, WARNING - OFF-ROAD ONLY...DECAL, WARNING - OFF-ROAD ONLY
-
341411-804 ...DECAL, WARNING - AGE...DECAL, WARNING - AGE
-
351411-932 ...DECAL, WARNING - GENERAL...DECAL, WARNING - GENERAL
-
360411-835 ...DECAL, WARNING - TURN/HILL...DECAL, WARNING - TURN/HILL
-
371411-250 ...DECAL, WARNING - REVERSE/PRE-RIDE...DECAL, WARNING - REVERSE/PRE-RIDE
-
382411-694 DECAL, SIDE - FRONT RIGHTDECAL, SIDE - FRONT RIGHT
-
382411-695 DECAL, SIDE - FRONT LEFTDECAL, SIDE - FRONT LEFT
-
392411-696 DECAL, SIDE - UPPER RIGHTDECAL, SIDE - UPPER RIGHT
-
392411-697 DECAL, SIDE - UPPER LEFTDECAL, SIDE - UPPER LEFT
