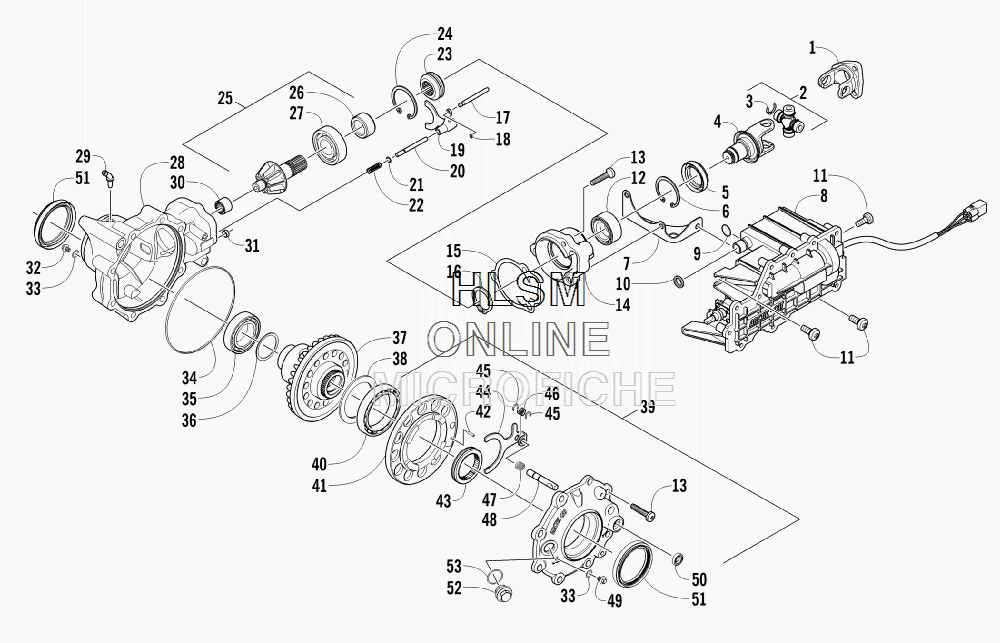

FRONT DRIVE GEARCASE ASSEMBLY для Arctic Cat 700 DIESEL [A2012TBT4DUSG] - 2012 года выпуска

  • №
    Артикул
    Название
  • -
    1502-881 COMPLETE FRONT DRIVE GEARCASE ASSEMBLY
    COMPLETE FRONT DRIVE GEARCASE ASSEMBLY
  • 1
    1402-369 YOKE, FLANGE
    YOKE, FLANGE
  • 2
    1402-164 JOINT, UNIVERSAL - SET (INC. 3)
    JOINT, UNIVERSAL - SET (INC. 3)
  • 3
    0423-450 ...RETAINER
    ...RETAINER
  • 4
    0502-517 YOKE, FRONT END - ASSEMBLY
    YOKE, FRONT END - ASSEMBLY
  • 5
    1402-011 SEAL
    SEAL
  • 6
    0423-423 RING, RETAINING
    RING, RETAINING
  • 7
    1502-237 BRACKET, ACTUATOR
    BRACKET, ACTUATOR
  • 8
    1502-909 ACTUATOR (INC. 9)
    ACTUATOR (INC. 9)
  • 9
    1402-981 ...O-RING
    ...O-RING
  • 10
    0423-892 O-RING
    O-RING
  • 11
    0423-396 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 12
    1402-043 BEARING
    BEARING
  • 13
    0423-118 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    0502-528 HOUSING, PINION
    HOUSING, PINION
  • 15
    0402-947 GASKET, FLANGE
    GASKET, FLANGE
  • 16
    0423-417 RING, RETAINING
    RING, RETAINING
  • 17
    0402-997 SHAFT, SELECTOR
    SHAFT, SELECTOR
  • 18
    0423-402 RING, RETAINING
    RING, RETAINING
  • 19
    0402-998 FORK, SELECTOR
    FORK, SELECTOR
  • 20
    0402-417 SHAFT, SHUTTLE
    SHAFT, SHUTTLE
  • 21
    0423-147 O-RING
    O-RING
  • 22
    0402-999 SPRING, RETURN
    SPRING, RETURN
  • 23
    0402-413 COUPLER, DRIVE
    COUPLER, DRIVE
  • 24
    1423-067 RING, RETAINING
    RING, RETAINING
  • 25
    1502-863 GEAR, PINION - ASSEMBLY - 10T (INC. 26-27)
    GEAR, PINION - ASSEMBLY - 10T (INC. 26-27)
  • 26
    1402-977 ...COLLAR, RETAINING
    ...COLLAR, RETAINING
  • 27
    0402-327 ...BEARING
    ...BEARING
  • 28
    1502-856 HOUSING, GEARCASE
    HOUSING, GEARCASE
  • 29
    1402-980 FITTING, ELBOW
    FITTING, ELBOW
  • 30
    0402-328 BEARING
    BEARING
  • 31
    0402-411 PIN, DOWEL
    PIN, DOWEL
  • 32
    1402-210 PLUG, MAGNETIC (INC. ONE NO. 33)
    PLUG, MAGNETIC (INC. ONE NO. 33)
  • 33
    0423-153 ...O-RING
    ...O-RING
  • 34
    0423-149 O-RING
    O-RING
  • 35
    0402-393 BEARING
    BEARING
  • 36
    0402-405 SHIM, 41 X 49 X 1.3 MM
    SHIM, 41 X 49 X 1.3 MM
  • 36
    0402-406 SHIM, 41 X 49 X 1.4 MM
    SHIM, 41 X 49 X 1.4 MM
  • 36
    0402-407 SHIM, 41 X 49 X 1.5 MM
    SHIM, 41 X 49 X 1.5 MM
  • 36
    0402-408 SHIM, 41 X 49 X 1.6 MM
    SHIM, 41 X 49 X 1.6 MM
  • 36
    0402-409 SHIM, 41 X 49 X 1.7 MM
    SHIM, 41 X 49 X 1.7 MM
  • 37
    1502-860 GEAR, RING - 36T
    GEAR, RING - 36T
  • 38
    1402-074 SHIM, 61 X 69 X 1.3 MM
    SHIM, 61 X 69 X 1.3 MM
  • 38
    1402-075 SHIM, 61 X 69 X 1.4 MM
    SHIM, 61 X 69 X 1.4 MM
  • 38
    1402-076 SHIM, 61 X 69 X 1.5 MM
    SHIM, 61 X 69 X 1.5 MM
  • 38
    1402-077 SHIM, 61 X 69 X 1.6 MM
    SHIM, 61 X 69 X 1.6 MM
  • 38
    1402-078 SHIM, 61 X 69 X 1.7 MM
    SHIM, 61 X 69 X 1.7 MM
  • 39
    1502-895 COVER, GEARCASE (INC. ONE NO. 33, 40-50, AND ONE NO. 51)
    COVER, GEARCASE (INC. ONE NO. 33, 40-50, AND ONE NO. 51)
  • 40
    1402-053 ...BEARING
    ...BEARING
  • 41
    0502-413 ...FLANGE, BEARING
    ...FLANGE, BEARING
  • 42
    1402-079 ...PIN, PARALLEL
    ...PIN, PARALLEL
  • 43
    1402-042 ...COLLAR, SLIDING
    ...COLLAR, SLIDING
  • 44
    1402-054 ...FORK
    ...FORK
  • 45
    1402-058 ...RING, RETAINING
    ...RING, RETAINING
  • 46
    1402-057 ...SPRING
    ...SPRING
  • 47
    1402-063 ...SPRING
    ...SPRING
  • 48
    1402-656 ...SHAFT, LOCK
    ...SHAFT, LOCK
  • 49
    1402-211 ...PLUG, OIL LEVEL (INC. ONE NO. 33)
    ...PLUG, OIL LEVEL (INC. ONE NO. 33)
  • 50
    1402-056 ...SEAL
    ...SEAL
  • 51
    1402-950 ...SEAL
    ...SEAL
  • 52
    0402-333 PLUG, FILL (INC. 53)
    PLUG, FILL (INC. 53)
  • 53
    0423-154 ...O-RING
    ...O-RING
