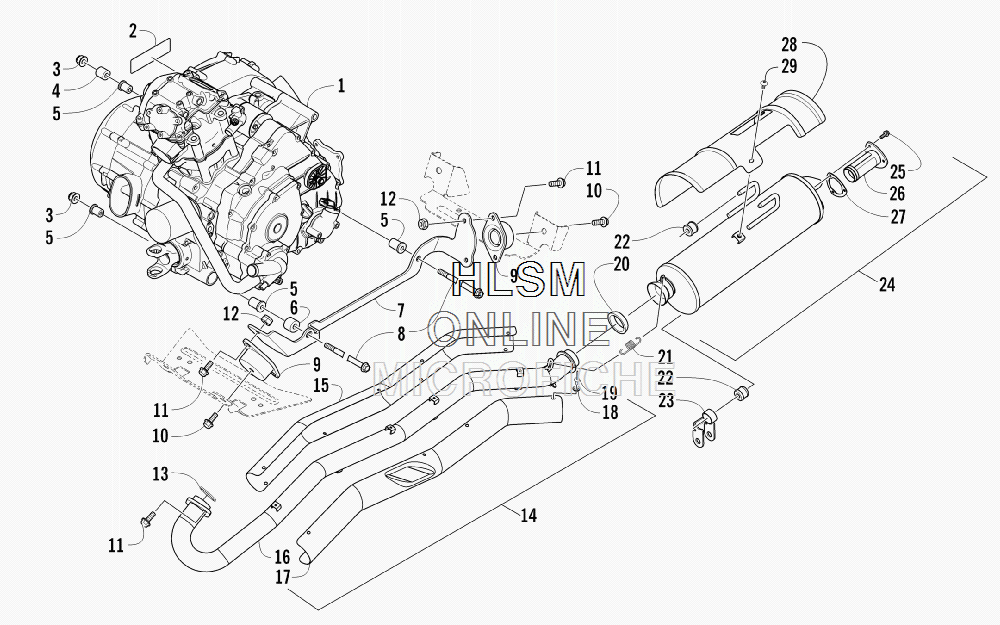

ENGINE AND EXHAUST для Arctic Cat 450 TRV GT ORANGE [A2012TGK2PUSU] - 2012 года выпуска`
-
№АртикулНазвание
-
13313-847 ENGINEENGINE
-
20411-426 DECAL, WARNING - CLUTCH COVERDECAL, WARNING - CLUTCH COVER
-
38428-002 NUT, LOCKNUT, LOCK
-
40408-020 SPACERSPACER
-
50801-180 MOUNT, RUBBER - ENGINEMOUNT, RUBBER - ENGINE
-
61423-025 SPACERSPACER
-
71506-740 BRACKET, ENGINE - RIGHTBRACKET, ENGINE - RIGHT
-
71506-741 BRACKET, ENGINE - LEFTBRACKET, ENGINE - LEFT
-
80423-405 SCREW, CAPSCREW, CAP
-
92406-065 MOUNT, ENGINEMOUNT, ENGINE
-
108408-012 SCREW, CAPSCREW, CAP
-
118408-820 SCREW, CAPSCREW, CAP
-
128432-802 NUT, LOCKNUT, LOCK
-
133313-743 GASKET, EXHAUSTGASKET, EXHAUST
-
140512-549 PIPE, EXHAUST - ASSEMBLY (INC. 15-19)PIPE, EXHAUST - ASSEMBLY (INC. 15-19)
-
150512-553 ...SHIELD, EXHAUST PIPE - INNER...SHIELD, EXHAUST PIPE - INNER
-
160512-550 ...PIPE, EXHAUST...PIPE, EXHAUST
-
170512-548 ...SHIELD, EXHAUST PIPE - OUTER...SHIELD, EXHAUST PIPE - OUTER
-
188050-217 ...WASHER...WASHER
-
198061-486 ...RIVET...RIVET
-
200412-375 SEAL, EXHAUSTSEAL, EXHAUST
-
210612-668 SPRING, EXTENSIONSPRING, EXTENSION
-
220412-577 BUSHINGBUSHING
-
231506-732 CHANNEL, MUFFLER SUPPORTCHANNEL, MUFFLER SUPPORT
-
240512-355 MUFFLER - ASSEMBLY (INC. 25-27)MUFFLER - ASSEMBLY (INC. 25-27)
-
258408-616 ...SCREW, CAP...SCREW, CAP
-
260512-219 ...ARRESTER, SPARK - ASSEMBLY...ARRESTER, SPARK - ASSEMBLY
-
270412-313 ...GASKET, SPARK ARRESTER...GASKET, SPARK ARRESTER
-
280412-373 COVER, MUFFLERCOVER, MUFFLER
-
298477-610 SCREW, MACHINESCREW, MACHINE
