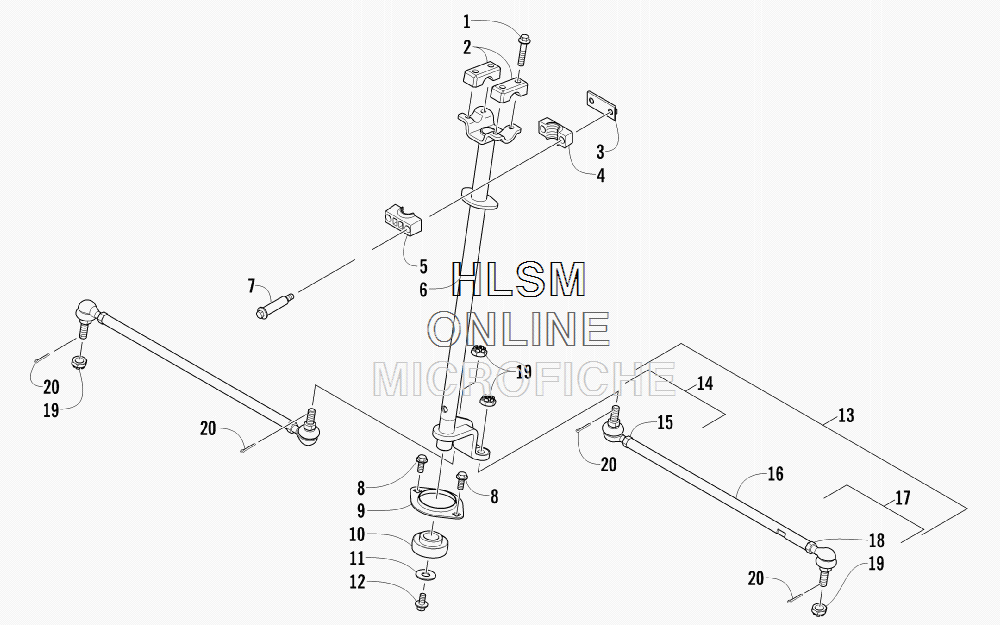

STEERING ASSEMBLY для Arctic Cat 450 GREEN INTERNATIONAL [A2012ICK4COSG] - 2012 года выпуска`
-
№АртикулНазвание
-
18408-835 SCREW, CAPSCREW, CAP
-
20405-035 CAP, STEERING ADJUSTERCAP, STEERING ADJUSTER
-
30505-484 CAP, HOUSINGCAP, HOUSING
-
40405-260 HOUSING, UPPERHOUSING, UPPER
-
50405-259 HOUSING, LOWERHOUSING, LOWER
-
60505-493 POST, STEERINGPOST, STEERING
-
70423-505 SCREW, SHOULDERSCREW, SHOULDER
-
88408-816 SCREW, CAPSCREW, CAP
-
90602-233 FLANGE, BEARINGFLANGE, BEARING
-
100405-052 BEARING W/INVERTED OIL SEALBEARING W/INVERTED OIL SEAL
-
110423-073 WASHERWASHER
-
128409-020 SCREW, CAPSCREW, CAP
-
130505-499 TIE ROD - ASSEMBLY (INC. 14-18)TIE ROD - ASSEMBLY (INC. 14-18)
-
140505-511 ...END, TIE ROD - LEFT-HAND THREAD - KIT (INC. 15)...END, TIE ROD - LEFT-HAND THREAD - KIT (INC. 15)
-
150423-013 ......NUT - LEFT-HAND THREAD......NUT - LEFT-HAND THREAD
-
160405-281 ...TIE ROD...TIE ROD
-
170505-510 ...END, TIE ROD - RIGHT-HAND THREAD - KIT (INC. 18)...END, TIE ROD - RIGHT-HAND THREAD - KIT (INC. 18)
-
188420-002 ......NUT - RIGHT-HAND THREAD......NUT - RIGHT-HAND THREAD
-
190423-157 NUT, LOCKNUT, LOCK
-
200623-175 PIN, COTTERPIN, COTTER
