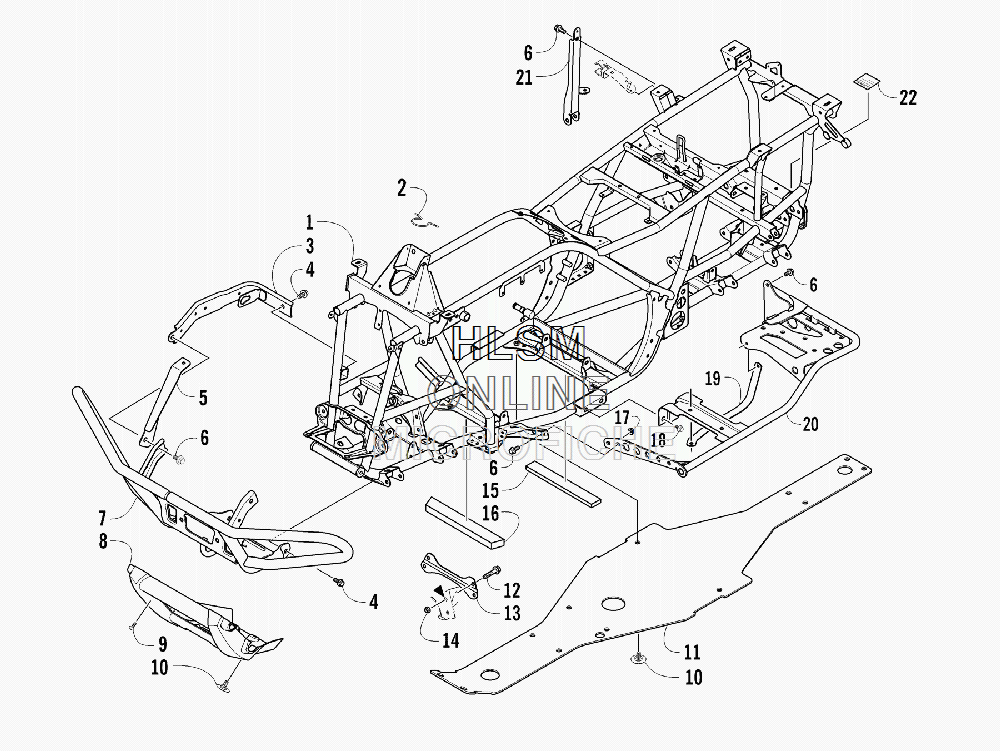

FRAME AND RELATED PARTS для Arctic Cat 1000 CRUISER METALLIC GRAY INTERNATIONAL [A2012TCW1POSS] - 2012 года выпуска`
-
№АртикулНазвание
-
14506-556 FRAME, MAINFRAME, MAIN
-
22416-401 CLIP, ROUTINGCLIP, ROUTING
-
32506-813 CHANNEL, BUMPER MOUNTING - RIGHTCHANNEL, BUMPER MOUNTING - RIGHT
-
32506-285 CHANNEL, BUMPER MOUNTING - LEFTCHANNEL, BUMPER MOUNTING - LEFT
-
48409-020 SCREW, CAPSCREW, CAP
-
51506-562 BRACKET, MOUNTING - BUMPER - RIGHTBRACKET, MOUNTING - BUMPER - RIGHT
-
51506-563 BRACKET, MOUNTING - BUMPER - LEFTBRACKET, MOUNTING - BUMPER - LEFT
-
68408-816 SCREW, CAPSCREW, CAP
-
71506-855 BUMPERBUMPER
-
81406-360 FASCIA, BUMPER - FRONT - BLACKFASCIA, BUMPER - FRONT - BLACK
-
90423-419 SCREW, MACHINESCREW, MACHINE
-
100423-101 SCREW, SHOULDERSCREW, SHOULDER
-
112406-718 PANEL, BELLYPANEL, BELLY
-
128409-025 SCREW, CAPSCREW, CAP
-
132516-852 BRACE, A-ARMBRACE, A-ARM
-
140423-744 NUT, LOCKNUT, LOCK
-
150406-289 PAD, FRAMEPAD, FRAME
-
162506-701 PAD, FRAMEPAD, FRAME
-
178424-802 NUTNUT
-
188409-016 SCREW, CAPSCREW, CAP
-
192406-788 STRAP, FOOTREST - RIGHTSTRAP, FOOTREST - RIGHT
-
192406-789 STRAP, FOOTREST - LEFTSTRAP, FOOTREST - LEFT
-
202506-776 FOOTREST - RIGHTFOOTREST - RIGHT
-
201506-849 FOOTREST - LEFTFOOTREST - LEFT
-
212506-447 BRACKET, SUPPORTBRACKET, SUPPORT
-
221411-077 DECAL, WARNING - TOWINGDECAL, WARNING - TOWING
