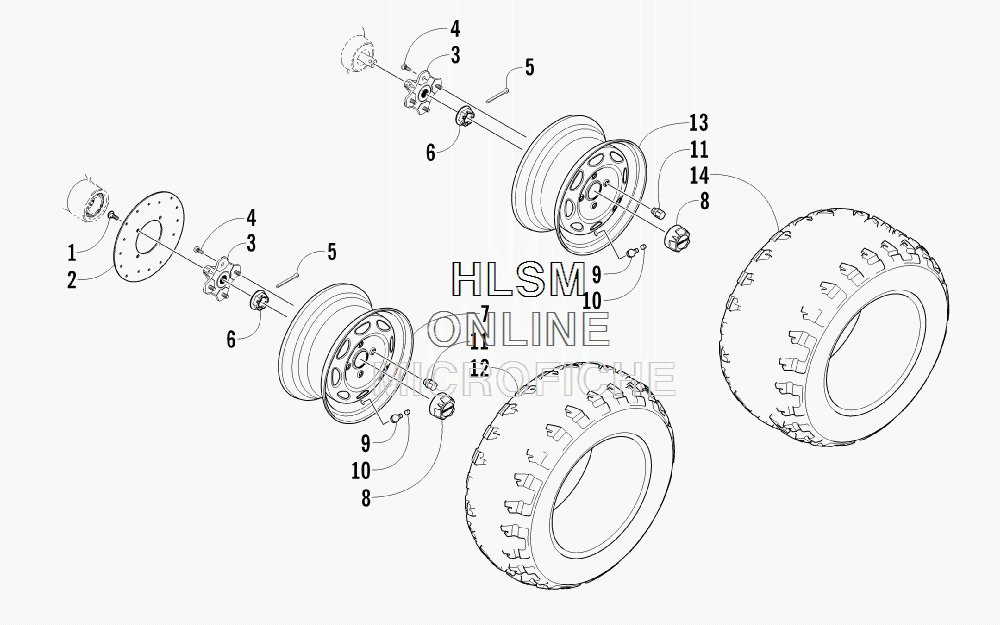

WHEEL AND TIRE ASSEMBLY для Arctic Cat PROWLER XTX TIMBER CAMO INTERNATIONAL [U2011P3T1POSH] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    0423-557 SCREW, SHOULDER
    SCREW, SHOULDER
  • 2
    1436-418 DISC, BRAKE
    DISC, BRAKE
  • 3
    1502-433 HUB, WHEEL - FRONT (INC. 4)
    HUB, WHEEL - FRONT (INC. 4)
  • 3
    1502-435 HUB, WHEEL - REAR (INC. 4)
    HUB, WHEEL - REAR (INC. 4)
  • 4
    0402-974 ...STUD
    ...STUD
  • 5
    0423-407 PIN, COTTER
    PIN, COTTER
  • 6
    0423-607 NUT, CASTLE
    NUT, CASTLE
  • 7
    1402-807 WHEEL - FRONT - BLACK
    WHEEL - FRONT - BLACK
  • 8
    0403-181 CAP, WHEEL
    CAP, WHEEL
  • 9
    0402-064 STEM, VALVE (INC. 10)
    STEM, VALVE (INC. 10)
  • 10
    0402-140 ...CAP, VALVE STEM
    ...CAP, VALVE STEM
  • 11
    0423-408 NUT, LUG
    NUT, LUG
  • 12
    1402-860 TIRE, DURO RED EAGLE NHS(26X10R14)
    TIRE, DURO RED EAGLE NHS(26X10R14)
  • 13
    1402-808 WHEEL, REAR-BLACK (14X8.0)
    WHEEL, REAR-BLACK (14X8.0)
  • 14
    1402-861 TIRE, DURO RED EAGLE NHS(26X12R14)
    TIRE, DURO RED EAGLE NHS(26X12R14)
