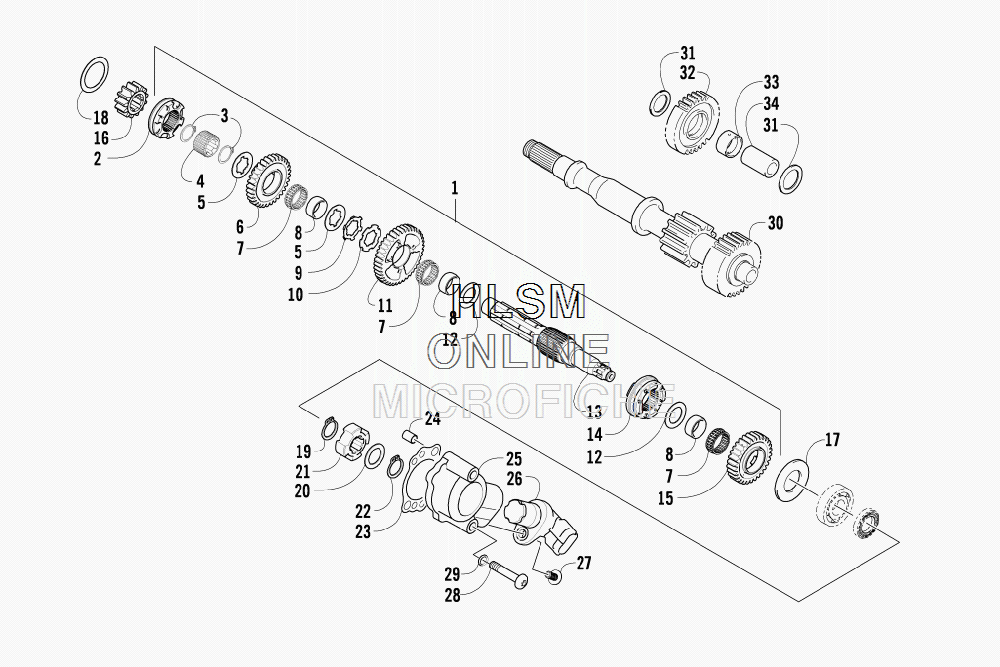

SECONDARY TRANSMISSION ASSEMBLY (UP TO ENGINE SERIAL NO. 0264069) для Arctic Cat 700 TRV GT METALLIC CAT GREEN INTERNATIONAL [A2011TBT1POSA] - 2011 года выпуска`
-
№АртикулНазвание
-
10822-091 COUNTERSHAFT ASSEMBLY (INC. 2-15)COUNTERSHAFT ASSEMBLY (INC. 2-15)
-
20822-014 ...GEAR SELECT, REVERSE...GEAR SELECT, REVERSE
-
30831-011 ...RING, RETAINING...RING, RETAINING
-
40822-045 ...SPACER, REVERSE DRIVEN GEAR...SPACER, REVERSE DRIVEN GEAR
-
50828-008 ...WASHER...WASHER
-
60822-013 ...GEAR, REVERSE DRIVEN...GEAR, REVERSE DRIVEN
-
70832-011 ...BEARING...BEARING
-
80822-005 ...BUSHING...BUSHING
-
90828-014 ...WASHER, LOCK...WASHER, LOCK
-
100828-015 ...WASHER, LOCK...WASHER, LOCK
-
110822-004 ...GEAR, DRIVEN - LOW...GEAR, DRIVEN - LOW
-
120822-046 ...WASHER...WASHER
-
130822-003 ...COUNTERSHAFT...COUNTERSHAFT
-
140822-007 ...GEAR SELECT, SLIDING...GEAR SELECT, SLIDING
-
150822-006 ...GEAR, DRIVEN - HIGH...GEAR, DRIVEN - HIGH
-
160822-089 GEAR, DRIVEGEAR, DRIVE
-
170828-011 WASHERWASHER
-
180828-019 WASHER, THRUSTWASHER, THRUST
-
190831-040 RING, RETAININGRING, RETAINING
-
200828-069 WASHER, THRUSTWASHER, THRUST
-
210822-050 TRIGGER, SPEEDOMETER SENSORTRIGGER, SPEEDOMETER SENSOR
-
220831-039 RING, RETAININGRING, RETAINING
-
230830-129 GASKETGASKET
-
240829-023 PIN, DOWELPIN, DOWEL
-
250822-049 HOUSING, SPEEDOMETER SENSORHOUSING, SPEEDOMETER SENSOR
-
260824-042 SENSOR, SPEEDOMETERSENSOR, SPEEDOMETER
-
278468-620 SCREW, MACHINESCREW, MACHINE
-
288468-645 SCREW, MACHINESCREW, MACHINE
-
290830-107 GASKETGASKET
-
300822-001 DRIVESHAFTDRIVESHAFT
-
310828-016 WASHER, THRUSTWASHER, THRUST
-
320822-011 GEAR, REVERSE IDLEGEAR, REVERSE IDLE
-
330822-012 BUSHINGBUSHING
-
340822-015 SHAFT, REVERSE IDLESHAFT, REVERSE IDLE
