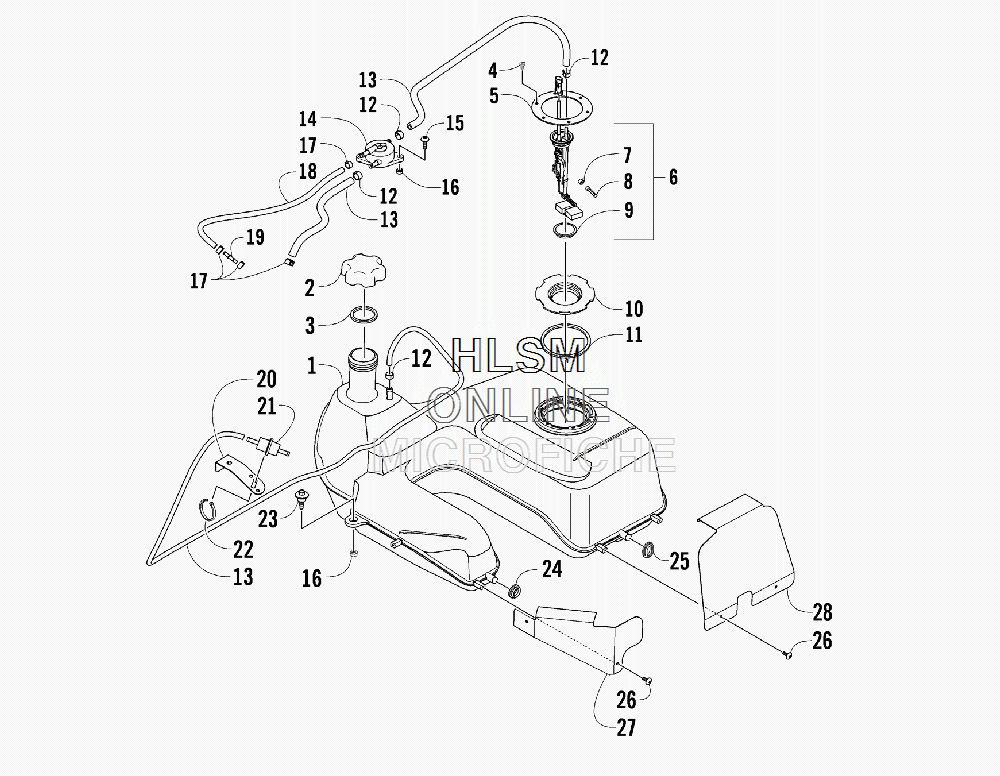

GAS TANK ASSEMBLY для Arctic Cat 650 GREEN [A2011ICS4BUSG] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    0570-286 TANK, GAS - ASSEMBLY (INC. 2-11)
    TANK, GAS - ASSEMBLY (INC. 2-11)
  • 2
    0470-438 ...CAP, GAS TANK (INC. 3)
    ...CAP, GAS TANK (INC. 3)
  • 3
    0109-733 ......GASKET, GAS TANK CAP
    ......GASKET, GAS TANK CAP
  • 4
    0423-898 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 5
    0470-848 ...PLATE, RETAINING
    ...PLATE, RETAINING
  • 6
    0570-251 ...SENSOR, FUEL LEVEL (INC. 7-9)
    ...SENSOR, FUEL LEVEL (INC. 7-9)
  • 7
    0423-603 ......CLAMP, HOSE
    ......CLAMP, HOSE
  • 8
    0470-475 ......FILTER, FUEL
    ......FILTER, FUEL
  • 9
    0470-521 ......SEAL, FUEL LEVEL SENSOR
    ......SEAL, FUEL LEVEL SENSOR
  • 10
    0470-847 ...ADAPTER, FUEL LEVEL SENSOR
    ...ADAPTER, FUEL LEVEL SENSOR
  • 11
    0470-838 ...SEAL
    ...SEAL
  • 12
    0423-688 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    0410-070 HOSE, GASLINE - 25 FT
    HOSE, GASLINE - 25 FT
  • 14
    0470-758 PUMP, FUEL
    PUMP, FUEL
  • 15
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 17
    0423-689 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    0410-143 HOSE, GASLINE - 25 FT
    HOSE, GASLINE - 25 FT
  • 19
    0470-702 FITTING, STRAIGHT
    FITTING, STRAIGHT
  • 20
    0470-827 BRACKET, FILTER MOUNTING
    BRACKET, FILTER MOUNTING
  • 21
    0510-335 FILTER, IN-LINE
    FILTER, IN-LINE
  • 22
    0123-788 TIE, CABLE - 8 IN.
    TIE, CABLE - 8 IN.
  • 23
    0423-732 SCREW, SHOULDER
    SCREW, SHOULDER
  • 24
    0423-460 GROMMET
    GROMMET
  • 25
    0423-806 GROMMET
    GROMMET
  • 26
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 27
    0470-709 SHIELD, HEAT - GAS TANK - FRONT
    SHIELD, HEAT - GAS TANK - FRONT
  • 28
    0470-710 SHIELD, HEAT - GAS TANK - REAR
    SHIELD, HEAT - GAS TANK - REAR
