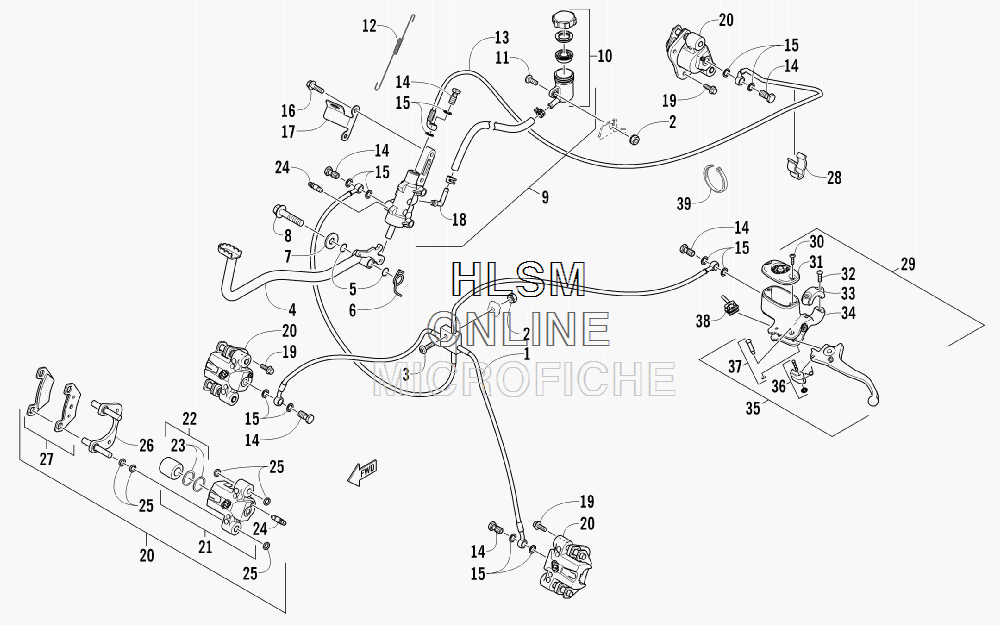

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat 550 CRUISER PS BLUE INTERNATIONAL [A2011TCO1POSD] - 2011 года выпуска`

№

Артикул

Название
1

1502-015 HOSE, BRAKE - ASSEMBLY

HOSE, BRAKE - ASSEMBLY

58 230 ₽
2

0623-038 NUT W/WASHER

NUT W/WASHER

40 ₽
3

8476-625 SCREW, MACHINE

SCREW, MACHINE

270 ₽
4

1502-063 LEVER, BRAKE

LEVER, BRAKE

12 680 ₽
5

1602-213 O-RING

O-RING

60 ₽
6

0502-807 SPRING, BRAKE LEVER

SPRING, BRAKE LEVER

2 490 ₽
7

8050-252 WASHER

WASHER

110 ₽
8

8408-816 SCREW, CAP

SCREW, CAP

110 ₽
9

1502-577 BRAKE ASSEMBLY (INC. 10)

BRAKE ASSEMBLY (INC. 10)

61 560 ₽
10

1502-578 ...RESERVOIR, BRAKE W/CLAMP

...RESERVOIR, BRAKE W/CLAMP

6 650 ₽
11

8476-616 SCREW, MACHINE

SCREW, MACHINE

60 ₽
12

0502-785 SPRING, BRAKE SWITCH

SPRING, BRAKE SWITCH

880 ₽
13

1502-591 HOSE, BRAKE

HOSE, BRAKE

22 460 ₽
14

0423-413 BOLT, BANJO-FITTING

BOLT, BANJO-FITTING

630 ₽
15

0423-178 WASHER, CRUSH

WASHER, CRUSH

270 ₽
16

8408-625 SCREW, CAP

SCREW, CAP

90 ₽
17

0502-840 BRACKET, SWITCH

BRACKET, SWITCH

2 490 ₽
18

1502-296 ADAPTER, HOSE

ADAPTER, HOSE

3 740 ₽
19

8408-821 SCREW, CAP

SCREW, CAP

170 ₽
20

1502-726 CALIPER, BRAKE - RIGHT FRONT (INC. TWO NO. 19 AND 21-27)

CALIPER, BRAKE - RIGHT FRONT (INC. TWO NO. 19 AND 21-27)

29 320 ₽
20

1502-727 CALIPER, BRAKE - LEFT FRONT (INC. TWO NO. 19 AND 21-27)

CALIPER, BRAKE - LEFT FRONT (INC. TWO NO. 19 AND 21-27)

28 910 ₽
20

1502-727 CALIPER, BRAKE - REAR (INC. TWO NO. 19 AND 21-27)

CALIPER, BRAKE - REAR (INC. TWO NO. 19 AND 21-27)

28 910 ₽
21

1436-160 ...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. TWO NO. 19 AND 22-24)

...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. TWO NO. 19 AND 22-24)

40 140 ₽
21

1436-161 ...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT (INC. TWO NO. 19 AND 22-24)

...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT (INC. TWO NO. 19 AND 22-24)

40 140 ₽
21

1436-161 ...HOUSING, CALIPER - ASSEMBLY - REAR (INC. TWO NO. 19 AND 22-24)

...HOUSING, CALIPER - ASSEMBLY - REAR (INC. TWO NO. 19 AND 22-24)

40 140 ₽
22

0502-606 ......PISTON/SEAL SET (INC. 23)

......PISTON/SEAL SET (INC. 23)

13 510 ₽
23

0502-607 .........SEAL SET

.........SEAL SET

4 570 ₽
24

0502-609 ......VALVE, BLEED

......VALVE, BLEED

3 950 ₽
25

0502-608 ...O-RING, GUIDE - SET

...O-RING, GUIDE - SET

4 570 ₽
26

0502-605 ...BRACKET ASSEMBLY

...BRACKET ASSEMBLY

24 330 ₽
27

1502-694 ...PAD, BRAKE - SET

...PAD, BRAKE - SET

9 350 ₽
28

1502-115 CLIP, BRAKE HOSE

CLIP, BRAKE HOSE

400 ₽
29

0502-914 BRAKE ASSEMBLY (INC. 30-38)

BRAKE ASSEMBLY (INC. 30-38)

48 460 ₽
30

0502-566 ...SCREW, MACHINE - KIT

...SCREW, MACHINE - KIT

980 ₽
31

0502-868 ...COVER, RESERVOIR

...COVER, RESERVOIR

12 890 ₽
32

0502-568 ...SCREW, MACHINE - KIT

...SCREW, MACHINE - KIT

3 110 ₽
33

0502-869 ...CLAMP, MASTER CYLINDER

...CLAMP, MASTER CYLINDER

7 900 ₽
34

0502-704 ...MASTER CYLINDER ASSEMBLY

...MASTER CYLINDER ASSEMBLY

28 700 ₽
35

0502-866 ...LEVER ASSEMBLY - KIT (INC. 36-37)

...LEVER ASSEMBLY - KIT (INC. 36-37)

17 670 ₽
36

0502-867 ......LOCK, BRAKE LEVER - KIT

......LOCK, BRAKE LEVER - KIT

3 110 ₽
37

0502-580 ......LEVER PIN - KIT

......LEVER PIN - KIT

3 110 ₽
38

0502-564 ...SWITCH, BRAKE

...SWITCH, BRAKE

8 730 ₽
39

0123-788 TIE, CABLE - 8 IN.

TIE, CABLE - 8 IN.

20 ₽
