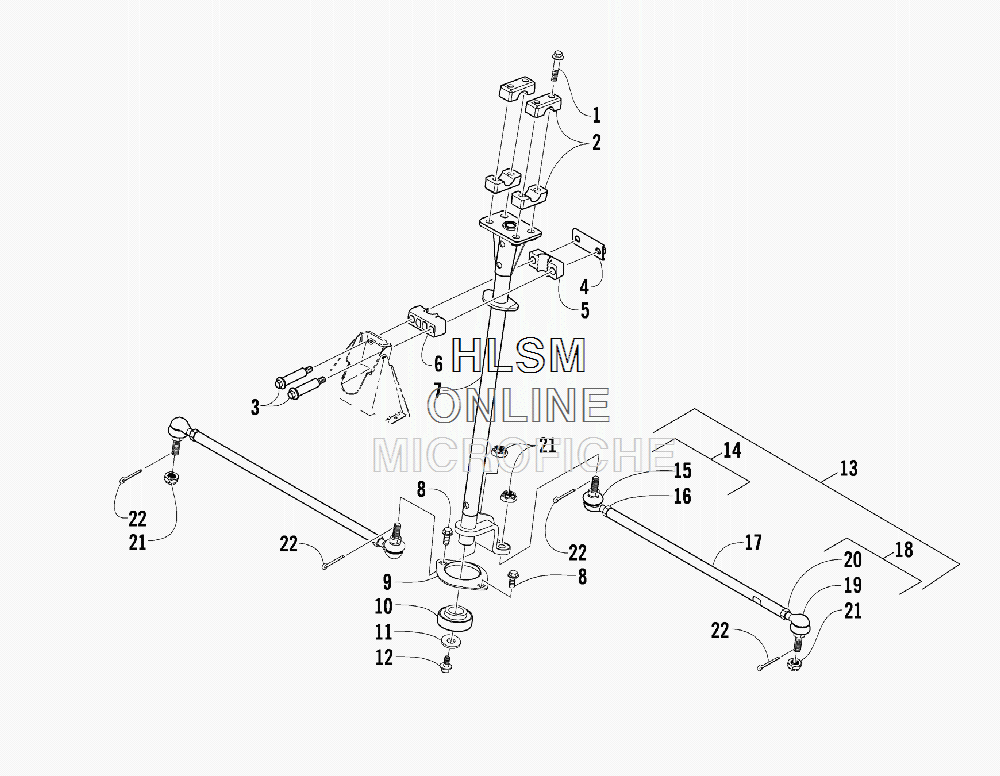

STEERING ASSEMBLY (UP TO VIN: 250000) для Arctic Cat 450 TRV RED INTERNATIONAL [A2011TBK4COSR] - 2011 года выпуска`
-
№АртикулНазвание
-
18408-860 SCREW, CAPSCREW, CAP
-
20405-035 CAP, STEERING ADJUSTERCAP, STEERING ADJUSTER
-
30423-505 SCREW, SHOULDERSCREW, SHOULDER
-
40505-484 CAP, HOUSINGCAP, HOUSING
-
50405-138 HOUSING, LOWERHOUSING, LOWER
-
60405-139 HOUSING, UPPERHOUSING, UPPER
-
70505-451 POST, STEERINGPOST, STEERING
-
88408-816 SCREW, CAPSCREW, CAP
-
90602-233 FLANGE, BEARINGFLANGE, BEARING
-
100405-052 BEARING W/INVERTED OIL SEALBEARING W/INVERTED OIL SEAL
-
110423-073 WASHERWASHER
-
128409-020 SCREW, CAPSCREW, CAP
-
130505-499 TIE ROD - ASSEMBLY (INC. 14-20)TIE ROD - ASSEMBLY (INC. 14-20)
-
140505-511 ...END, TIE ROD - LEFT-HAND THREAD - KIT (INC. 15-16)...END, TIE ROD - LEFT-HAND THREAD - KIT (INC. 15-16)
-
160423-013 ......NUT - LEFT-HAND THREAD......NUT - LEFT-HAND THREAD
-
170405-281 ...TIE ROD...TIE ROD
-
180505-510 ...END, TIE ROD - RIGHT-HAND THREAD - KIT (INC. 19-20)...END, TIE ROD - RIGHT-HAND THREAD - KIT (INC. 19-20)
-
208420-002 ......NUT - RIGHT-HAND THREAD......NUT - RIGHT-HAND THREAD
-
210423-157 NUT, LOCKNUT, LOCK
-
220623-175 PIN, COTTERPIN, COTTER
