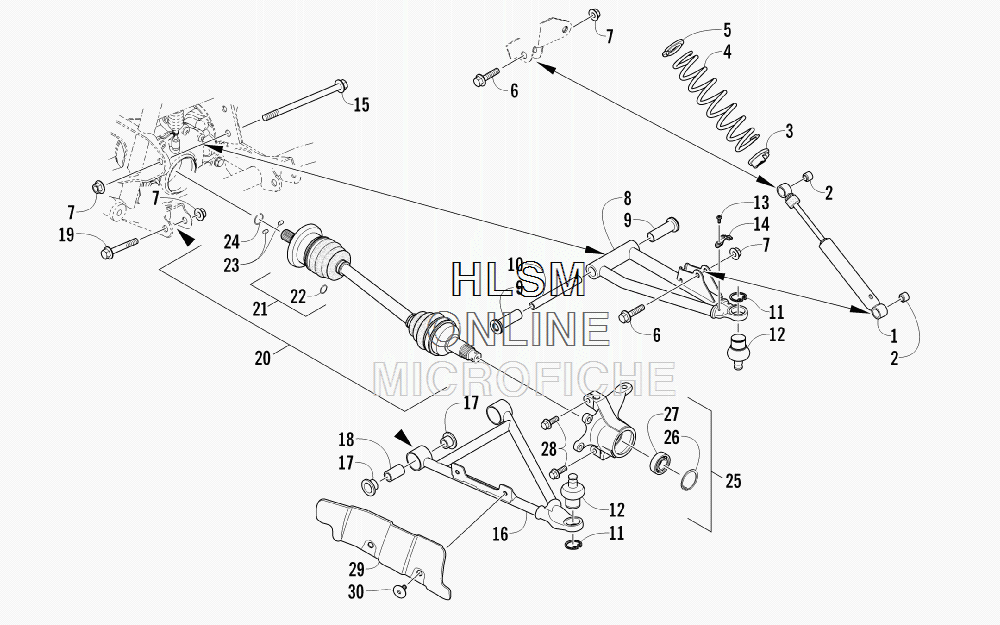

FRONT SUSPENSION ASSEMBLY для Arctic Cat 450 TRV RED [A2011TBK4CUSR] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    0403-209 SHOCK ABSORBER (INC. 2)
    SHOCK ABSORBER (INC. 2)
  • 2
    0403-182 ...BUSHING
    ...BUSHING
  • 3
    0403-102 CAM, SPRING ADJUSTER
    CAM, SPRING ADJUSTER
  • 4
    0503-468 SPRING, SUSPENSION - WHITE
    SPRING, SUSPENSION - WHITE
  • 5
    1603-889 RETAINER, SPRING
    RETAINER, SPRING
  • 6
    8409-040 SCREW, CAP
    SCREW, CAP
  • 7
    0423-744 NUT, LOCK
    NUT, LOCK
  • 8
    0503-416 A-ARM, UPPER RIGHT - BLACK (INC. 9-12)
    A-ARM, UPPER RIGHT - BLACK (INC. 9-12)
  • 8
    0503-417 A-ARM, UPPER LEFT - BLACK (INC. 9-12)
    A-ARM, UPPER LEFT - BLACK (INC. 9-12)
  • 9
    0403-207 ...BUSHING
    ...BUSHING
  • 10
    0403-080 ...AXLE
    ...AXLE
  • 11
    0423-009 ...RING, RETAINING
    ...RING, RETAINING
  • 12
    0405-115 ...BALL JOINT
    ...BALL JOINT
  • 13
    0423-946 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    1502-594 CLAMP, ROUTING
    CLAMP, ROUTING
  • 15
    0423-334 SCREW, CAP
    SCREW, CAP
  • 16
    0503-376 A-ARM, LOWER RIGHT - BLACK (INC. 17-18 AND TWO NO. 11-12)
    A-ARM, LOWER RIGHT - BLACK (INC. 17-18 AND TWO NO. 11-12)
  • 16
    0503-377 A-ARM, LOWER LEFT - BLACK (INC. 17-18 AND TWO NO. 11-12)
    A-ARM, LOWER LEFT - BLACK (INC. 17-18 AND TWO NO. 11-12)
  • 17
    0403-208 ...BUSHING
    ...BUSHING
  • 18
    0403-214 ...AXLE
    ...AXLE
  • 19
    8409-075 SCREW, CAP
    SCREW, CAP
  • 20
    1502-800 AXLE, DRIVE - RIGHT (INC. 21-24)
    AXLE, DRIVE - RIGHT (INC. 21-24)
  • 20
    1502-799 AXLE, DRIVE - LOCKING - LEFT (INC. 21-24)
    AXLE, DRIVE - LOCKING - LEFT (INC. 21-24)
  • 21
    1436-419 ...REPAIR KIT, BOOT (INC. 22)
    ...REPAIR KIT, BOOT (INC. 22)
  • 22
    1441-988 ......CLIP, RETAINING
    ......CLIP, RETAINING
  • 23
    1402-885 ...PIN, DETENT
    ...PIN, DETENT
  • 24
    1402-889 ...CLIP, RETAINING
    ...CLIP, RETAINING
  • 25
    0505-576 KNUCKLE - ASSEMBLY - RIGHT (INC. 26-27)
    KNUCKLE - ASSEMBLY - RIGHT (INC. 26-27)
  • 25
    0505-577 KNUCKLE - ASSEMBLY - LEFT (INC. 26-27)
    KNUCKLE - ASSEMBLY - LEFT (INC. 26-27)
  • 26
    0423-423 ...RING, RETAINING
    ...RING, RETAINING
  • 27
    1402-809 ...BEARING
    ...BEARING
  • 28
    8409-030 SCREW, CAP
    SCREW, CAP
  • 29
    1406-034 GUARD, BOOT - RIGHT - BLACK
    GUARD, BOOT - RIGHT - BLACK
  • 29
    1406-035 GUARD, BOOT - LEFT - BLACK
    GUARD, BOOT - LEFT - BLACK
  • 30
    0423-545 SCREW, SHOULDER
    SCREW, SHOULDER
