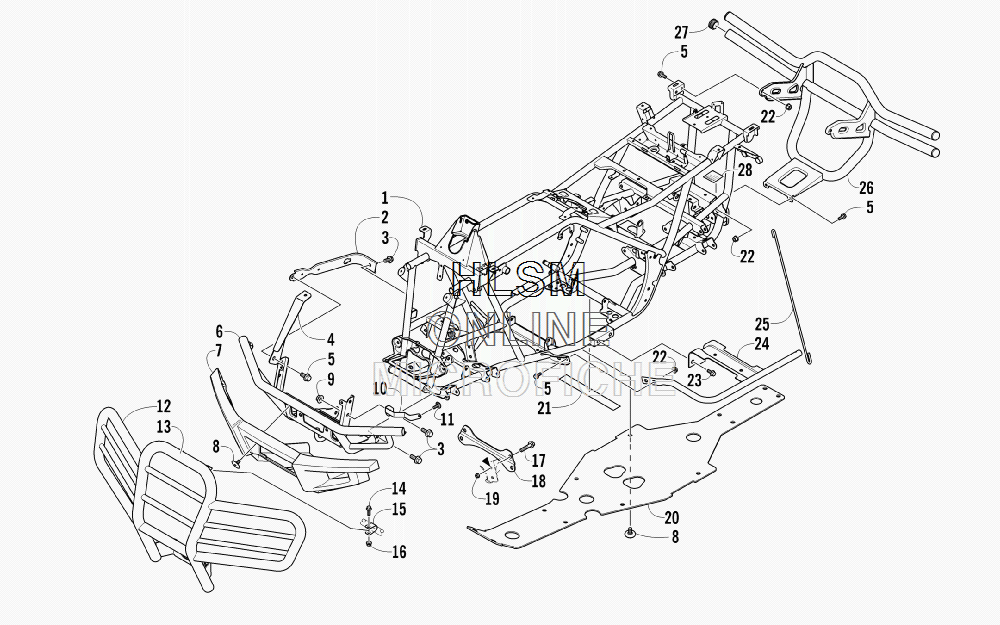

FRAME AND RELATED PARTS для Arctic Cat 450 METALLIC GRAY INTERNATIONAL [A2011ICK4COSS] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    2506-541 FRAME, MAIN
    FRAME, MAIN
  • 2
    1506-596 CHANNEL, BUMPER MOUNTING
    CHANNEL, BUMPER MOUNTING
  • 3
    8409-020 SCREW, CAP
    SCREW, CAP
  • 4
    1506-686 BRACKET, MOUNTING - BUMPER - RIGHT
    BRACKET, MOUNTING - BUMPER - RIGHT
  • 4
    1506-687 BRACKET, MOUNTING - BUMPER - LEFT
    BRACKET, MOUNTING - BUMPER - LEFT
  • 5
    8408-816 SCREW, CAP
    SCREW, CAP
  • 6
    1506-684 BUMPER, FRONT
    BUMPER, FRONT
  • 7
    1406-868 FASCIA, BUMPER - FRONT - BLACK
    FASCIA, BUMPER - FRONT - BLACK
  • 8
    0423-101 SCREW, SHOULDER
    SCREW, SHOULDER
  • 9
    8424-002 NUT
    NUT
  • 10
    2516-594 BRACKET, SUPPORT - RIGHT
    BRACKET, SUPPORT - RIGHT
  • 10
    2516-595 BRACKET, SUPPORT - LEFT
    BRACKET, SUPPORT - LEFT
  • 11
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 12
    1436-032 BUMPER, PUSH - FRONT (INC. 13-16)
    BUMPER, PUSH - FRONT (INC. 13-16)
  • 13
    0411-501 ...DECAL, BUMPER - "ARCTIC CAT"
    ...DECAL, BUMPER - "ARCTIC CAT"
  • 14
    8410-835 ...SCREW, CAP
    ...SCREW, CAP
  • 15
    2506-641 ...BRACKET, SUPPORT
    ...BRACKET, SUPPORT
  • 16
    8424-805 ...NUT
    ...NUT
  • 17
    8409-025 SCREW, CAP
    SCREW, CAP
  • 18
    2516-852 BRACE, A-ARM
    BRACE, A-ARM
  • 19
    0423-744 NUT, LOCK
    NUT, LOCK
  • 20
    1406-030 PANEL, BELLY
    PANEL, BELLY
  • 21
    0406-289 PAD, FRAME
    PAD, FRAME
  • 22
    8424-802 NUT
    NUT
  • 23
    8409-016 SCREW, CAP
    SCREW, CAP
  • 24
    1506-659 FOOTREST - RIGHT
    FOOTREST - RIGHT
  • 24
    1506-660 FOOTREST - LEFT
    FOOTREST - LEFT
  • 25
    2506-426 ROD, SUPPORT
    ROD, SUPPORT
  • 26
    1506-802 BUMPER, PUSH - REAR (INC. 27)
    BUMPER, PUSH - REAR (INC. 27)
  • 27
    2406-045 ...PLUG, HOLE
    ...PLUG, HOLE
  • 28
    1411-077 DECAL, WARNING - TOWING
    DECAL, WARNING - TOWING
