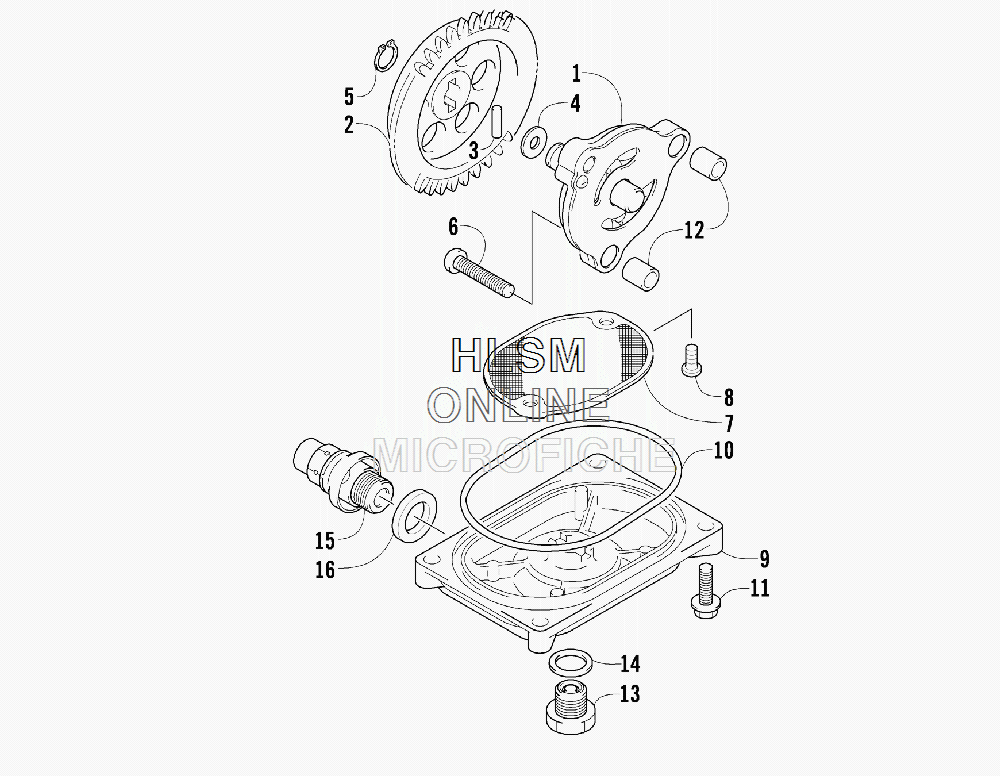

OIL PUMP AND STRAINER ASSEMBLY для Arctic Cat 425 GREEN [A2011IRK4CUSG] - 2011 года выпуска`
-
№АртикулНазвание
-
10812-069 PUMP, OILPUMP, OIL
-
20812-010 GEAR, DRIVENGEAR, DRIVEN
-
30812-036 PIN, DOWELPIN, DOWEL
-
40828-007 SHIM, 10 X 18 X .57.8X.5SHIM, 10 X 18 X .57.8X.5
-
53304-146 RING, RETAININGRING, RETAINING
-
60826-131 SCREW, MACHINESCREW, MACHINE
-
70812-049 STRAINER, OILSTRAINER, OIL
-
83313-722 SCREW, CAPSCREW, CAP
-
90812-038 CAP, OIL STRAINERCAP, OIL STRAINER
-
100830-159 O-RINGO-RING
-
113303-384 SCREW, CAPSCREW, CAP
-
120829-033 PIN, DOWELPIN, DOWEL
-
130812-065 PLUG, DRAINPLUG, DRAIN
-
140830-143 GASKETGASKET
-
150812-067 VALVE, OIL-RELIEF - ASSEMBLY (INC. 16)VALVE, OIL-RELIEF - ASSEMBLY (INC. 16)
-
160830-181 ...O-RING...O-RING
