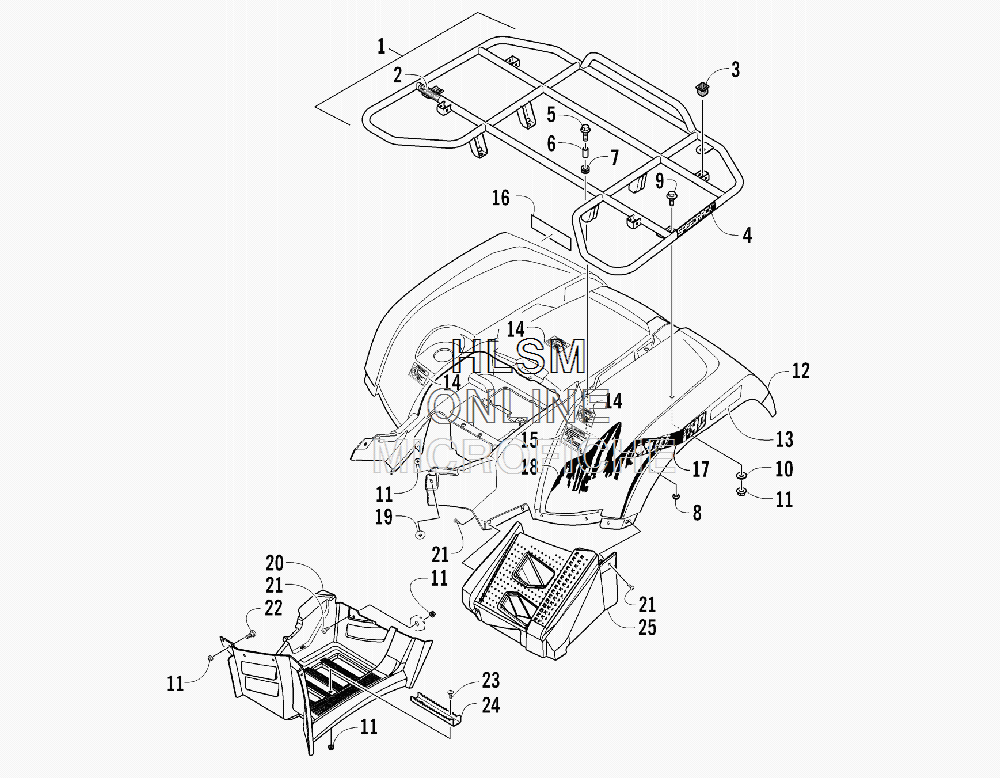

REAR RACK- BODY PANEL- AND FOOTWELL ASSEMBLIES для Arctic Cat 1000 MUD PRO GREEN-BLACK [A2011IFW4EUSM] - 2011 года выпуска`
-
№АртикулНазвание
-
12516-317 RACK, REAR - ASSEMBLY (INC. 2-3)RACK, REAR - ASSEMBLY (INC. 2-3)
-
20411-648 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
30441-592 ...BUSHING, RACK...BUSHING, RACK
-
40411-965 DECAL, "SPEEDRACK"DECAL, "SPEEDRACK"
-
58410-830 SCREW, CAPSCREW, CAP
-
60423-669 SPACERSPACER
-
70423-465 GROMMETGROMMET
-
88432-802 NUT, LOCKNUT, LOCK
-
90423-654 SCREW, SHOULDERSCREW, SHOULDER
-
108050-222 WASHERWASHER
-
110423-540 NUT, LOCKNUT, LOCK
-
122516-752 PANEL, FENDER - ASSEMBLY - BLACK (INC. 13-15)PANEL, FENDER - ASSEMBLY - BLACK (INC. 13-15)
-
131411-592 ...DECAL, REFLECTOR - RIGHT - RED...DECAL, REFLECTOR - RIGHT - RED
-
131411-593 ...DECAL, REFLECTOR - LEFT - RED...DECAL, REFLECTOR - LEFT - RED
-
141411-809 ...DECAL, PASSENGER...DECAL, PASSENGER
-
152411-143 ...DECAL, WARNING - TIRE PRESSURE...DECAL, WARNING - TIRE PRESSURE
-
162411-277 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
172411-272 DECAL, "MUD PRO" - RIGHTDECAL, "MUD PRO" - RIGHT
-
172411-273 DECAL, "MUD PRO" - LEFTDECAL, "MUD PRO" - LEFT
-
182411-382 DECAL, SIDE - LOWER RIGHTDECAL, SIDE - LOWER RIGHT
-
182411-383 DECAL, SIDE - LOWER LEFTDECAL, SIDE - LOWER LEFT
-
190423-101 SCREW, SHOULDERSCREW, SHOULDER
-
202506-856 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
202506-857 FOOTWELL - LEFTFOOTWELL - LEFT
-
210423-419 SCREW, MACHINESCREW, MACHINE
-
228468-625 SCREW, MACHINESCREW, MACHINE
-
230423-355 SCREW, SHOULDERSCREW, SHOULDER
-
241506-125 FOOTPEGFOOTPEG
-
252416-326 CLOSURE, FOOTWELL - RIGHTCLOSURE, FOOTWELL - RIGHT
-
252416-327 CLOSURE, FOOTWELL - LEFTCLOSURE, FOOTWELL - LEFT
