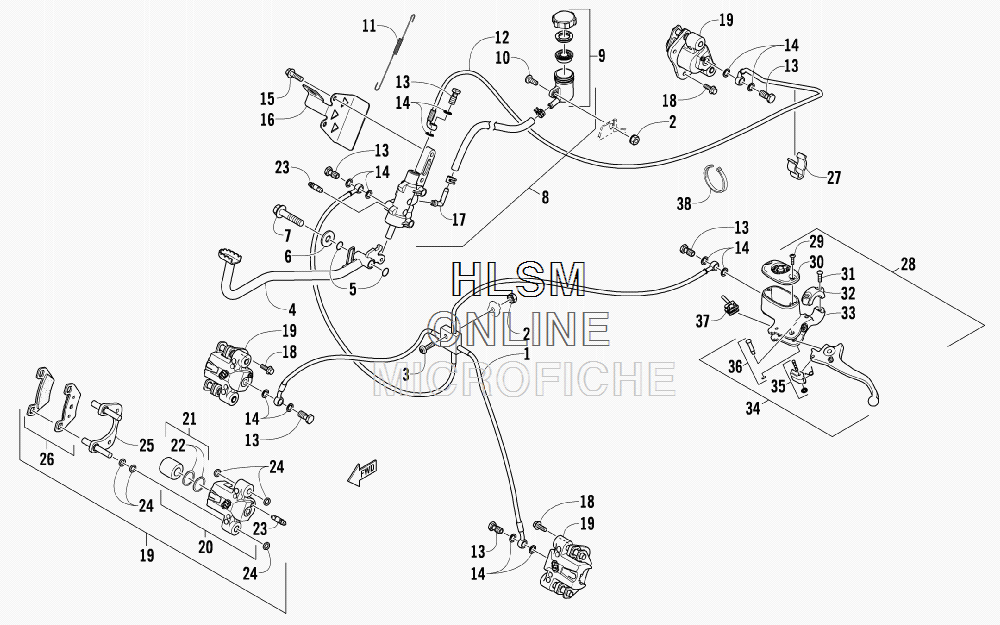

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat 1000 LTD GREEN-BLACK INTERNATIONAL [A2011UIEW1POSM] - 2011 года выпуска`
-
№АртикулНазвание
-
11502-015 HOSE, BRAKE - ASSEMBLYHOSE, BRAKE - ASSEMBLY
-
20623-038 NUT W/WASHERNUT W/WASHER
-
38476-625 SCREW, MACHINESCREW, MACHINE
-
41502-162 LEVER, BRAKELEVER, BRAKE
-
51602-213 O-RINGO-RING
-
68050-252 WASHERWASHER
-
78408-816 SCREW, CAPSCREW, CAP
-
81502-293 BRAKE ASSEMBLY (INC. 9)BRAKE ASSEMBLY (INC. 9)
-
91502-155 ...RESERVOIR, BRAKE W/CLAMP...RESERVOIR, BRAKE W/CLAMP
-
108476-616 SCREW, MACHINESCREW, MACHINE
-
110502-785 SPRING, BRAKE SWITCHSPRING, BRAKE SWITCH
-
121502-593 HOSE, BRAKEHOSE, BRAKE
-
130423-413 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
140423-178 WASHER, CRUSHWASHER, CRUSH
-
158408-625 SCREW, CAPSCREW, CAP
-
161502-164 BRACKET, SWITCHBRACKET, SWITCH
-
171502-296 ADAPTER, HOSEADAPTER, HOSE
-
188408-821 SCREW, CAPSCREW, CAP
-
191502-726 CALIPER, BRAKE - RIGHT FRONT (INC. TWO NO. 18 AND 20-26)CALIPER, BRAKE - RIGHT FRONT (INC. TWO NO. 18 AND 20-26)
-
191502-727 CALIPER, BRAKE - LEFT FRONT (INC. TWO NO. 18 AND 20-26)CALIPER, BRAKE - LEFT FRONT (INC. TWO NO. 18 AND 20-26)
-
191502-727 CALIPER, BRAKE - REAR (INC. TWO NO. 18 AND 20-26)CALIPER, BRAKE - REAR (INC. TWO NO. 18 AND 20-26)
-
201436-160 ...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. TWO NO. 18 AND 21-23)...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. TWO NO. 18 AND 21-23)
-
201436-161 ...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT (INC. TWO NO. 18 AND 21-23)...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT (INC. TWO NO. 18 AND 21-23)
-
201436-161 ...HOUSING, CALIPER - ASSEMBLY - REAR (INC. TWO NO. 18 AND 21-23)...HOUSING, CALIPER - ASSEMBLY - REAR (INC. TWO NO. 18 AND 21-23)
-
210502-606 ......PISTON/SEAL SET (INC. 22)......PISTON/SEAL SET (INC. 22)
-
220502-607 LLL SEAL SETLLL SEAL SET
-
230502-609 ......VALVE, BLEED......VALVE, BLEED
-
240502-608 ...O-RING, GUIDE - SET...O-RING, GUIDE - SET
-
250502-605 ...BRACKET ASSEMBLY...BRACKET ASSEMBLY
-
261502-694 ...PAD, BRAKE - SET...PAD, BRAKE - SET
-
271502-115 CLIP, BRAKE HOSECLIP, BRAKE HOSE
-
280502-914 BRAKE ASSEMBLY (INC. 29-37)BRAKE ASSEMBLY (INC. 29-37)
-
290502-566 ...SCREW, MACHINE - KIT...SCREW, MACHINE - KIT
-
300502-868 ...COVER, RESERVOIR...COVER, RESERVOIR
-
310502-568 ...SCREW, MACHINE - KIT...SCREW, MACHINE - KIT
-
320502-869 ...CLAMP, MASTER CYLINDER...CLAMP, MASTER CYLINDER
-
330502-704 ...MASTER CYLINDER ASSEMBLY...MASTER CYLINDER ASSEMBLY
-
340502-866 ...LEVER ASSEMBLY - KIT (INC. 35-36)...LEVER ASSEMBLY - KIT (INC. 35-36)
-
350502-867 ......LOCK, BRAKE LEVER - KIT......LOCK, BRAKE LEVER - KIT
-
360502-580 ......LEVER PIN - KIT......LEVER PIN - KIT
-
370502-564 ...SWITCH, BRAKE...SWITCH, BRAKE
-
380123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
