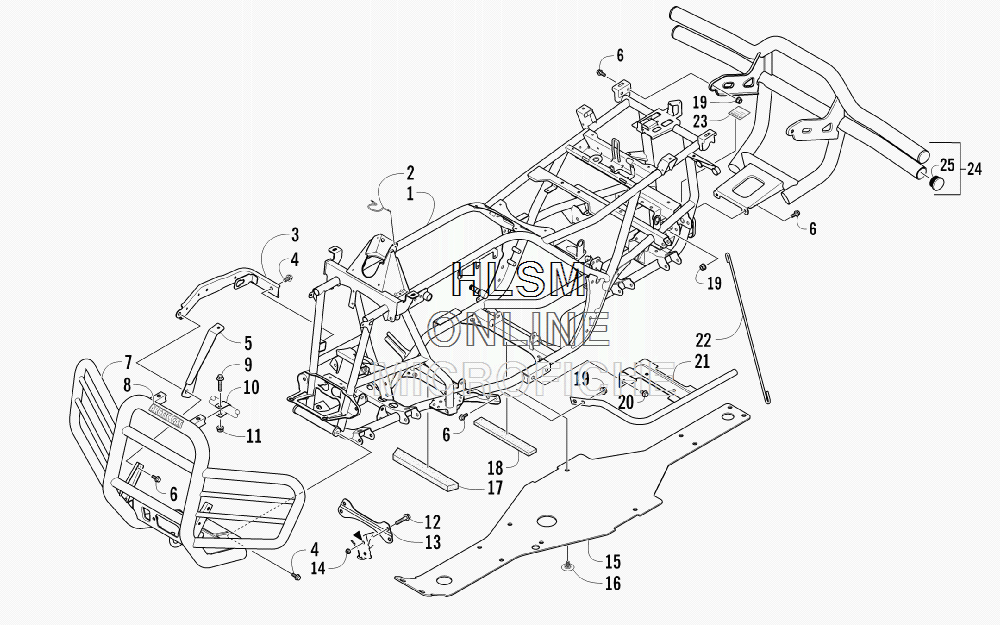

FRAME AND RELATED PARTS для Arctic Cat 1000 LTD GREEN-BLACK [A2011UIEW1PUSM] - 2011 года выпуска

  • №
    Артикул
    Название
  • 1
    4506-387 FRAME, MAIN
    FRAME, MAIN
  • 2
    2416-401 CLIP, ROUTING
    CLIP, ROUTING
  • 3
    2506-813 CHANNEL, MOUNTING - BUMPER - RIGHT
    CHANNEL, MOUNTING - BUMPER - RIGHT
  • 3
    2506-285 CHANNEL, MOUNTING - BUMPER - LEFT
    CHANNEL, MOUNTING - BUMPER - LEFT
  • 4
    8409-020 SCREW, CAP
    SCREW, CAP
  • 5
    1506-562 BRACKET, MOUNTING - BUMPER - RIGHT
    BRACKET, MOUNTING - BUMPER - RIGHT
  • 5
    1506-563 BRACKET, MOUNTING - BUMPER - LEFT
    BRACKET, MOUNTING - BUMPER - LEFT
  • 6
    8408-816 SCREW, CAP
    SCREW, CAP
  • 7
    2506-639 BUMPER, FRONT
    BUMPER, FRONT
  • 8
    0411-501 DECAL, BUMPER - "ARCTIC CAT"
    DECAL, BUMPER - "ARCTIC CAT"
  • 9
    8410-835 SCREW, CAP
    SCREW, CAP
  • 10
    2506-641 STRAP, SUPPORT - BUMPER
    STRAP, SUPPORT - BUMPER
  • 11
    8424-805 NUT
    NUT
  • 12
    8409-025 SCREW, CAP
    SCREW, CAP
  • 13
    2516-852 BRACE, A-ARM
    BRACE, A-ARM
  • 14
    0423-744 NUT, LOCK
    NUT, LOCK
  • 15
    2406-648 PANEL, BELLY
    PANEL, BELLY
  • 16
    0423-101 SCREW, SHOULDER
    SCREW, SHOULDER
  • 17
    2506-701 PAD, FOAM
    PAD, FOAM
  • 18
    0406-289 PAD, FOAM
    PAD, FOAM
  • 19
    8424-802 NUT
    NUT
  • 20
    8409-016 SCREW, CAP
    SCREW, CAP
  • 21
    2506-449 FOOTREST - RIGHT
    FOOTREST - RIGHT
  • 21
    1506-379 FOOTREST - LEFT
    FOOTREST - LEFT
  • 22
    2506-423 ROD, SUPPORT
    ROD, SUPPORT
  • 23
    1411-077 DECAL, WARNING - TOWING
    DECAL, WARNING - TOWING
  • 24
    0541-607 BUMPER, REAR (INC. 25)
    BUMPER, REAR (INC. 25)
  • 25
    0406-130 ...PLUG, HOLE
    ...PLUG, HOLE
