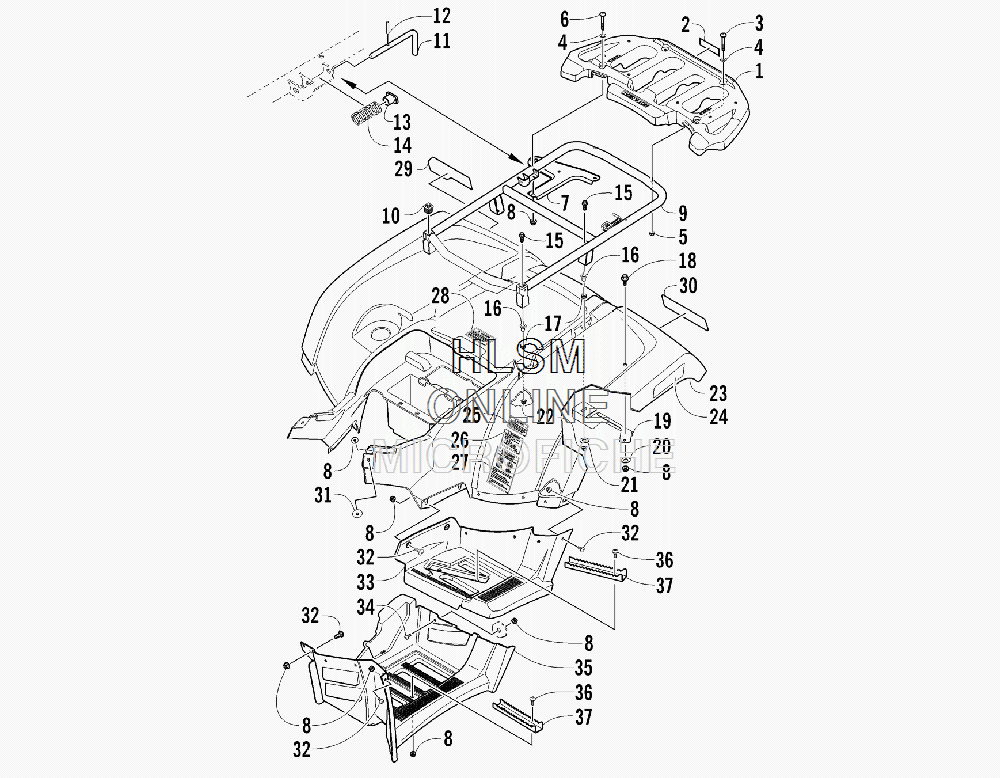

REAR RACK- BODY PANEL- AND FOOTWELL ASSEMBLIES для Arctic Cat TRV 700 S EFI METALLIC GRAY [A2010TBT1PUSS] - 2010 года выпуска`
-
№АртикулНазвание
-
12516-339 COVER, RACK (INC. 2)COVER, RACK (INC. 2)
-
21411-201 ...DECAL, WARNING - LOAD...DECAL, WARNING - LOAD
-
38410-640 SCREW, CAPSCREW, CAP
-
48050-223 WASHERWASHER
-
50423-891 NUT, CAPNUT, CAP
-
68410-645 SCREW, CAPSCREW, CAP
-
72506-926 BRACKET, MOUNTING - SAFETY FLAGBRACKET, MOUNTING - SAFETY FLAG
-
80423-540 NUT, LOCKNUT, LOCK
-
92516-169 RACK, REAR - ASSEMBLY (INC. 10-14)RACK, REAR - ASSEMBLY (INC. 10-14)
-
100441-592 ...BUSHING...BUSHING
-
110541-504 ...PIN - ASSEMBLY (INC. 12-14)...PIN - ASSEMBLY (INC. 12-14)
-
120423-635 ......PIN, ROLL......PIN, ROLL
-
130423-677 ......BUSHING, FLANGED......BUSHING, FLANGED
-
140423-636 ......SPRING......SPRING
-
158410-835 SCREW, CAPSCREW, CAP
-
160423-669 SPACERSPACER
-
170423-465 GROMMETGROMMET
-
180423-654 SCREW, SHOULDERSCREW, SHOULDER
-
192506-092 BRACKET, REAR FENDER - RIGHTBRACKET, REAR FENDER - RIGHT
-
192506-093 BRACKET, REAR FENDER - LEFTBRACKET, REAR FENDER - LEFT
-
208050-222 WASHERWASHER
-
210423-087 WASHERWASHER
-
228432-802 NUT, LOCKNUT, LOCK
-
232516-906 FENDER, REAR - ASSEMBLY - METALLIC GRAY (INC. 24-28)FENDER, REAR - ASSEMBLY - METALLIC GRAY (INC. 24-28)
-
241411-592 ...DECAL, REFLECTOR - RIGHT - RED...DECAL, REFLECTOR - RIGHT - RED
-
241411-593 ...DECAL, REFLECTOR - LEFT - RED...DECAL, REFLECTOR - LEFT - RED
-
251411-269 ...DECAL, WARNING - PASSENGER...DECAL, WARNING - PASSENGER
-
262411-138 ...DECAL, WARNING - TIRE PRESSURE...DECAL, WARNING - TIRE PRESSURE
-
271411-956 ...DECAL, WARNING - PASSENGER SAFETY...DECAL, WARNING - PASSENGER SAFETY
-
281411-251 ...DECAL, WARNING - PASSENGER SEAT...DECAL, WARNING - PASSENGER SEAT
-
292411-194 DECAL, 700DECAL, 700
-
302411-192 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
310423-101 SCREW, SHOULDERSCREW, SHOULDER
-
320423-419 SCREW, MACHINESCREW, MACHINE
-
332406-042 FOOTWELL, REAR - RIGHTFOOTWELL, REAR - RIGHT
-
332406-043 FOOTWELL, REAR - LEFTFOOTWELL, REAR - LEFT
-
348477-620 SCREW, MACHINESCREW, MACHINE
-
351506-813 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
352406-471 FOOTWELL - LEFTFOOTWELL - LEFT
-
360423-355 SCREW, SHOULDERSCREW, SHOULDER
-
371506-125 FOOTPEGFOOTPEG
