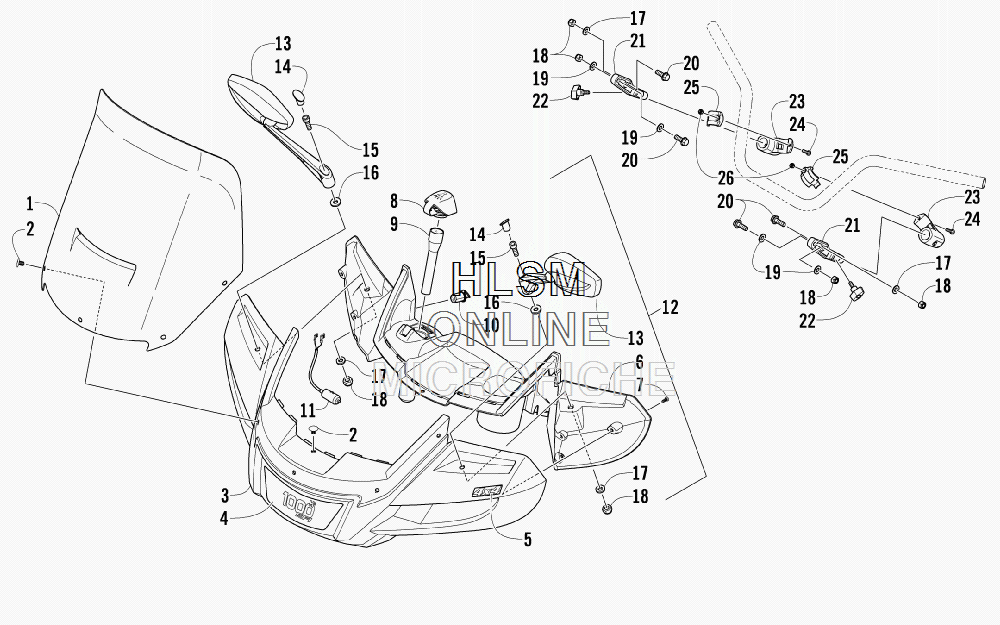

WINDSHIELD ASSEMBLY для Arctic Cat TRV 1000 H2 EFI CRUISER RED [A2010TCW4EUSI] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0405-384 WINDSHIELD
    WINDSHIELD
  • 2
    0423-767 CLIP, RETAINING
    CLIP, RETAINING
  • 3
    0505-620 BASE, WINDSHIELD - DESERT RED
    BASE, WINDSHIELD - DESERT RED
  • 4
    1411-987 DECAL, BASE - 1000 EFI
    DECAL, BASE - 1000 EFI
  • 5
    1411-989 DECAL, BASE - "4X4"
    DECAL, BASE - "4X4"
  • 6
    0405-332 CONSOLE - BLACK
    CONSOLE - BLACK
  • 7
    0423-950 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 8
    0405-353 COVER, FLASHLIGHT
    COVER, FLASHLIGHT
  • 9
    1441-839 FLASHLIGHT
    FLASHLIGHT
  • 10
    0641-897 OUTLET, ACCESSORY - 12V
    OUTLET, ACCESSORY - 12V
  • 11
    0486-319 ADAPTER, HARNESS - OUTLET ACCESSORY
    ADAPTER, HARNESS - OUTLET ACCESSORY
  • 12
    1436-326 KIT, MIRROR (INC. 13-16 AND TWO NO. 17-18)
    KIT, MIRROR (INC. 13-16 AND TWO NO. 17-18)
  • 13
    0405-322 ...MIRROR - RIGHT
    ...MIRROR - RIGHT
  • 13
    0405-323 ...MIRROR - LEFT
    ...MIRROR - LEFT
  • 14
    0423-952 ...PLUG
    ...PLUG
  • 15
    8440-835 ...SCREW, CAP
    ...SCREW, CAP
  • 16
    0423-951 ...WASHER, RUBBER
    ...WASHER, RUBBER
  • 17
    8450-128 ...WASHER
    ...WASHER
  • 18
    8431-803 ...NUT
    ...NUT
  • 19
    0423-948 WASHER
    WASHER
  • 20
    0423-949 SCREW, CAP
    SCREW, CAP
  • 21
    0405-352 PIN, MOUNTING - TAPERED
    PIN, MOUNTING - TAPERED
  • 22
    1441-624 KNOB, ADJUSTER
    KNOB, ADJUSTER
  • 23
    0405-350 CLAMP, HANDLEBAR
    CLAMP, HANDLEBAR
  • 24
    8471-520 SCREW, MACHINE
    SCREW, MACHINE
  • 25
    0405-351 CAP, HANDLEBAR CLAMP
    CAP, HANDLEBAR CLAMP
  • 26
    8431-503 NUT, LOCK
    NUT, LOCK
