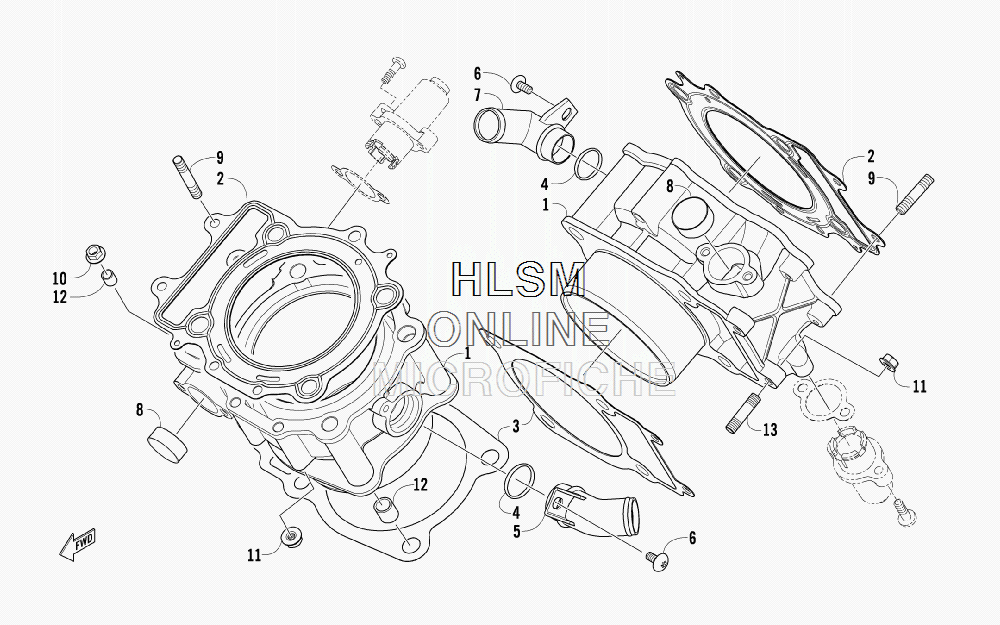

CYLINDER ASSEMBLY для Arctic Cat THUNDERCAT 1000 H2 LE (METALLIC CAT GREEN) [A2010IEW4EUSM] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0804-031 CYLINDER
    CYLINDER
  • 2
    0830-209 GASKET, HEAD
    GASKET, HEAD
  • 3
    0830-127 GASKET, BASE
    GASKET, BASE
  • 4
    0830-007 O-RING
    O-RING
  • 5
    0804-046 UNION, COOLANT HOSE
    UNION, COOLANT HOSE
  • 6
    8468-612 SCREW, MACHINE
    SCREW, MACHINE
  • 7
    0804-030 UNION, COOLANT HOSE
    UNION, COOLANT HOSE
  • 8
    0804-037 PLUG, CYLINDER
    PLUG, CYLINDER
  • 9
    0827-002 STUD, M6 X 1 X 38
    STUD, M6 X 1 X 38
  • 10
    8424-804 NUT, HEX-FLG M8X1.25 CL8 RIE SIL
    NUT, HEX-FLG M8X1.25 CL8 RIE SIL
  • 11
    8424-604 NUT, HEX-FLG M6X1.0 CL8 RIE SIL
    NUT, HEX-FLG M6X1.0 CL8 RIE SIL
  • 12
    0829-002 DOWEL, SPLIT, 13 X 18
    DOWEL, SPLIT, 13 X 18
  • 13
    0827-018 STUD, M6 X 1 X 32
    STUD, M6 X 1 X 32
