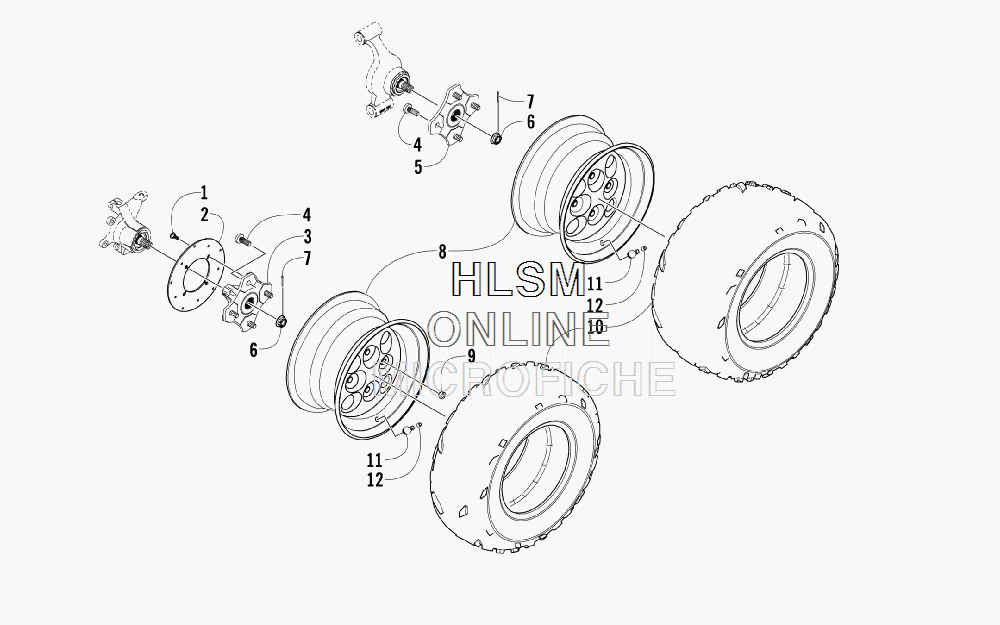

WHEEL AND TIRE ASSEMBLY для Arctic Cat TBX 700 H1 EFI (BLACK) [A2010BBT4EUSP] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0423-557 SCREW, SHOULDER
    SCREW, SHOULDER
  • 2
    1436-164 DISC, BRAKE
    DISC, BRAKE
  • 3
    3323-100 HUB, WHEEL - FRONT (INC. 4)
    HUB, WHEEL - FRONT (INC. 4)
  • 4
    0402-974 ...STUD
    ...STUD
  • 5
    3323-100 HUB, WHEEL - REAR - RIGHT (INC. 4)
    HUB, WHEEL - REAR - RIGHT (INC. 4)
  • 5
    3323-113 HUB,ASSEMBLY (W/O BRAKE DISC) - REAR - LEFT (INC. 4)
    HUB,ASSEMBLY (W/O BRAKE DISC) - REAR - LEFT (INC. 4)
  • 6
    0423-607 NUT, CASTLE
    NUT, CASTLE
  • 7
    0423-407 PIN, COTTER
    PIN, COTTER
  • 8
    1402-776 WHEEL-PLATINUM-12 X 6.0 - FRONT
    WHEEL-PLATINUM-12 X 6.0 - FRONT
  • 8
    1402-777 WHEEL-PLATINUM-12 X 7.5 REAR
    WHEEL-PLATINUM-12 X 7.5 REAR
  • 9
    0423-408 NUT, LUG
    NUT, LUG
  • 10
    1402-658 TIRE, DUNLOP-AT25X8-12 QUADMAX - FRONT
    TIRE, DUNLOP-AT25X8-12 QUADMAX - FRONT
  • 10
    1402-659 TIRE, DUNLOP-AT25X10-12 QUADMAX - REAR
    TIRE, DUNLOP-AT25X10-12 QUADMAX - REAR
  • 11
    0402-064 STEM, VALVE (INC. 12)
    STEM, VALVE (INC. 12)
  • 12
    0402-140 ...CAP, VALVE STEM
    ...CAP, VALVE STEM
