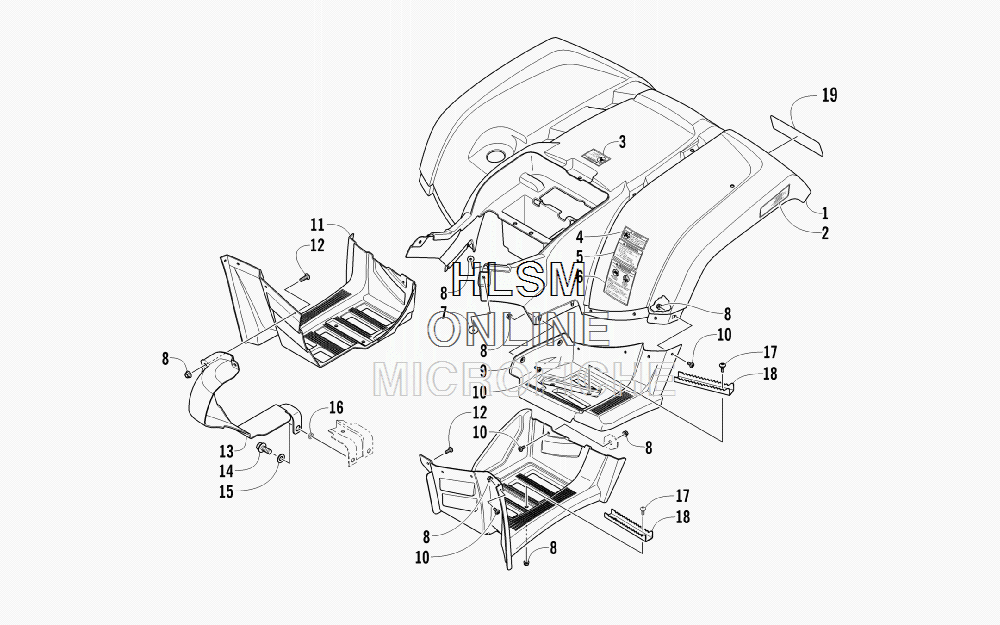

REAR BODY PANEL AND FOOTWELL ASSEMBLIES для Arctic Cat SUPER DUTY DIESEL INTERNATIONAL BLACK [A2010TBT4DOSP] - 2010 года выпуска`
-
№АртикулНазвание
-
10518-063 FENDER, REAR - ASSEMBLY - BLACK (INC. 2-6)FENDER, REAR - ASSEMBLY - BLACK (INC. 2-6)
-
21411-592 ...DECAL, REFLECTOR - RIGHT - RED...DECAL, REFLECTOR - RIGHT - RED
-
21411-593 ...DECAL, REFLECTOR - LEFT - RED...DECAL, REFLECTOR - LEFT - RED
-
31411-251 ...DECAL, WARNING - PASSENGER SEAT...DECAL, WARNING - PASSENGER SEAT
-
41411-269 ...DECAL, WARNING - PASSENGER...DECAL, WARNING - PASSENGER
-
52411-138 ...DECAL, WARNING - TIRE PRESSURE...DECAL, WARNING - TIRE PRESSURE
-
61411-956 ...DECAL, WARNING - PASSENGER SAFETY...DECAL, WARNING - PASSENGER SAFETY
-
70423-101 SCREW, SHOULDERSCREW, SHOULDER
-
80423-540 NUT, LOCKNUT, LOCK
-
92406-042 FOOTWELL, REAR - RIGHTFOOTWELL, REAR - RIGHT
-
92406-043 FOOTWELL, REAR - LEFTFOOTWELL, REAR - LEFT
-
100423-419 SCREW, MACHINESCREW, MACHINE
-
112506-193 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
112406-471 FOOTWELL - LEFTFOOTWELL - LEFT
-
128477-620 SCREW, MACHINESCREW, MACHINE
-
132406-531 PANEL, SPLASHPANEL, SPLASH
-
148409-020 SCREW, CAPSCREW, CAP
-
158050-282 WASHERWASHER
-
160405-261 SPACERSPACER
-
170423-355 SCREW, SHOULDERSCREW, SHOULDER
-
181506-125 FOOTPEGFOOTPEG
-
191411-724 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
