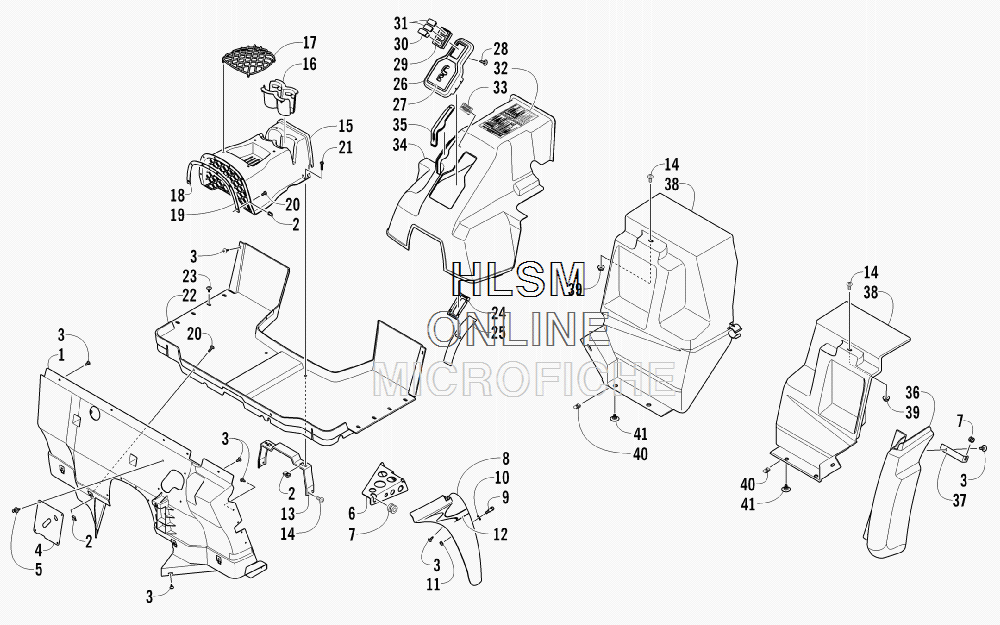

CONSOLE AND FLOOR PANEL ASSEMBLY для Arctic Cat PROWLER XTZ 1000 INTERNATIONAL METALLIC CAT GREEN [U2010P4W4EOSA] Engine Serial Number 0950T80010060 and Up - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    2516-456 PANEL, FENDER - INNER
    PANEL, FENDER - INNER
  • 2
    0423-577 CLIP, U-NUT
    CLIP, U-NUT
  • 3
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 4
    2406-635 PANEL, SPLASH - INNER FENDER
    PANEL, SPLASH - INNER FENDER
  • 5
    0623-362 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 6
    2506-066 BRACKET, SUPPORT - RIGHT
    BRACKET, SUPPORT - RIGHT
  • 6
    2506-067 BRACKET, SUPPORT - LEFT
    BRACKET, SUPPORT - LEFT
  • 7
    0423-447 GROMMET
    GROMMET
  • 8
    2516-184 FENDER, FRONT - RIGHT - METALLIC CAT GREEN (4EUSA/4EOSA)
    FENDER, FRONT - RIGHT - METALLIC CAT GREEN (4EUSA/4EOSA)
  • 8
    2516-185 FENDER, FRONT - LEFT - METALLIC CAT GREEN (4EUSA/4EOSA)
    FENDER, FRONT - LEFT - METALLIC CAT GREEN (4EUSA/4EOSA)
  • 9
    0623-855 SCREW, SHOULDER
    SCREW, SHOULDER
  • 10
    8050-217 WASHER
    WASHER
  • 11
    8048-366 NUT, LOCK
    NUT, LOCK
  • 12
    2411-062 DECAL, FRONT FENDER - RIGHT (4EUSA/4EOSA)
    DECAL, FRONT FENDER - RIGHT (4EUSA/4EOSA)
  • 12
    2411-063 DECAL, FRONT FENDER - LEFT (4EUSA/4EOSA)
    DECAL, FRONT FENDER - LEFT (4EUSA/4EOSA)
  • 13
    2516-313 BRACKET, SUPPORT
    BRACKET, SUPPORT
  • 14
    8476-616 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    2416-081 CONSOLE - FRONT
    CONSOLE - FRONT
  • 16
    2416-109 INSERT, CUPHOLDER
    INSERT, CUPHOLDER
  • 17
    2416-111 NET, STORAGE
    NET, STORAGE
  • 18
    0417-019 FOAM, CONSOLE
    FOAM, CONSOLE
  • 19
    0417-018 FOAM, CONSOLE
    FOAM, CONSOLE
  • 20
    8468-625 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    8468-670 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    2416-085 FLOOR
    FLOOR
  • 23
    0423-545 SCREW, SHOULDER
    SCREW, SHOULDER
  • 24
    1402-793 SLIDE, SHIFT GATE
    SLIDE, SHIFT GATE
  • 25
    1402-794 SLIDE, SHIFT
    SLIDE, SHIFT
  • 26
    1502-520 GATE, SHIFT (INC. 27)
    GATE, SHIFT (INC. 27)
  • 27
    1411-985 ...DECAL, SHIFT GATE
    ...DECAL, SHIFT GATE
  • 28
    0423-342 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 29
    0409-069 PANEL, SWITCH-MOUNT
    PANEL, SWITCH-MOUNT
  • 30
    0409-071 SWITCH, REVERSE OVERRIDE
    SWITCH, REVERSE OVERRIDE
  • 31
    0409-070 PLUG, SWITCH-HOLE
    PLUG, SWITCH-HOLE
  • 32
    2411-095 DECAL, WARNING - CONSOLE
    DECAL, WARNING - CONSOLE
  • 33
    2411-094 DECAL, WARNING - BRAKE LEVER
    DECAL, WARNING - BRAKE LEVER
  • 34
    2406-951 CONSOLE, CENTER
    CONSOLE, CENTER
  • 35
    2406-960 BOOT, PARKING BRAKE LEVER
    BOOT, PARKING BRAKE LEVER
  • 36
    2516-196 FENDER, REAR - LOWER - RIGHT - METALLIC CAT GREEN (4EUSA/4EOSA)
    FENDER, REAR - LOWER - RIGHT - METALLIC CAT GREEN (4EUSA/4EOSA)
  • 36
    2516-197 FENDER, REAR - LOWER - LEFT - METALLIC CAT GREEN (4EUSA/4EOSA)
    FENDER, REAR - LOWER - LEFT - METALLIC CAT GREEN (4EUSA/4EOSA)
  • 37
    2516-326 BRACKET, FENDER SUPPORT - LOWER
    BRACKET, FENDER SUPPORT - LOWER
  • 38
    2416-018 PANEL, SPLASH - RIGHT
    PANEL, SPLASH - RIGHT
  • 38
    2416-019 PANEL, SPLASH - LEFT
    PANEL, SPLASH - LEFT
  • 39
    8424-602 NUT
    NUT
  • 40
    0423-577 CLIP, U-NUT - UP TO VIN: 300932
    CLIP, U-NUT - UP TO VIN: 300932
  • 40
    0423-466 CLIP, U-NUT - VIN: 300933 AND UP
    CLIP, U-NUT - VIN: 300933 AND UP
  • 41
    0423-101 SCREW, SHOULDER - UP TO VIN: 300932
    SCREW, SHOULDER - UP TO VIN: 300932
  • 41
    0423-545 SCREW, SHOULDER - VIN: 300933 AND UP
    SCREW, SHOULDER - VIN: 300933 AND UP
