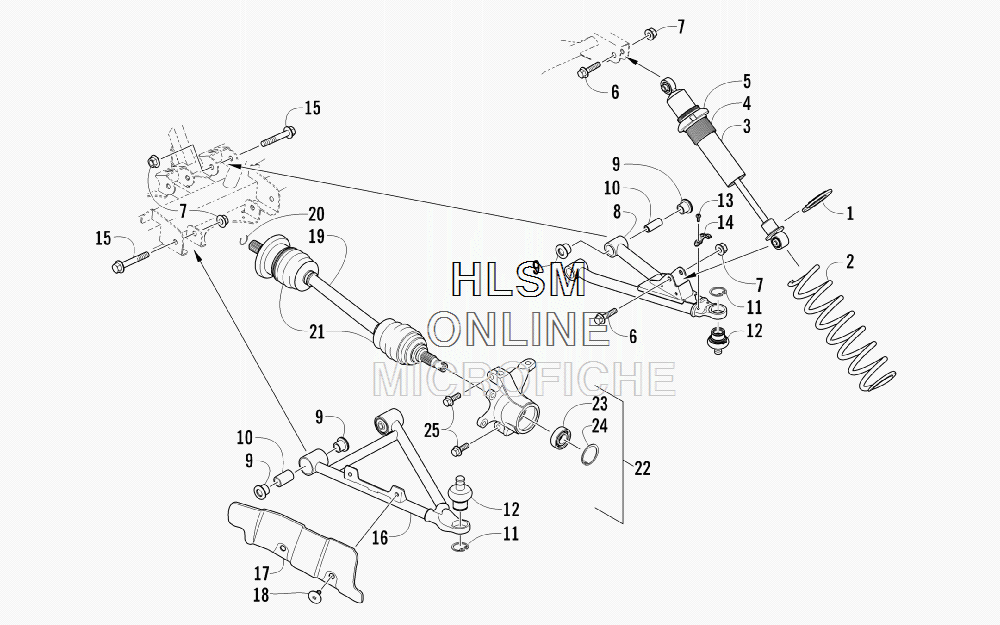

FRONT SUSPENSION ASSEMBLY для Arctic Cat PROWLER XTZ 1000 DESERT RED [U2010P4W4EUSI] Engine Serial Number 0950T80010060 and Up - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0423-920 RETAINER, SPRING
    RETAINER, SPRING
  • 2
    0503-437 SPRING, SUSPENSION - WHITE (4EUSI/4EOSI)
    SPRING, SUSPENSION - WHITE (4EUSI/4EOSI)
  • 3
    0403-215 SHOCK ABSORBER (INC. 4)
    SHOCK ABSORBER (INC. 4)
  • 4
    0423-917 ...SLEEVE, SHOCK - THREADED
    ...SLEEVE, SHOCK - THREADED
  • 5
    0423-919 NUT, SPRING RETAINER
    NUT, SPRING RETAINER
  • 6
    8409-055 SCREW, CAP
    SCREW, CAP
  • 7
    8428-002 NUT, LOCK
    NUT, LOCK
  • 8
    0503-440 A-ARM, UPPER RIGHT - PLATINUM (INC. 9-12) (4EUSI/4EOSI)
    A-ARM, UPPER RIGHT - PLATINUM (INC. 9-12) (4EUSI/4EOSI)
  • 8
    0503-441 A-ARM, UPPER LEFT - PLATINUM (INC. 9-12) (4EUSI/4EOSI)
    A-ARM, UPPER LEFT - PLATINUM (INC. 9-12) (4EUSI/4EOSI)
  • 9
    0403-208 ...BUSHING
    ...BUSHING
  • 10
    0403-214 ...AXLE
    ...AXLE
  • 11
    0423-009 ...RING, RETAINING
    ...RING, RETAINING
  • 12
    0405-115 ...BALL JOINT
    ...BALL JOINT
  • 13
    0423-946 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    1502-594 CLAMP, ROUTING
    CLAMP, ROUTING
  • 15
    8409-075 SCREW, CAP
    SCREW, CAP
  • 16
    0503-380 A-ARM, LOWER RIGHT - PLATINUM (INC. 9-12) (4EUSI/4EOSI)
    A-ARM, LOWER RIGHT - PLATINUM (INC. 9-12) (4EUSI/4EOSI)
  • 16
    0503-381 A-ARM, LOWER LEFT - PLATINUM (INC. 9-12) (4EUSI/4EOSI)
    A-ARM, LOWER LEFT - PLATINUM (INC. 9-12) (4EUSI/4EOSI)
  • 17
    1406-034 GUARD, BOOT - RIGHT - BLACK
    GUARD, BOOT - RIGHT - BLACK
  • 17
    1406-035 GUARD, BOOT - LEFT - BLACK
    GUARD, BOOT - LEFT - BLACK
  • 18
    0423-545 SCREW, SHOULDER
    SCREW, SHOULDER
  • 19
    1502-347 AXLE - FRONT - RIGHT (INC. 20-21)
    AXLE - FRONT - RIGHT (INC. 20-21)
  • 19
    1502-348 AXLE - FRONT - LOCKING - LEFT (INC. 20-21)
    AXLE - FRONT - LOCKING - LEFT (INC. 20-21)
  • 20
    0423-844 ...RING, RETAINING
    ...RING, RETAINING
  • 21
    1436-207 ...REPAIR KIT, BOOT - FRONT AXLE
    ...REPAIR KIT, BOOT - FRONT AXLE
  • 22
    0505-580 KNUCKLE - ASSEMBLY - RIGHT (INC. 23-24)
    KNUCKLE - ASSEMBLY - RIGHT (INC. 23-24)
  • 22
    0505-581 KNUCKLE - ASSEMBLY - LEFT (INC. 23-24)
    KNUCKLE - ASSEMBLY - LEFT (INC. 23-24)
  • 23
    1402-809 ...BEARING
    ...BEARING
  • 24
    0423-423 ...RING, RETAINING
    ...RING, RETAINING
  • 25
    8409-030 SCREW, CAP
    SCREW, CAP
