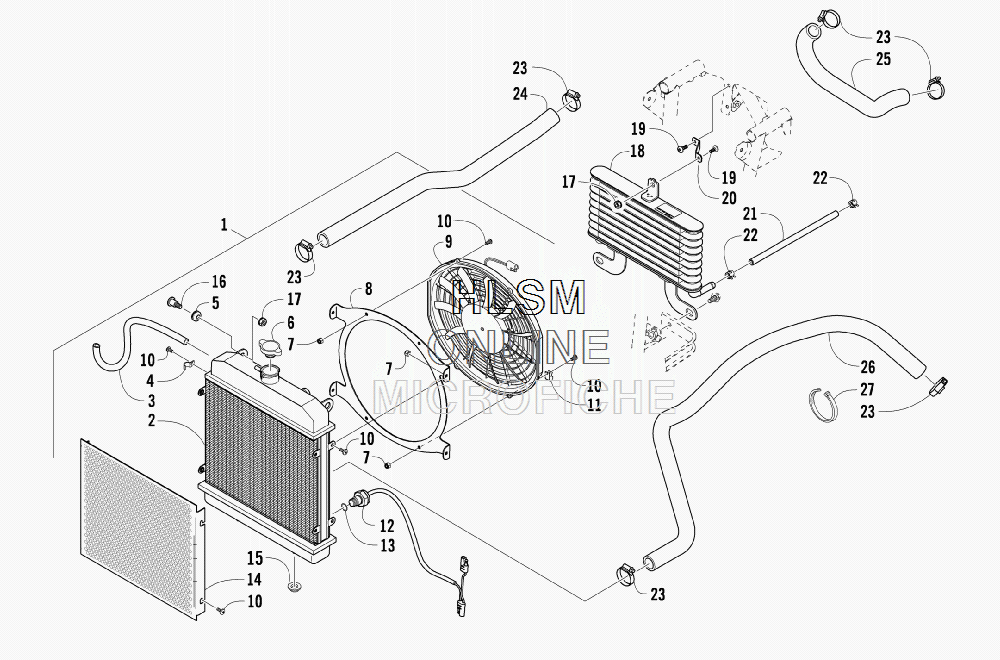

COOLING ASSEMBLY для Arctic Cat MUDPRO 650 H1 (CAT GREEN) [A2010IFS4BUSZ] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0513-039 RADIATOR ASSEMBLY (INC. 2-14)
    RADIATOR ASSEMBLY (INC. 2-14)
  • 2
    0413-205 ...RADIATOR
    ...RADIATOR
  • 3
    0610-016 ...HOSE - 25 FT
    ...HOSE - 25 FT
  • 3
    0610-015 ...HOSE - 100 FT
    ...HOSE - 100 FT
  • 4
    0423-351 ...CLAMP, WIRE
    ...CLAMP, WIRE
  • 5
    0423-030 ...GROMMET
    ...GROMMET
  • 6
    0413-255 ...CAP, RADIATOR
    ...CAP, RADIATOR
  • 7
    8422-502 ...NUT, LOCK
    ...NUT, LOCK
  • 8
    0413-240 ...BRACKET, RETAINING
    ...BRACKET, RETAINING
  • 9
    0413-123 ...FAN, COOLING
    ...FAN, COOLING
  • 10
    8475-512 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 11
    0123-397 ...CLAMP, ROUTING
    ...CLAMP, ROUTING
  • 12
    0413-168 ...SENSOR, ENGINE COOLANT TEMPERATURE
    ...SENSOR, ENGINE COOLANT TEMPERATURE
  • 13
    1602-213 ...O-RING
    ...O-RING
  • 14
    0413-007 ...SCREEN, RADIATOR
    ...SCREEN, RADIATOR
  • 15
    0423-028 BUSHING, STEM
    BUSHING, STEM
  • 16
    0423-484 SCREW, SHOULDER
    SCREW, SHOULDER
  • 17
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 18
    0413-211 COOLER, OIL
    COOLER, OIL
  • 19
    8476-612 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    0513-022 BRACKET, MOUNTING - OIL COOLER
    BRACKET, MOUNTING - OIL COOLER
  • 21
    0410-127 HOSE, OIL COOLER
    HOSE, OIL COOLER
  • 22
    0423-632 CLAMP, HOSE
    CLAMP, HOSE
  • 23
    0423-496 CLAMP, HOSE
    CLAMP, HOSE
  • 24
    0410-002 HOSE, COOLANT - UPPER
    HOSE, COOLANT - UPPER
  • 25
    0410-022 HOSE, COOLANT - CROSSOVER
    HOSE, COOLANT - CROSSOVER
  • 26
    0410-041 HOSE, COOLANT - LOWER
    HOSE, COOLANT - LOWER
  • 27
    0623-751 TIE, CABLE - 11.75 IN.
    TIE, CABLE - 11.75 IN.
