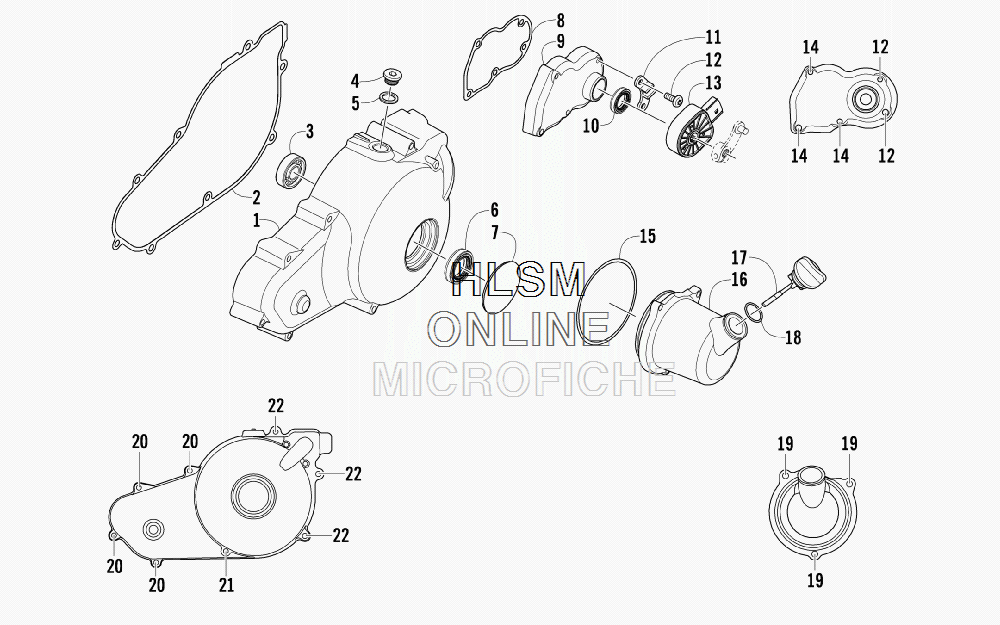

MAGNETO SIDE ENGINE COVERS для Arctic Cat MUDPRO 1000 H2 - Ver 1 Engine Number 0950T40010059 and Bellow WHITE [A2010IFW4EUSW] - 2010 года выпуска

  • №
    Артикул
    Название
  • 1
    0806-062 COVER, MAGNETO
    COVER, MAGNETO
  • 2
    0830-132 GASKET, MAGNETO COVER
    GASKET, MAGNETO COVER
  • 3
    0832-010 BEARING
    BEARING
  • 4
    0806-022 PLUG, CHECK
    PLUG, CHECK
  • 5
    0830-015 WASHER, CRUSH
    WASHER, CRUSH
  • 6
    0830-176 SEAL
    SEAL
  • 7
    0806-066 CAP, MAGNETO COVER
    CAP, MAGNETO COVER
  • 8
    0830-161 GASKET, GEAR SHIFT COVER
    GASKET, GEAR SHIFT COVER
  • 9
    0818-070 COVER, GEAR SHIFT
    COVER, GEAR SHIFT
  • 10
    0830-044 SEAL
    SEAL
  • 11
    0818-104 BRACKET, ALIGNMENT - SWITCH
    BRACKET, ALIGNMENT - SWITCH
  • 12
    8468-640 SCREW, MACHINE
    SCREW, MACHINE
  • 13
    0409-125 SWITCH, GEAR POSITION
    SWITCH, GEAR POSITION
  • 14
    8468-630 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    0830-162 O-RING, OIL FILLER COVER
    O-RING, OIL FILLER COVER
  • 16
    0801-081 COVER, OIL FILLER
    COVER, OIL FILLER
  • 17
    0801-073 STICK, OIL LEVEL (INC. 18)
    STICK, OIL LEVEL (INC. 18)
  • 18
    0830-010 ...O-RING
    ...O-RING
  • 19
    8468-620 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    8468-650 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    8468-695 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    8468-665 SCREW, MACHINE
    SCREW, MACHINE
