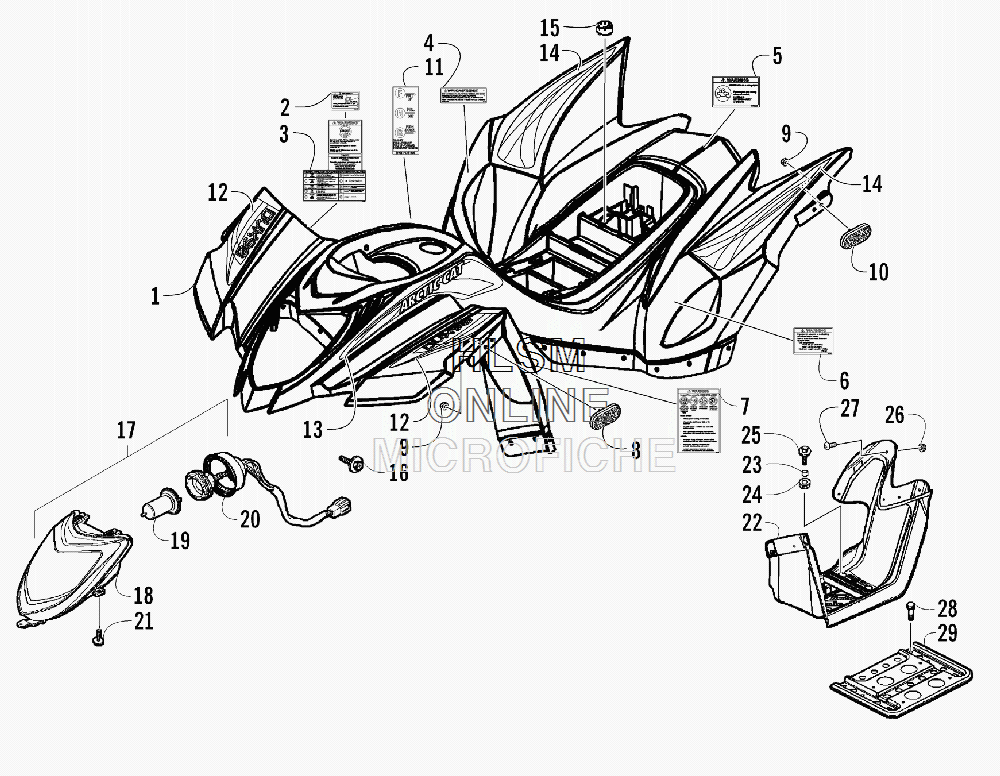

BODY PANEL AND HEADLIGHT ASSEMBLY для Arctic Cat 90 DVX WHITE [A2010KSB2BUSF] - 2010 года выпуска
-
№АртикулНазвание
-
13306-102 PANEL, BODY - MAIN - WHITE (INC. 2-10)PANEL, BODY - MAIN - WHITE (INC. 2-10)
-
20411-836 ...DECAL, WARNING - HILL...DECAL, WARNING - HILL
-
32411-136 ...DECAL, WARNING - REVERSE/PRE-RIDE...DECAL, WARNING - REVERSE/PRE-RIDE
-
41411-577 ...DECAL, WARNING - NOT FOR HIGHWAYS...DECAL, WARNING - NOT FOR HIGHWAYS
-
51411-809 ...DECAL, WARNING - PASSENGER...DECAL, WARNING - PASSENGER
-
61411-938 ...DECAL, WARNING - TIRE/LOAD...DECAL, WARNING - TIRE/LOAD
-
72411-169 ...DECAL, WARNING - GENERAL...DECAL, WARNING - GENERAL
-
83313-359 ...REFLECTOR - FRONT - AMBER...REFLECTOR - FRONT - AMBER
-
93304-774 ...NUT...NUT
-
103313-360 ...REFLECTOR - REAR - RED...REFLECTOR - REAR - RED
-
112411-052 DECAL, SHIFTDECAL, SHIFT
-
121411-968 DECAL, FRONT FENDER - RIGHTDECAL, FRONT FENDER - RIGHT
-
121411-969 DECAL, FRONT FENDER - LEFTDECAL, FRONT FENDER - LEFT
-
131411-966 DECAL, SIDE - RIGHTDECAL, SIDE - RIGHT
-
131411-967 DECAL, SIDE - LEFTDECAL, SIDE - LEFT
-
141411-970 DECAL, REAR FENDER - RIGHTDECAL, REAR FENDER - RIGHT
-
141411-971 DECAL, REAR FENDER - LEFTDECAL, REAR FENDER - LEFT
-
153303-232 GROMMET, RUBBERGROMMET, RUBBER
-
163304-587 SCREW, CAPSCREW, CAP
-
173304-280 HEADLIGHT - ASSEMBLY (INC. 18-20)HEADLIGHT - ASSEMBLY (INC. 18-20)
-
183304-281 ...LENS, HEADLIGHT...LENS, HEADLIGHT
-
193303-846 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
203304-282 ...SOCKET ASSEMBLY...SOCKET ASSEMBLY
-
213304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
223306-144 MUDGUARD, RIGHT - ASSEMBLY (INC. 23-24)MUDGUARD, RIGHT - ASSEMBLY (INC. 23-24)
-
223306-145 MUDGUARD, LEFT - ASSEMBLY (INC. 23-24)MUDGUARD, LEFT - ASSEMBLY (INC. 23-24)
-
233303-233 ...SPACER...SPACER
-
243303-227 ...BUSHING...BUSHING
-
253304-586 SCREW, CAPSCREW, CAP
-
263304-431 NUT, LOCKNUT, LOCK
-
273305-703 SCREW, MACHINESCREW, MACHINE
-
283304-543 SCREW, CAPSCREW, CAP
-
293304-494 SUPPORT, MUDGUARD - RIGHTSUPPORT, MUDGUARD - RIGHT
-
293304-495 SUPPORT, MUDGUARD - LEFTSUPPORT, MUDGUARD - LEFT
