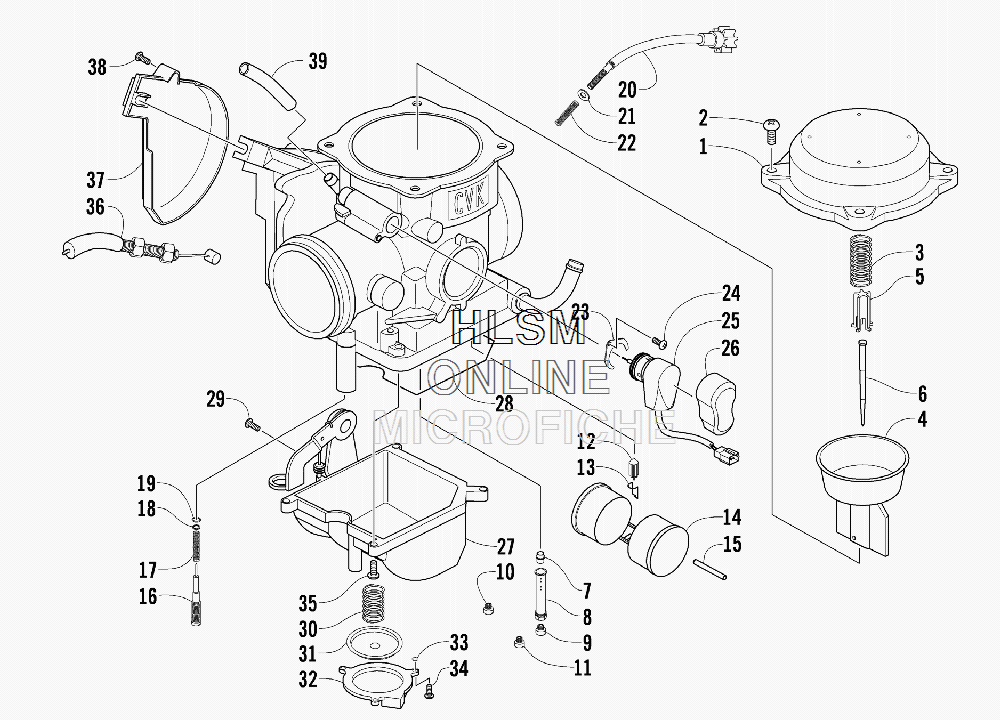

CARBURETOR для Arctic Cat 650 H1 (BLACK) [A2010ICS4BUSP] - 2010 года выпуска`
-
№АртикулНазвание
-
-0470-882 COMPLETE CARBURETOR ASSEMBLYCOMPLETE CARBURETOR ASSEMBLY
-
15507-001 COVER, TOPCOVER, TOP
-
25507-002 SCREW, MACHINESCREW, MACHINE
-
35507-066 SPRINGSPRING
-
45507-099 PISTON, VACUUMPISTON, VACUUM
-
55507-005 SEAT, SPRINGSEAT, SPRING
-
65507-201 JET NEEDLEJET NEEDLE
-
75507-007 NEEDLE JETNEEDLE JET
-
85507-047 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
95507-075 MAIN JET - 132MAIN JET - 132
-
95507-072 MAIN JET - 125 - OPTIONALMAIN JET - 125 - OPTIONAL
-
95507-073 MAIN JET - 128 - OPTIONALMAIN JET - 128 - OPTIONAL
-
95507-074 MAIN JET - 130 - OPTIONALMAIN JET - 130 - OPTIONAL
-
95507-057 MAIN JET - 135 - OPTIONALMAIN JET - 135 - OPTIONAL
-
95507-076 MAIN JET - 138 - OPTIONALMAIN JET - 138 - OPTIONAL
-
95507-043 MAIN JET - 142 - OPTIONALMAIN JET - 142 - OPTIONAL
-
95507-042 MAIN JET - 145 - OPTIONALMAIN JET - 145 - OPTIONAL
-
95507-041 MAIN JET - 148 - OPTIONALMAIN JET - 148 - OPTIONAL
-
95507-009 MAIN JET - 150 - OPTIONALMAIN JET - 150 - OPTIONAL
-
95507-077 MAIN JET - 152 - OPTIONALMAIN JET - 152 - OPTIONAL
-
95507-078 MAIN JET - 155 - OPTIONALMAIN JET - 155 - OPTIONAL
-
105507-070 SLOW JET - 40SLOW JET - 40
-
115507-112 STARTER JET - 85STARTER JET - 85
-
125507-183 VALVE, FLOAT - SET (INC. 13)VALVE, FLOAT - SET (INC. 13)
-
145507-039 FLOAT SET (INC. 15)FLOAT SET (INC. 15)
-
165507-213 SET SCREW, PILOT (INC. 17-19)SET SCREW, PILOT (INC. 17-19)
-
205507-027 SCREW, IDLE ADJUSTSCREW, IDLE ADJUST
-
215507-028 WASHERWASHER
-
225507-029 SPRINGSPRING
-
235507-115 PLATEPLATE
-
245507-117 SCREW, MACHINESCREW, MACHINE
-
255507-204 CHOKE, ELECTRICCHOKE, ELECTRIC
-
265507-114 COVER, ELECTRIC CHOKECOVER, ELECTRIC CHOKE
-
275507-214 CHAMBER, FLOAT - ASSEMBLY (INC. 28-34)CHAMBER, FLOAT - ASSEMBLY (INC. 28-34)
-
285507-067 ...O-RING, FLOAT CHAMBER...O-RING, FLOAT CHAMBER
-
295507-050 ...SCREW, DRAIN...SCREW, DRAIN
-
305507-211 ...SPRING...SPRING
-
315507-197 ...DIAPHRAGM ASSEMBLY - PUMP HOUSING...DIAPHRAGM ASSEMBLY - PUMP HOUSING
-
325507-198 ...HOUSING, PUMP...HOUSING, PUMP
-
335507-034 ...U-RING...U-RING
-
345507-035 ...SCREW, MACHINE...SCREW, MACHINE
-
355507-017 SCREW, MACHINESCREW, MACHINE
-
360487-049 CABLE, THROTTLECABLE, THROTTLE
-
375507-036 COVERCOVER
-
385507-037 SCREW, MACHINESCREW, MACHINE
-
390410-048 HOSE, VENT - 25 FTHOSE, VENT - 25 FT
