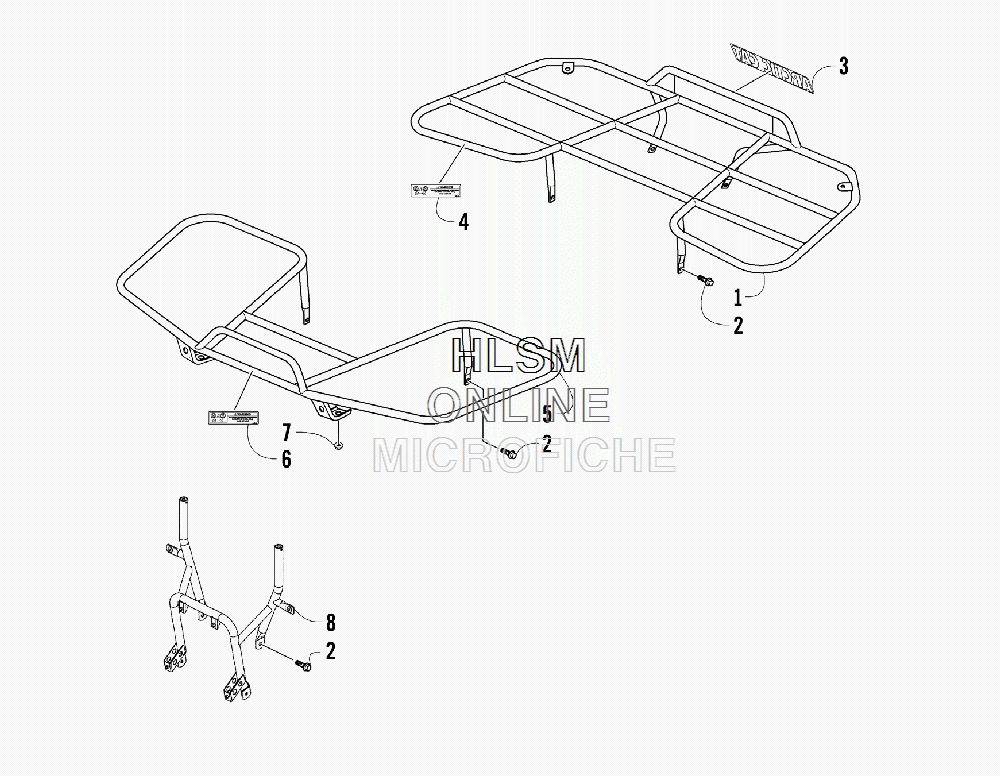

RACKS AND BUMPER ASSEMBLY для Arctic Cat 150 YOUTH RED [A2010KYC2BUSR] - 2010 года выпуска
-
№АртикулНазвание
-
13305-706 RACK, REARRACK, REAR
-
23304-543 SCREW, CAPSCREW, CAP
-
30411-814 DECAL, "ARCTIC CAT" (WHITE)DECAL, "ARCTIC CAT" (WHITE)
-
41411-444 DECAL, WARNING - LOAD - REARDECAL, WARNING - LOAD - REAR
-
53305-707 RACK, FRONTRACK, FRONT
-
61411-201 DECAL, WARNING - LOAD - FRONT (50 LB.)DECAL, WARNING - LOAD - FRONT (50 LB.)
-
73304-668 NUT, HEX-THK NYL M8X1.25 CL10 Z & YNUT, HEX-THK NYL M8X1.25 CL10 Z & Y
-
83305-708 PIPE COMP FR BUMPERPIPE COMP FR BUMPER
