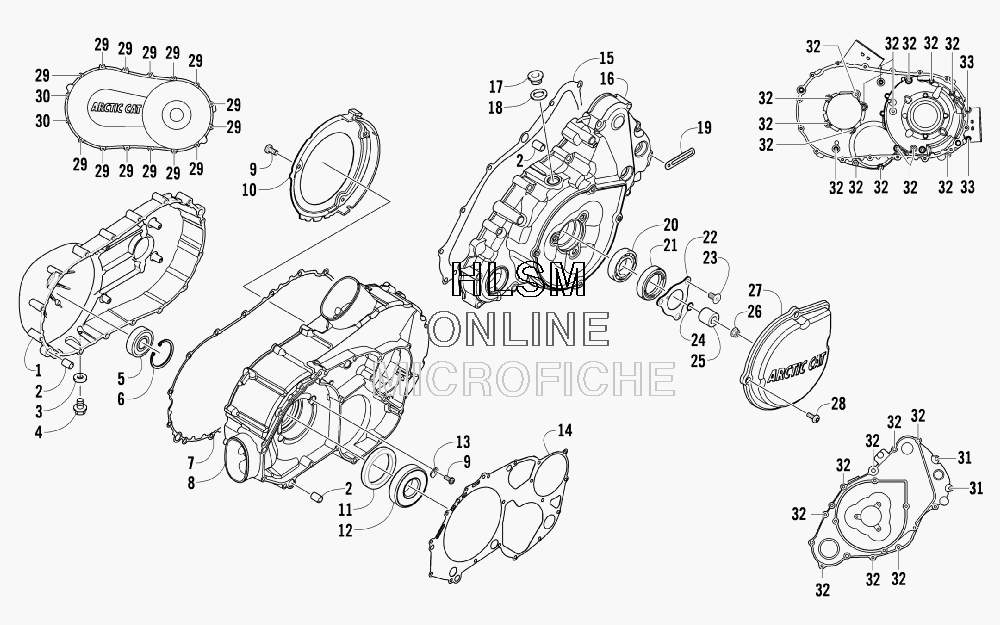

CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY для Arctic Cat PROWLER 550 (GREEN) [U2009P1O4BUSG] - 2009 года выпуска`
-
№АртикулНазвание
-
10806-088 COVER, V-BELTCOVER, V-BELT
-
20829-002 PIN, DOWELPIN, DOWEL
-
30830-013 WASHER, CRUSHWASHER, CRUSH
-
48408-812 SCREW, CAPSCREW, CAP
-
50832-060 BEARINGBEARING
-
60831-078 RING, RETAININGRING, RETAINING
-
70830-174 GASKET, V-BELT COVERGASKET, V-BELT COVER
-
80806-091 COVER, CLUTCHCOVER, CLUTCH
-
90826-029 SCREW, MACHINESCREW, MACHINE
-
100806-048 PLATE, AIR INTAKEPLATE, AIR INTAKE
-
110830-188 SEALSEAL
-
120832-047 BEARINGBEARING
-
130822-010 RETAINER, BEARINGRETAINER, BEARING
-
140830-116 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
150830-128 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
160806-082 COVER, MAGNETO - ASSEMBLYCOVER, MAGNETO - ASSEMBLY
-
170806-022 PLUGPLUG
-
180830-015 WASHER, CRUSHWASHER, CRUSH
-
193002-964 CLAMP, WIRECLAMP, WIRE
-
200832-045 BEARINGBEARING
-
210830-158 SEALSEAL
-
220805-008 RETAINER, SEALRETAINER, SEAL
-
230826-031 SCREW, MACHINESCREW, MACHINE
-
240830-108 O-RINGO-RING
-
250820-061 BUSHINGBUSHING
-
260827-008 NUTNUT
-
270820-062 COVER, MAGNETOCOVER, MAGNETO
-
288468-616 SCREW, MACH-TSPNH M6X1.0X16 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X16 CL8.8 BLK
-
298468-645 SCREW, MACH-TSPNH M6X1.0X45 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X45 CL8.8 BLK
-
308468-655 SCREW, MACH-TSPNH M6X1.0X55 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X55 CL8.8 BLK
-
318468-625 SCREW, MACH-TSPNH M6X1.0X25 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X25 CL8.8 BLK
-
328468-640 SCREW, MACH-TSPNH M6X1.0X40 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X40 CL8.8 BLK
-
338468-675 SCREW, MACH-TSPNH M6X1.0X75 CL8.8 BLKSCREW, MACH-TSPNH M6X1.0X75 CL8.8 BLK
