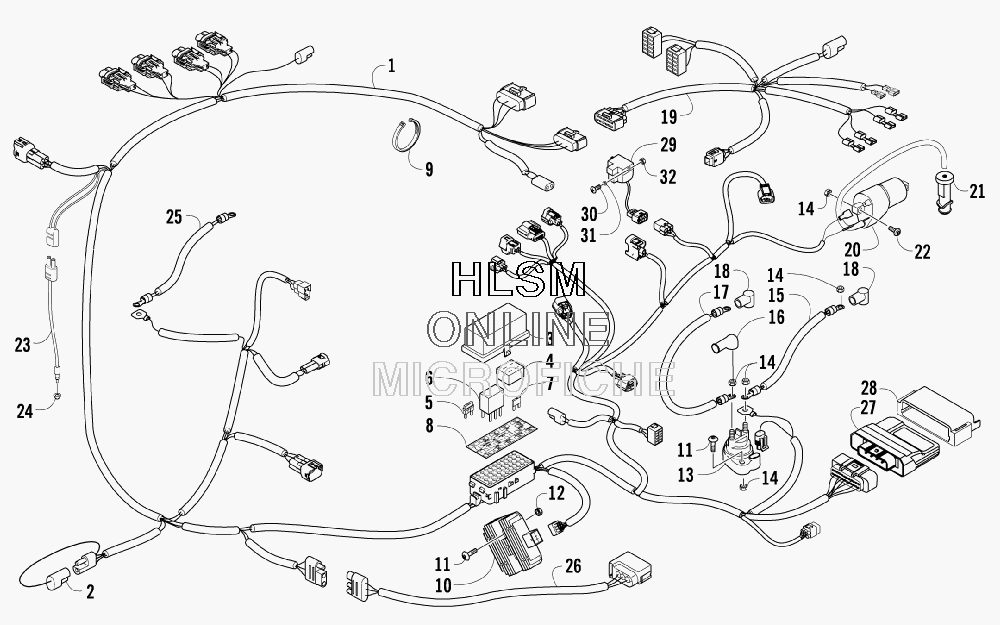

WIRING HARNESS ASSEMBLY для Arctic Cat PROWELER 700 XT (RED) [U2009P2T4EUSR] - 2009 года выпуска
-
№АртикулНазвание
-
10486-289 HARNESS, MAIN (INC. 2-8)HARNESS, MAIN (INC. 2-8)
-
20486-164 TETHER, ACCESSORY CONNECTORTETHER, ACCESSORY CONNECTOR
-
30530-008 COVER, FUSE BLOCKCOVER, FUSE BLOCK
-
40430-037 HOLDER, FUSEHOLDER, FUSE
-
50430-034 DIODEDIODE
-
60430-045 RELAY (4-PIN) - 20 AMPRELAY (4-PIN) - 20 AMP
-
70430-032 FUSE - 10 AMPFUSE - 10 AMP
-
70430-031 FUSE - 15 AMPFUSE - 15 AMP
-
70430-030 FUSE - 30 AMPFUSE - 30 AMP
-
81411-526 DECAL, FUSE BLOCKDECAL, FUSE BLOCK
-
90123-903 CABLE TIE - 11.5 IN.CABLE TIE - 11.5 IN.
-
100824-037 REGULATOR, VOLTAGE (W/TACH SIGNAL)REGULATOR, VOLTAGE (W/TACH SIGNAL)
-
118476-625 SCREW, MACHINESCREW, MACHINE
-
128424-602 NUTNUT
-
130445-058 SOLENOIDSOLENOID
-
140623-038 NUT W/WASHERNUT W/WASHER
-
150445-061 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
160645-327 BOOT, TERMINALBOOT, TERMINAL
-
170445-049 CABLE, BATTERY/SOLENOIDCABLE, BATTERY/SOLENOID
-
180645-019 BOOT, TERMINALBOOT, TERMINAL
-
190486-290 HARNESS, CONSOLEHARNESS, CONSOLE
-
200824-043 COIL, IGNITION - ASSEMBLYCOIL, IGNITION - ASSEMBLY
-
210824-049 CAP, SPARK PLUGCAP, SPARK PLUG
-
228476-620 SCREW, MACHINESCREW, MACHINE
-
230409-009 SWITCH, BRAKE - ASSEMBLYSWITCH, BRAKE - ASSEMBLY
-
240402-991 RETAINER, BRAKE SWITCHRETAINER, BRAKE SWITCH
-
250445-050 CABLE, BATTERY/ENGINECABLE, BATTERY/ENGINE
-
260486-176 HARNESS ADAPTER, TAILLIGHTHARNESS ADAPTER, TAILLIGHT
-
270530-029 ECUECU
-
280430-076 CUSHION, ECUCUSHION, ECU
-
290409-064 SWITCH, TILT SENSORSWITCH, TILT SENSOR
-
308468-425 SCREW, MACH-TSPNH M4X.7X25 CL8.8 BLKSCREW, MACH-TSPNH M4X.7X25 CL8.8 BLK
-
310123-802 WASHERWASHER
-
320423-493 NUT W/WASHERNUT W/WASHER
