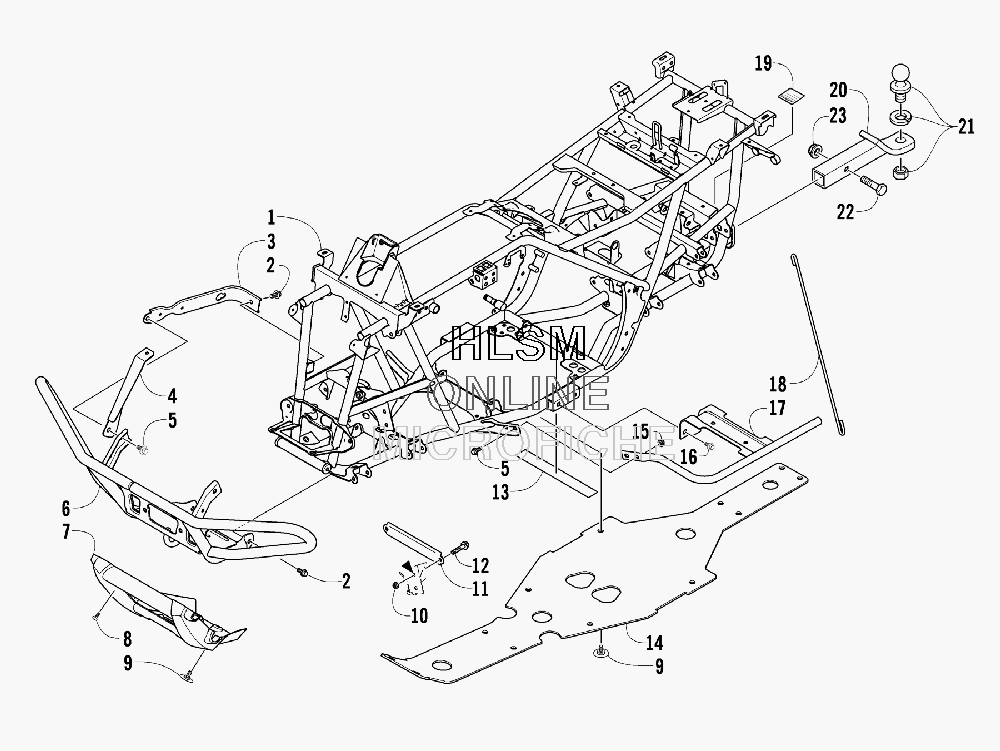

FRAME AND RELATED PARTS для Arctic Cat 700 H1 (BLACK - LE) [A2009IBT4EUSQ] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    2506-541 FRAME, MAIN-BLACK (450/650/700)
    FRAME, MAIN-BLACK (450/650/700)
  • 2
    8409-020 SCREW, CAP
    SCREW, CAP
  • 3
    1506-596 CHANNEL-BLACK, BUMPER MOUNTING - RIGHT
    CHANNEL-BLACK, BUMPER MOUNTING - RIGHT
  • 3
    0506-653 CHANNEL-BLACK, BUMPER MOUNTING - LEFT
    CHANNEL-BLACK, BUMPER MOUNTING - LEFT
  • 4
    1506-562 BRACKET-BLACK, MOUNTING - BUMPER - RIGHT
    BRACKET-BLACK, MOUNTING - BUMPER - RIGHT
  • 4
    1506-563 BRACKET-BLACK, MOUNTING - BUMPER - LEFT
    BRACKET-BLACK, MOUNTING - BUMPER - LEFT
  • 5
    8408-816 SCREW, CAP
    SCREW, CAP
  • 6
    1506-855 BUMPER, FRONT-BLACK
    BUMPER, FRONT-BLACK
  • 7
    1406-360 FASCIA, BUMPER - FRONT - BLACK
    FASCIA, BUMPER - FRONT - BLACK
  • 8
    0423-419 SCREW, MACHINE-BLACK
    SCREW, MACHINE-BLACK
  • 9
    0423-101 SCREW, SHOULDER
    SCREW, SHOULDER
  • 10
    0423-744 NUT, LOCK
    NUT, LOCK
  • 11
    1506-429 BRACE, A-ARM-BLACK
    BRACE, A-ARM-BLACK
  • 12
    8409-025 SCREW, CAP
    SCREW, CAP
  • 13
    0406-289 PAD, FRAME
    PAD, FRAME
  • 14
    1406-030 PANEL, BELLY
    PANEL, BELLY
  • 15
    8424-802 NUT
    NUT
  • 16
    8409-016 SCREW, CAP
    SCREW, CAP
  • 17
    1506-380 FOOTREST-BLACK - RIGHT
    FOOTREST-BLACK - RIGHT
  • 17
    1506-379 FOOTREST-BLACK - LEFT
    FOOTREST-BLACK - LEFT
  • 18
    2506-423 ROD, SUPPORT-BLACK
    ROD, SUPPORT-BLACK
  • 19
    1411-077 DECAL, WARNING - TOWING (1050 LB)
    DECAL, WARNING - TOWING (1050 LB)
  • 20
    0541-714 MOUNT, HITCH
    MOUNT, HITCH
  • 21
    0436-715 KIT, BALL HITCH
    KIT, BALL HITCH
  • 22
    0423-693 SCREW, CAP
    SCREW, CAP
  • 23
    0423-690 NUT, LOCK
    NUT, LOCK
