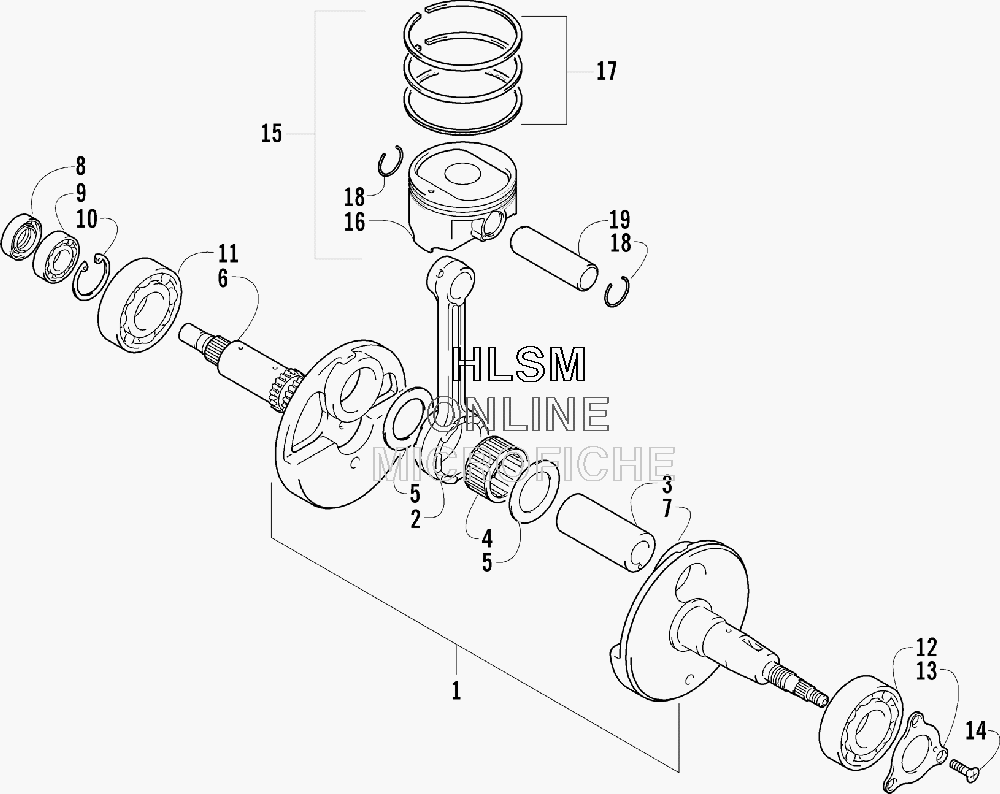

CRANKSHAFT ASSEMBLY для Arctic Cat 500 MANUAL TRANSMISSION (RED) [A2009IBM4AUSR] - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    3402-811 CRANKSHAFT ASSEMBLY (INC. 2-7)
    CRANKSHAFT ASSEMBLY (INC. 2-7)
  • 2
    3402-376 ...ROD, CONNECTING
    ...ROD, CONNECTING
  • 3
    3402-377 ...PIN, CRANK
    ...PIN, CRANK
  • 4
    3402-717 ...BEARING
    ...BEARING
  • 5
    3423-351 ...WASHER
    ...WASHER
  • 6
    3402-812 ...CRANKSHAFT - RIGHT
    ...CRANKSHAFT - RIGHT
  • 7
    3402-705 ...CRANKSHAFT - LEFT
    ...CRANKSHAFT - LEFT
  • 8
    3402-387 SEAL, OIL
    SEAL, OIL
  • 9
    3402-384 BEARING - RIGHT
    BEARING - RIGHT
  • 10
    3423-355 CIRCLIP
    CIRCLIP
  • 11
    3402-058 BEARING - MIDDLE
    BEARING - MIDDLE
  • 12
    3402-054 BEARING - LEFT
    BEARING - LEFT
  • 13
    3402-188 RETAINER, OIL SEAL - LEFT
    RETAINER, OIL SEAL - LEFT
  • 14
    3423-018 SCREW, MACHINE
    SCREW, MACHINE
  • 15
    3402-788 PISTON SET (INC. 16-18)
    PISTON SET (INC. 16-18)
  • 16
    3402-719 ...PISTON
    ...PISTON
  • 17
    3402-720 ...RING SET, PISTON
    ...RING SET, PISTON
  • 18
    3423-344 ...CIRCLIP
    ...CIRCLIP
  • 19
    3402-375 PIN
    PIN
