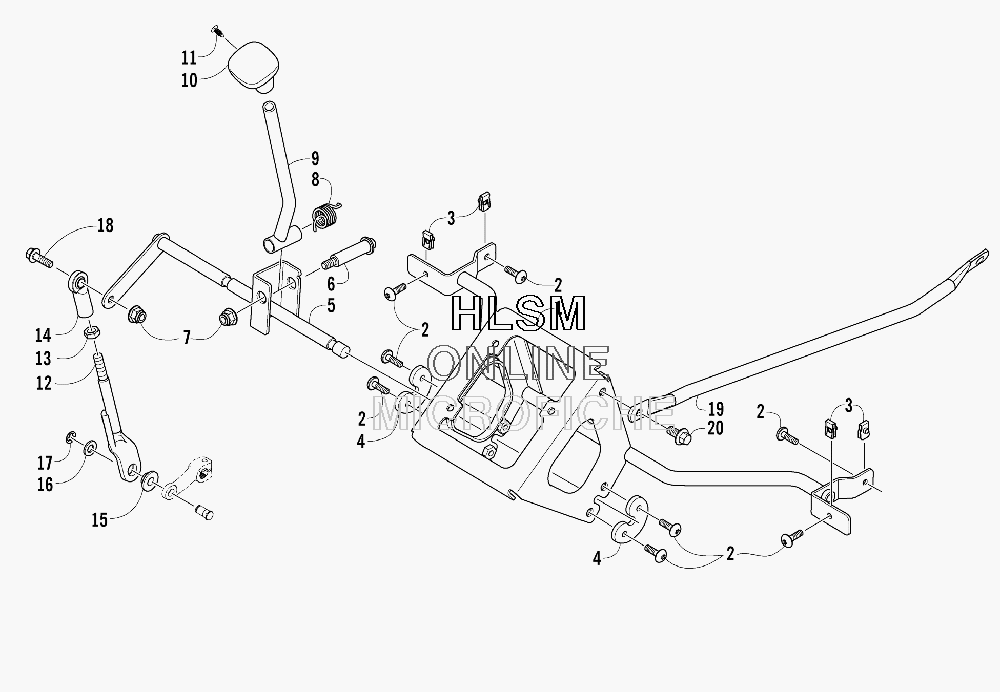

SHIFTER ASSEMBLY для Arctic Cat PROWLER XTX (SILVER) [U2008P2T4EUSL] - 2008 года выпуска`
-
№АртикулНазвание
-
11506-525 MOUNT, SHIFTER-PAINTED BLACKMOUNT, SHIFTER-PAINTED BLACK
-
28476-616 SCREW, MACHINESCREW, MACHINE
-
30423-577 CLIP, UCLIP, U
-
41402-275 RETAINER, SHIFT LINKAGERETAINER, SHIFT LINKAGE
-
51506-811 AXLE, SHIFT-BLACKAXLE, SHIFT-BLACK
-
60423-505 SCREW, SHOULDERSCREW, SHOULDER
-
78424-802 NUT, FLANGENUT, FLANGE
-
81402-668 SPRING, SHIFTSPRING, SHIFT
-
91502-283 LEVER, SHIFT-BLACKLEVER, SHIFT-BLACK
-
101402-566 KNOB, SHIFTKNOB, SHIFT
-
110623-269 CLIP, RETAINERCLIP, RETAINER
-
120541-527 LINKAGE, SHIFT-PAINTED BLKLINKAGE, SHIFT-PAINTED BLK
-
130123-144 NUT, JAMNUT, JAM
-
140423-686 ROD ENDROD END
-
150423-091 BUSHING, SHIFTBUSHING, SHIFT
-
160623-094 WASHERWASHER
-
170124-057 E-RINGE-RING
-
188408-825 SCREW, CAPSCREW, CAP
-
191502-264 SUPPORT, SHIFTER-PAINTED BLACKSUPPORT, SHIFTER-PAINTED BLACK
-
208408-816 SCREW, CAPSCREW, CAP
