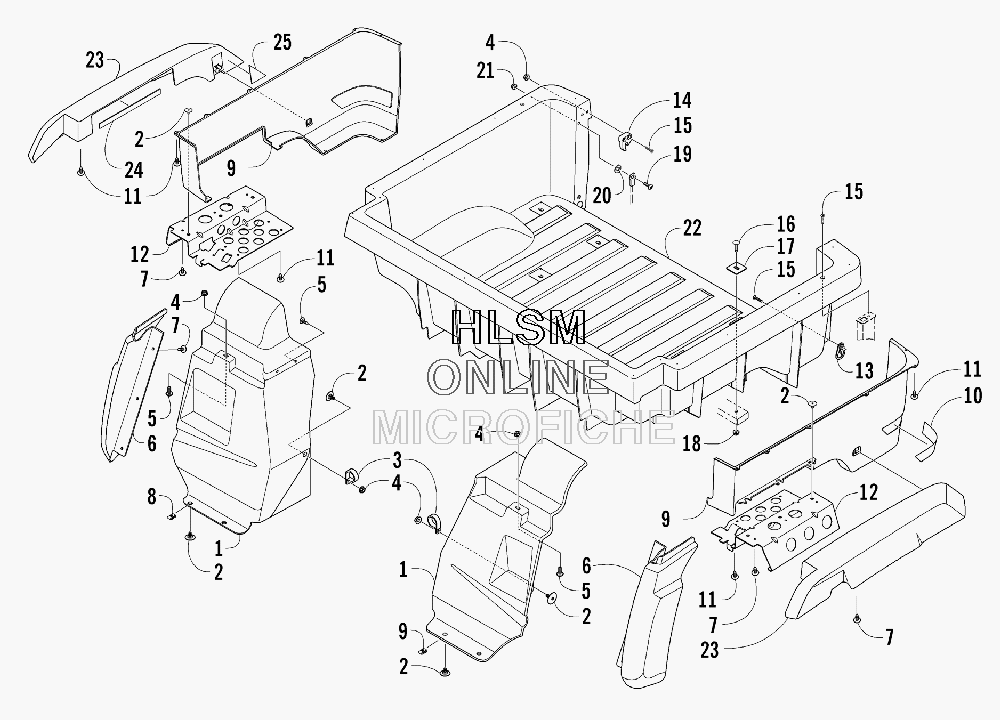

REAR BODY PANEL AND CARGO BOX ASSEMBLY для Arctic Cat PROWLER XT (RED) [U2008P2S4BUSR] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    2406-070 PANEL, SPLASH - REAR - RIGHT
    PANEL, SPLASH - REAR - RIGHT
  • 1
    2406-071 PANEL, SPLASH - REAR - LEFT
    PANEL, SPLASH - REAR - LEFT
  • 2
    0423-101 SCREW, BODY
    SCREW, BODY
  • 3
    0423-403 CLAMP, TUBE
    CLAMP, TUBE
  • 4
    8424-602 NUT, HEX
    NUT, HEX
  • 5
    8476-616 SCREW, MACHINE
    SCREW, MACHINE
  • 6
    1406-796 FENDER, REAR - LOWER - RIGHT (RED)
    FENDER, REAR - LOWER - RIGHT (RED)
  • 6
    1406-795 FENDER, REAR - LOWER - LEFT (RED)
    FENDER, REAR - LOWER - LEFT (RED)
  • 6
    1406-810 FENDER, REAR - LOWER - RIGHT (GREEN)
    FENDER, REAR - LOWER - RIGHT (GREEN)
  • 6
    1406-809 FENDER, REAR - LOWER - LEFT (GREEN)
    FENDER, REAR - LOWER - LEFT (GREEN)
  • 6
    1406-802 FENDER, REAR - LOWER - RIGHT (CAT GREEN)
    FENDER, REAR - LOWER - RIGHT (CAT GREEN)
  • 6
    1406-801 FENDER, REAR - LOWER - LEFT (CAT GREEN)
    FENDER, REAR - LOWER - LEFT (CAT GREEN)
  • 6
    2506-618 FENDER, REAR - LOWER - RIGHT (M4 CAMO)
    FENDER, REAR - LOWER - RIGHT (M4 CAMO)
  • 6
    2506-619 FENDER, REAR - LOWER - LEFT (M4 CAMO)
    FENDER, REAR - LOWER - LEFT (M4 CAMO)
  • 7
    0623-784 SCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLK
    SCREW, SELF TAP-TSTRH #10-12X3/4 TP A BLK
  • 8
    0423-577 CLIP, U
    CLIP, U
  • 9
    1406-762 PANEL, BOX - RIGHT (INC. 10)-BLACK
    PANEL, BOX - RIGHT (INC. 10)-BLACK
  • 9
    1406-761 PANEL, BOX - LEFT (INC. 10)-BLACK
    PANEL, BOX - LEFT (INC. 10)-BLACK
  • 9
    2506-788 PANEL, BOX - RIGHT (INC. 10) (M4 CAMO)
    PANEL, BOX - RIGHT (INC. 10) (M4 CAMO)
  • 9
    2506-789 PANEL, BOX - LEFT (INC. 10) (M4 CAMO)
    PANEL, BOX - LEFT (INC. 10) (M4 CAMO)
  • 10
    1411-128 ...DECAL, REFLECTOR - REAR - RIGHT
    ...DECAL, REFLECTOR - REAR - RIGHT
  • 10
    1411-129 ...DECAL, REFLECTOR - REAR - LEFT
    ...DECAL, REFLECTOR - REAR - LEFT
  • 11
    0423-342 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 12
    1506-776 BRACKET, FENDER SUPPORT-BLACK - RIGHT
    BRACKET, FENDER SUPPORT-BLACK - RIGHT
  • 12
    1506-777 BRACKET, FENDER SUPPORT-BLACK - LEFT
    BRACKET, FENDER SUPPORT-BLACK - LEFT
  • 13
    1506-539 BRACKET, TAILGATE-BLACK
    BRACKET, TAILGATE-BLACK
  • 14
    2506-664 STRIKER, TAILGATE - RIGHT
    STRIKER, TAILGATE - RIGHT
  • 14
    2506-665 STRIKER, TAILGATE - LEFT
    STRIKER, TAILGATE - LEFT
  • 15
    8474-630 SCREW, MACH-TSFH M6X1.0X30 CL8.8 BLK
    SCREW, MACH-TSFH M6X1.0X30 CL8.8 BLK
  • 16
    0423-623 BOLT, CARRIAGE-M8-1.25X30-BLK RIE
    BOLT, CARRIAGE-M8-1.25X30-BLK RIE
  • 17
    1506-933 PLATE, RETAINING-BLACK (MATTE)
    PLATE, RETAINING-BLACK (MATTE)
  • 18
    8424-802 NUT, HEX
    NUT, HEX
  • 19
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    8050-217 WASHER
    WASHER
  • 21
    0624-250 NUT, LOCK
    NUT, LOCK
  • 22
    2406-417 BOX, REAR CARGO
    BOX, REAR CARGO
  • 23
    2506-678 FENDER, REAR - ASSEMBLY - UPPER - RIGHT (INC. 24-25) (RED)
    FENDER, REAR - ASSEMBLY - UPPER - RIGHT (INC. 24-25) (RED)
  • 23
    2506-679 FENDER, REAR - ASSEMBLY - UPPER - LEFT (INC. 24-25) (RED)
    FENDER, REAR - ASSEMBLY - UPPER - LEFT (INC. 24-25) (RED)
  • 23
    2506-660 FENDER, REAR - ASSEMBLY - UPPER - RIGHT (INC. 24-25) (GREEN)
    FENDER, REAR - ASSEMBLY - UPPER - RIGHT (INC. 24-25) (GREEN)
  • 23
    2506-661 FENDER, REAR - ASSEMBLY - UPPER - LEFT (INC. 24-25) (GREEN)
    FENDER, REAR - ASSEMBLY - UPPER - LEFT (INC. 24-25) (GREEN)
  • 23
    2506-680 FENDER, REAR - ASSEMBLY - UPPER - RIGHT (INC. 24-25) (CAT GREEN)
    FENDER, REAR - ASSEMBLY - UPPER - RIGHT (INC. 24-25) (CAT GREEN)
  • 23
    2506-681 FENDER, REAR - ASSEMBLY - UPPER - LEFT (INC. 24-25) (CAT GREEN)
    FENDER, REAR - ASSEMBLY - UPPER - LEFT (INC. 24-25) (CAT GREEN)
  • 23
    2506-688 FENDER, REAR - ASSEMBLY - UPPER - RIGHT (INC. 24-25) (M4 CAMO)
    FENDER, REAR - ASSEMBLY - UPPER - RIGHT (INC. 24-25) (M4 CAMO)
  • 23
    2506-689 FENDER, REAR - ASSEMBLY - UPPER - LEFT (INC. 24-25) (M4 CAMO)
    FENDER, REAR - ASSEMBLY - UPPER - LEFT (INC. 24-25) (M4 CAMO)
  • 24
    0417-007 ...STRIP, FOAM
    ...STRIP, FOAM
  • 25
    0417-008 ...PAD, FOAM
    ...PAD, FOAM
