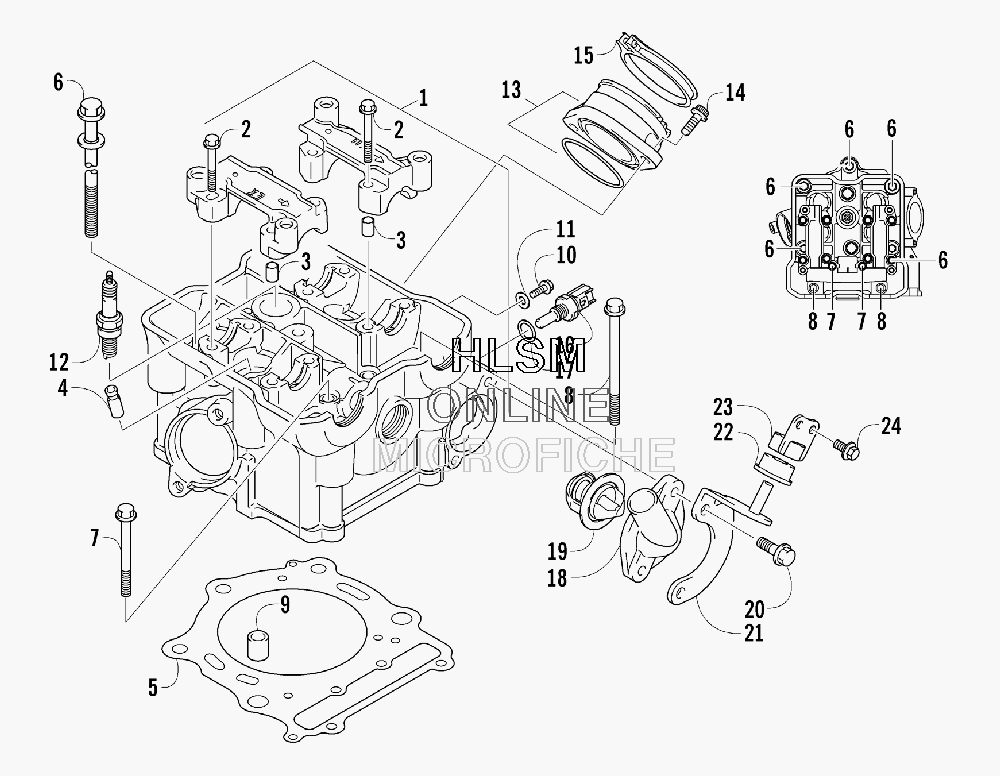

CYLINDER HEAD ASSEMBLY для Arctic Cat 700 EFI TRV CRUISER (BLUE) [A2008TCT4CUSV] - 2008 года выпуска`
-
№АртикулНазвание
-
13403-055 HEAD, CYLINDER - ASSEMBLY (INC. 2-3)HEAD, CYLINDER - ASSEMBLY (INC. 2-3)
-
23423-794 ...SCREW, CAP...SCREW, CAP
-
33423-043 ...PIN...PIN
-
43403-056 GUIDE, VALVEGUIDE, VALVE
-
53403-057 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
63423-795 SCREW, CAPSCREW, CAP
-
73006-650 SCREW, CAPSCREW, CAP
-
83423-796 SCREW, CAPSCREW, CAP
-
93423-088 PIN, DOWELPIN, DOWEL
-
103007-497 PLUG, CYLINDER HEADPLUG, CYLINDER HEAD
-
113003-290 O-RINGO-RING
-
120217-632 SPARK PLUG (NGK CR6E)SPARK PLUG (NGK CR6E)
-
133403-058 PIPE, INTAKE - ASSEMBLYPIPE, INTAKE - ASSEMBLY
-
143423-797 SCREW, CAPSCREW, CAP
-
153402-236 CLAMP, INTAKE PIPECLAMP, INTAKE PIPE
-
163530-046 SWITCH, COOLANT TEMPERATURESWITCH, COOLANT TEMPERATURE
-
173007-215 GASKET, COOLANT TEMPERATURE SWITCHGASKET, COOLANT TEMPERATURE SWITCH
-
183413-038 COVER, THERMOSTATCOVER, THERMOSTAT
-
193413-039 THERMOSTATTHERMOSTAT
-
203007-377 SCREW, CAPSCREW, CAP
-
213423-798 PLATE, ENGINE MOUNTING DAMPERPLATE, ENGINE MOUNTING DAMPER
-
223403-059 DAMPER, ENGINE MOUNTINGDAMPER, ENGINE MOUNTING
-
233403-060 STOPPER, ENGINE MOUNTINGSTOPPER, ENGINE MOUNTING
-
243007-407 SCREW, CAPSCREW, CAP
