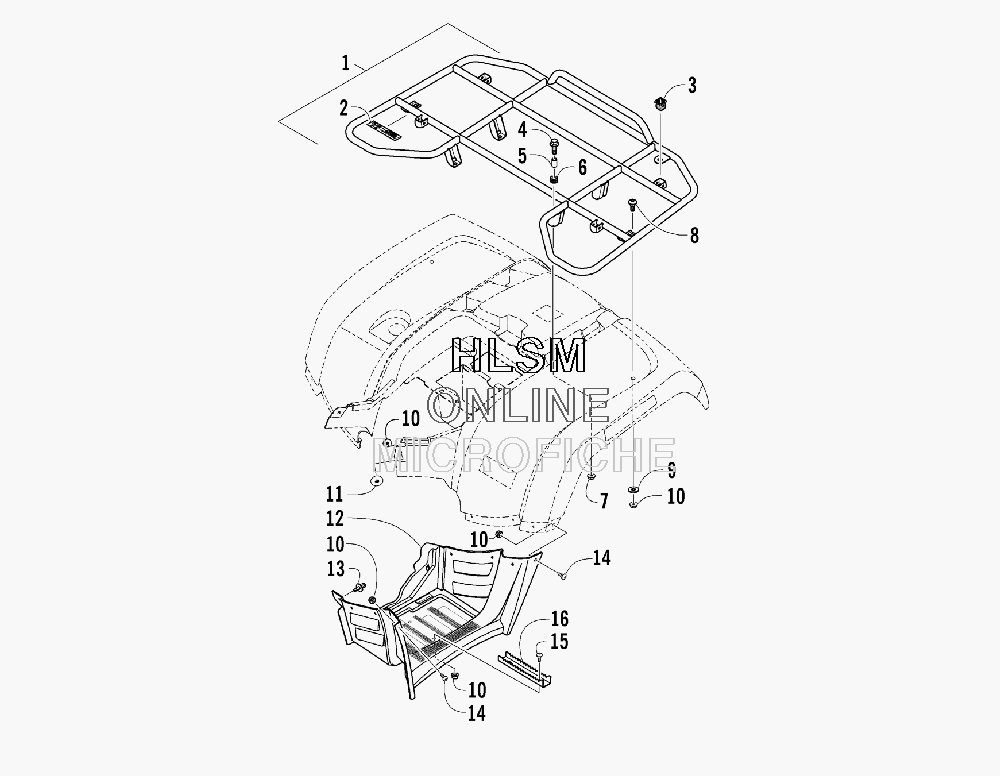

REAR RACK AND FOOTWELL ASSEMBLIES для Arctic Cat 700 EFI (RED) [A2008IBT4CUSR] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    2506-125 RACK, REAR - ASSEMBLY (INC. 2-3)
    RACK, REAR - ASSEMBLY (INC. 2-3)
  • 2
    0411-648 ...DECAL, WARNING - REAR RACK LOAD (200 LB.)
    ...DECAL, WARNING - REAR RACK LOAD (200 LB.)
  • 3
    0441-592 ...BUSHING, RACK
    ...BUSHING, RACK
  • 4
    8410-830 SCREW, CAP-HFH M8X1.25X30 CL8.8 RIE BLK
    SCREW, CAP-HFH M8X1.25X30 CL8.8 RIE BLK
  • 5
    0423-669 SPACER
    SPACER
  • 6
    0423-465 GROMMET
    GROMMET
  • 7
    8432-802 NUT, LOCK
    NUT, LOCK
  • 8
    0423-654 SCREW, SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK
    SCREW, SHOULDER-HFH M6-1.0 X 18 CL8.8 BLK
  • 9
    8050-222 WASHER
    WASHER
  • 10
    0423-540 NUT, LOCK
    NUT, LOCK
  • 11
    0423-101 SCREW, BODY
    SCREW, BODY
  • 12
    1406-356 FOOTWELL - RIGHT
    FOOTWELL - RIGHT
  • 12
    2406-425 FOOTWELL - LEFT
    FOOTWELL - LEFT
  • 13
    0623-362 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 14
    0423-419 SCREW, MACH-TSTRH-M6-1.0 X 16 BLACK
    SCREW, MACH-TSTRH-M6-1.0 X 16 BLACK
  • 15
    0423-355 SCREW, SHOULDER-M6-1.0 X 18-BLK
    SCREW, SHOULDER-M6-1.0 X 18-BLK
  • 16
    1506-125 FOOTPEG, BLACK
    FOOTPEG, BLACK
