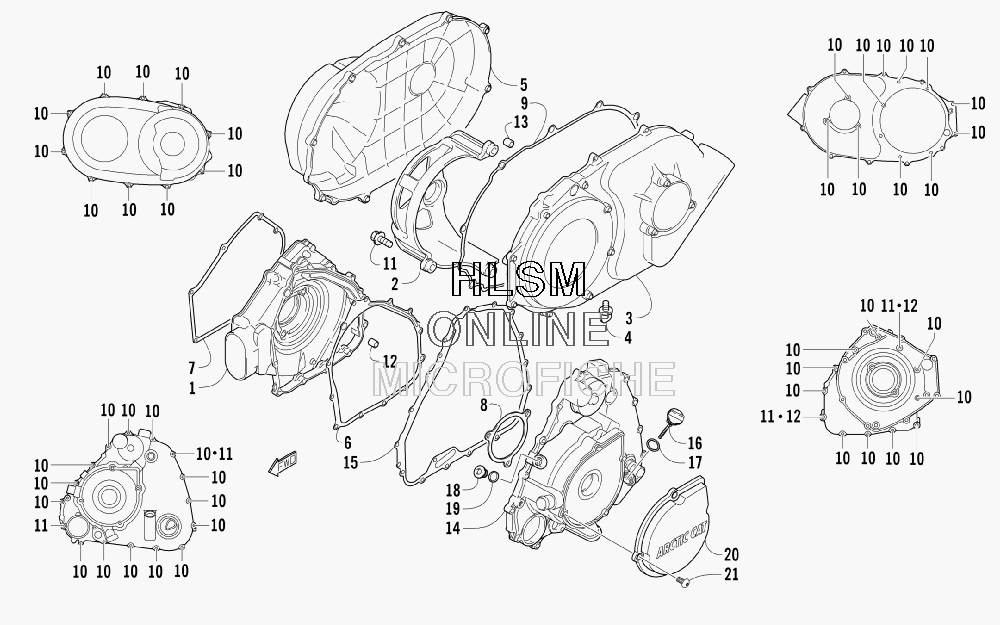

CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY для Arctic Cat 700 EFI - LE (ORANGE) [A2008IBT4CUSK] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    3403-066 COVER, CLUTCH
    COVER, CLUTCH
  • 2
    3403-067 HOUSING, V-BELT BEARING
    HOUSING, V-BELT BEARING
  • 3
    3403-068 COVER, V-BELT - INNER
    COVER, V-BELT - INNER
  • 4
    3423-800 PLUG
    PLUG
  • 5
    3403-069 COVER, V-BELT - OUTER
    COVER, V-BELT - OUTER
  • 6
    3403-070 GASKET, CLUTCH COVER
    GASKET, CLUTCH COVER
  • 7
    3403-071 GASKET, V-BELT COVER - INNER - REAR
    GASKET, V-BELT COVER - INNER - REAR
  • 8
    3403-072 GASKET, V-BELT COVER - INNER - FRONT
    GASKET, V-BELT COVER - INNER - FRONT
  • 9
    3403-073 GASKET, V-BELT COVER - OUTER
    GASKET, V-BELT COVER - OUTER
  • 10
    3007-369 BOLT
    BOLT
  • 11
    0693-327 BOLT
    BOLT
  • 12
    3004-822 PIN
    PIN
  • 13
    3423-610 PIN
    PIN
  • 14
    3403-074 COVER, MAGNETO
    COVER, MAGNETO
  • 15
    3403-075 GASKET, MAGNETO COVER
    GASKET, MAGNETO COVER
  • 16
    3402-438 GAUGE, OIL LEVEL
    GAUGE, OIL LEVEL
  • 17
    3423-055 O-RING
    O-RING
  • 18
    3402-040 PLUG, CHECK
    PLUG, CHECK
  • 19
    3403-200 GASKET, CHECK PLUG
    GASKET, CHECK PLUG
  • 20
    0820-062 COVER, MAGNETO - OUTER
    COVER, MAGNETO - OUTER
  • 21
    0826-008 SCREW, MACHINE
    SCREW, MACHINE
