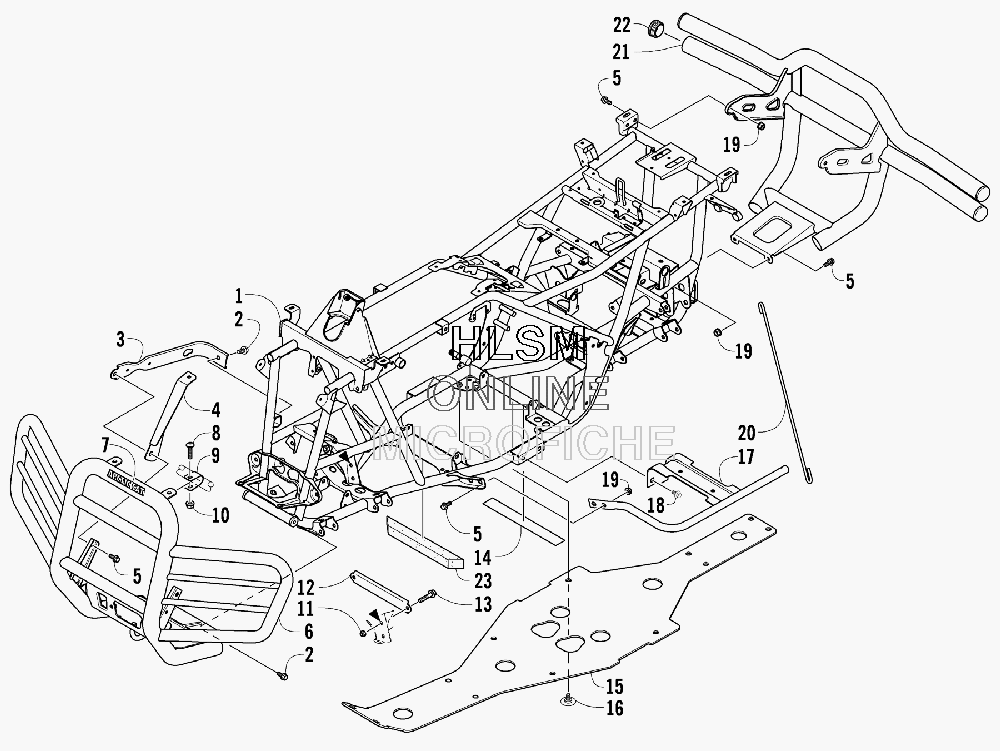

FRAME AND RELATED PARTS для Arctic Cat 501 AUTO - LE (ORANGE) [A2008IBM4BUSK] - 2008 года выпуска
-
№АртикулНазвание
-
12506-549 FRAME, MAIN (BLACK) (400/500)FRAME, MAIN (BLACK) (400/500)
-
28409-020 SCREW, CAP M10X1.25X20 CL10.9 Z & YSCREW, CAP M10X1.25X20 CL10.9 Z & Y
-
31506-596 CHANNEL, BUMPER MOUNTING (BLACK) - RIGHTCHANNEL, BUMPER MOUNTING (BLACK) - RIGHT
-
30506-653 CHANNEL, BUMPER MOUNTING (BLACK) - LEFTCHANNEL, BUMPER MOUNTING (BLACK) - LEFT
-
41506-562 BRACKET, MOUNTING - BUMPER (BLACK) - RIGHTBRACKET, MOUNTING - BUMPER (BLACK) - RIGHT
-
41506-563 BRACKET, MOUNTING - BUMPER (BLACK) - LEFTBRACKET, MOUNTING - BUMPER (BLACK) - LEFT
-
58408-816 SCREW, CAP M8X1.25X16 CL8.8 Z & YSCREW, CAP M8X1.25X16 CL8.8 Z & Y
-
62506-639 BUMPER, LE-BLACK (A BODY)BUMPER, LE-BLACK (A BODY)
-
70411-501 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
88468-840 SCREW, MACHINE M8X1.25X40 CL8.8 BLKSCREW, MACHINE M8X1.25X40 CL8.8 BLK
-
92506-641 STRAP, BUMPER SUPPORT (BLACK)STRAP, BUMPER SUPPORT (BLACK)
-
108424-805 NUT, LOCK M8X1.25 CL8 RIE BLKNUT, LOCK M8X1.25 CL8 RIE BLK
-
118428-002 NUT, LOCK CLINCH LOCK- M10-1.25 Z & YNUT, LOCK CLINCH LOCK- M10-1.25 Z & Y
-
121506-429 BRACE, A-ARM - (PTD BLACK)BRACE, A-ARM - (PTD BLACK)
-
138409-025 SCREW, CAP M10X1.25X25 CL10.9 Z & YSCREW, CAP M10X1.25X25 CL10.9 Z & Y
-
140406-289 PAD, BATTERY-TOP RRPAD, BATTERY-TOP RR
-
151406-030 PANEL, BELLYPANEL, BELLY
-
160423-101 SCREW, BODY - 6MMSCREW, BODY - 6MM
-
171506-380 FOOTREST - RIGHT - (PTD BLACK)FOOTREST - RIGHT - (PTD BLACK)
-
171506-379 FOOTREST - LEFT - (PTD BLACK)FOOTREST - LEFT - (PTD BLACK)
-
188409-016 SCREW, CAP M10X1.25X16 CL10.9 Z & YSCREW, CAP M10X1.25X16 CL10.9 Z & Y
-
198424-802 NUT, FLANGE M8X1.25 CL8 Z & YNUT, FLANGE M8X1.25 CL8 Z & Y
-
202506-423 ROD, SUPPORT - (BLACK)ROD, SUPPORT - (BLACK)
-
211506-615 BUMPER, REAR-ASSY (LE BLACK) (INC. 22)BUMPER, REAR-ASSY (LE BLACK) (INC. 22)
-
220406-130 ...CAP, BUMPER (RDR17-1420)...CAP, BUMPER (RDR17-1420)
-
231506-931 FOAM, FRAMEFOAM, FRAME
