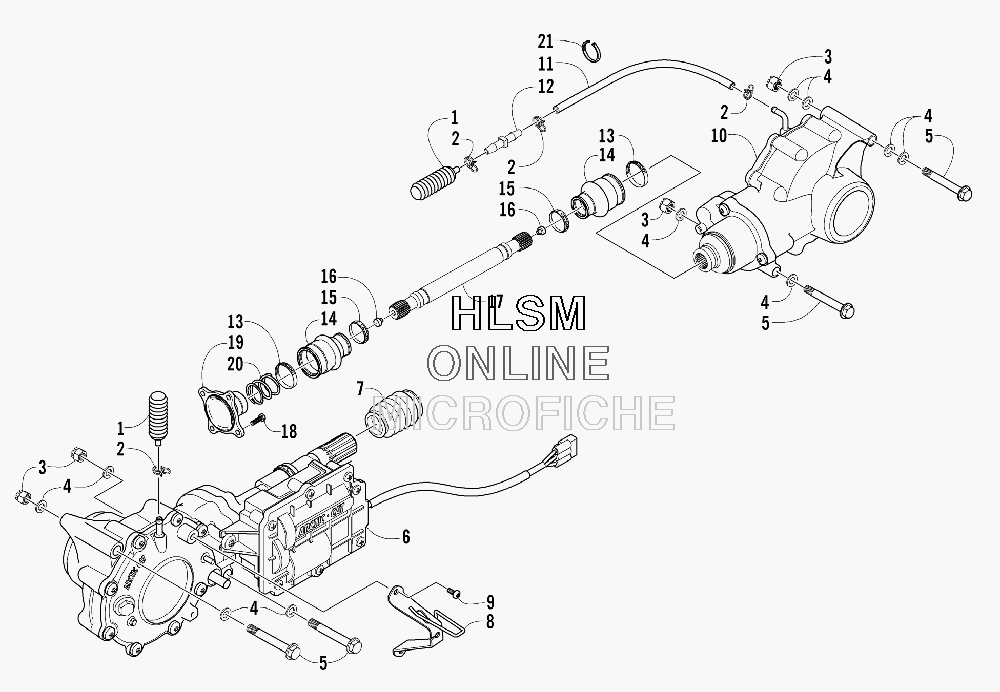

DRIVE TRAIN ASSEMBLY для Arctic Cat 500 AUTO (RED) [A2008IBM4BUSR] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    0402-147 BLADDER, GEARCASE
    BLADDER, GEARCASE
  • 2
    0423-315 CLAMP, HOSE-DOUBLE WIRE
    CLAMP, HOSE-DOUBLE WIRE
  • 3
    8428-002 NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z & Y
    NUT,HEX FLG- CLINCH LOCK- M10-1.25 Z & Y
  • 4
    0423-426 WASHER, FLAT-.438X.875X.125
    WASHER, FLAT-.438X.875X.125
  • 5
    0423-404 SCREW, CAP-HFH M10X1.25X120 CL10.9 Z & Y
    SCREW, CAP-HFH M10X1.25X120 CL10.9 Z & Y
  • 6
    1502-248 GEARCASE, FRONT(3.6 - 500 MAN LOCK)
    GEARCASE, FRONT(3.6 - 500 MAN LOCK)
  • 7
    0402-966 BOOT, PROP SHAFT (LONG)
    BOOT, PROP SHAFT (LONG)
  • 8
    0502-500 PLATE, CABLE-BLACK
    PLATE, CABLE-BLACK
  • 9
    0423-396 SCREW, SELF TAP-TSPH M6-1.0X15
    SCREW, SELF TAP-TSPH M6-1.0X15
  • 10
    1502-079 GEARCASE, REAR(3.6)-ASSY
    GEARCASE, REAR(3.6)-ASSY
  • 11
    0410-048 HOSE, VENT - 25 FT
    HOSE, VENT - 25 FT
  • 12
    0470-462 FITTING, BARB 3/16X3/16 NYLON
    FITTING, BARB 3/16X3/16 NYLON
  • 13
    0423-393 CLAMP,42MM-BOOT
    CLAMP,42MM-BOOT
  • 14
    0402-985 BOOT, COUPLER (TBX)
    BOOT, COUPLER (TBX)
  • 15
    0423-411 CLAMP, 30MM-BOOT
    CLAMP, 30MM-BOOT
  • 16
    0673-618 BUMPER, PROPELLER SHAFT
    BUMPER, PROPELLER SHAFT
  • 17
    1402-233 SHAFT, PROPELLER-REAR (500A/400)
    SHAFT, PROPELLER-REAR (500A/400)
  • 18
    8408-820 SCREW, CAP-HFH M8X1.25X20 CL8.8 Z & Y
    SCREW, CAP-HFH M8X1.25X20 CL8.8 Z & Y
  • 19
    0402-950 FLANGE, OUTPUT
    FLANGE, OUTPUT
  • 20
    1402-026 SPRING
    SPRING
  • 21
    0123-788 TIE, CABLE-8.5/7.5/7.4
    TIE, CABLE-8.5/7.5/7.4
