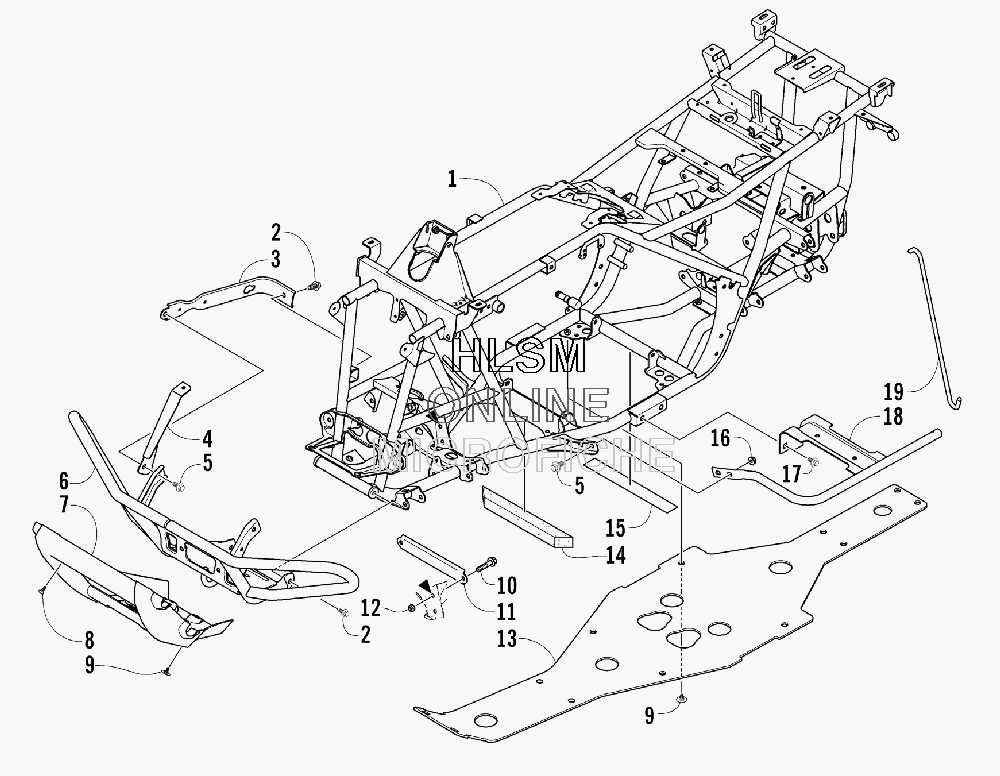

FRAME AND RELATED PARTS для Arctic Cat 500 AUTO (M4 CAMO) [A2008IBM4BUSC] - 2008 года выпуска

  • №
    Артикул
    Название
  • 1
    2506-549 FRAME, MAIN-(BLACK) (400/500)
    FRAME, MAIN-(BLACK) (400/500)
  • 2
    8409-020 SCREW, CAP M10X1.25X20 CL10.9 Z & Y
    SCREW, CAP M10X1.25X20 CL10.9 Z & Y
  • 3
    1506-596 CHANNEL, BUMPER MOUNTING (BLACK) - RIGHT
    CHANNEL, BUMPER MOUNTING (BLACK) - RIGHT
  • 3
    0506-653 CHANNEL, BUMPER MOUNTING (BLACK) - LEFT
    CHANNEL, BUMPER MOUNTING (BLACK) - LEFT
  • 4
    1506-562 BRACKET, MOUNTING - BUMPER (BLACK) - RIGHT
    BRACKET, MOUNTING - BUMPER (BLACK) - RIGHT
  • 4
    1506-563 BRACKET, MOUNTING - BUMPER (BLACK) - LEFT
    BRACKET, MOUNTING - BUMPER (BLACK) - LEFT
  • 5
    8408-816 SCREW, CAP M8X1.25X16 CL8.8 Z & Y
    SCREW, CAP M8X1.25X16 CL8.8 Z & Y
  • 6
    1506-855 BUMPER, FRONT-(BLACK) (A-BODY)
    BUMPER, FRONT-(BLACK) (A-BODY)
  • 7
    1406-360 GRILLE, BUMPER (BLACK)
    GRILLE, BUMPER (BLACK)
  • 8
    0423-419 SCREW, MACHINE M6-1.0 X 16 (BLACK)
    SCREW, MACHINE M6-1.0 X 16 (BLACK)
  • 9
    0423-101 SCREW, BODY 6MM
    SCREW, BODY 6MM
  • 10
    8409-025 SCREW, CAP M10X1.25X25 CL10.9 Z & Y
    SCREW, CAP M10X1.25X25 CL10.9 Z & Y
  • 11
    1506-429 BRACE, A-ARM PTD (BLACK)
    BRACE, A-ARM PTD (BLACK)
  • 12
    8428-002 NUT, LOCK M10-1.25 Z & Y
    NUT, LOCK M10-1.25 Z & Y
  • 13
    1406-030 PANEL, BELLY
    PANEL, BELLY
  • 14
    1506-067 FOAM, FRAME
    FOAM, FRAME
  • 15
    0406-289 PAD, BATTERY-TOP RR
    PAD, BATTERY-TOP RR
  • 16
    8424-802 NUT, FLANGE M8X1.25 CL8 Z & Y
    NUT, FLANGE M8X1.25 CL8 Z & Y
  • 17
    8409-016 SCREW, CAP M10X1.25X16 CL10.9 Z & Y
    SCREW, CAP M10X1.25X16 CL10.9 Z & Y
  • 18
    1506-380 FOOTREST - RIGHT PTD (BLACK)
    FOOTREST - RIGHT PTD (BLACK)
  • 18
    1506-379 FOOTREST - LEFT PTD (BLACK)
    FOOTREST - LEFT PTD (BLACK)
  • 19
    2506-423 ROD, SUPPORT (BLACK)
    ROD, SUPPORT (BLACK)
