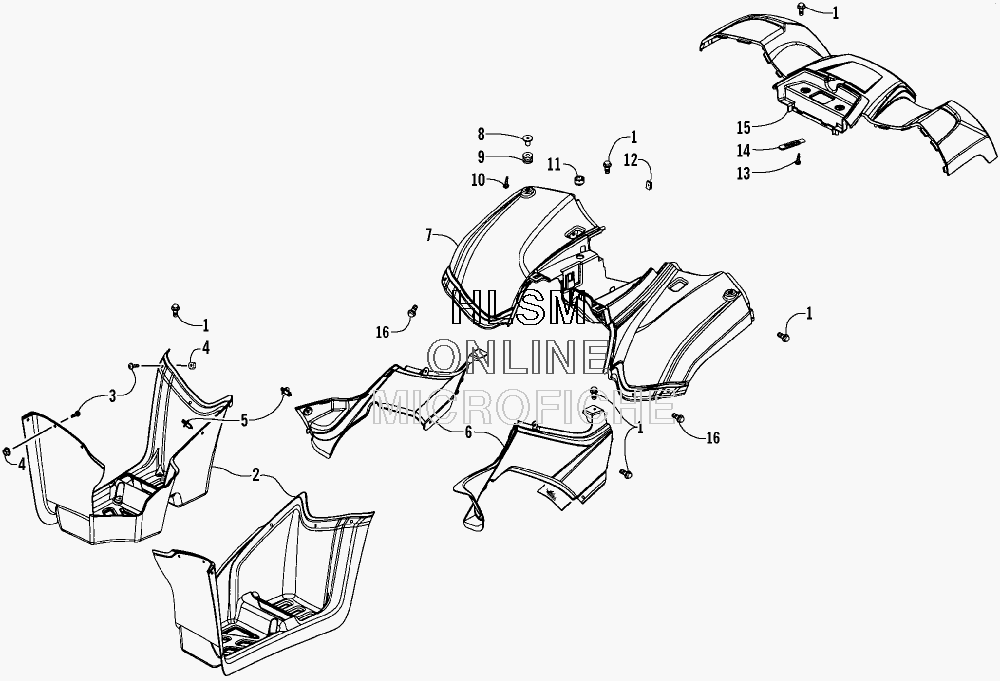

REAR BODY PANEL ASSEMBLY для Arctic Cat 250 UTILITY (RED) [A2008KUE2BUSR] - 2008 года выпуска
-
№АртикулНазвание
-
13304-587 BOLTBOLT
-
23303-991 MUDGUARD, FLOOR - RIGHTMUDGUARD, FLOOR - RIGHT
-
23303-992 MUDGUARD, FLOOR - LEFTMUDGUARD, FLOOR - LEFT
-
33303-251 SCREWSCREW
-
43304-538 NUTNUT
-
53305-448 CLIP, MUDGUARDCLIP, MUDGUARD
-
63303-997 FENDER, REAR - LOWER RIGHTFENDER, REAR - LOWER RIGHT
-
63303-998 FENDER, REAR - LOWER LEFTFENDER, REAR - LOWER LEFT
-
73303-989 FENDER, REAR - RED (RED)FENDER, REAR - RED (RED)
-
73303-990 FENDER, REAR - GREEN (GREEN)FENDER, REAR - GREEN (GREEN)
-
83303-233 COLLAR, INSERTCOLLAR, INSERT
-
93303-227 GROMMET, RUBBERGROMMET, RUBBER
-
103304-650 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
113303-232 GROMMET, RUBBERGROMMET, RUBBER
-
123304-061 NUT, CLIPNUT, CLIP
-
133304-651 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
143304-156 CLIP, WIRECLIP, WIRE
-
153303-994 MOLDING, REAR FENDER - RED (RED)MOLDING, REAR FENDER - RED (RED)
-
153304-502 MOLDING, REAR FENDER - GREEN (GREEN)MOLDING, REAR FENDER - GREEN (GREEN)
-
163304-586 BOLT W/WASHERBOLT W/WASHER
